Скачать или смотреть iScaf® - Annotations in 2D and 3D Showing Containment mesh and Shadecloth on your scaffold drawings

iScaf®

Chapters:

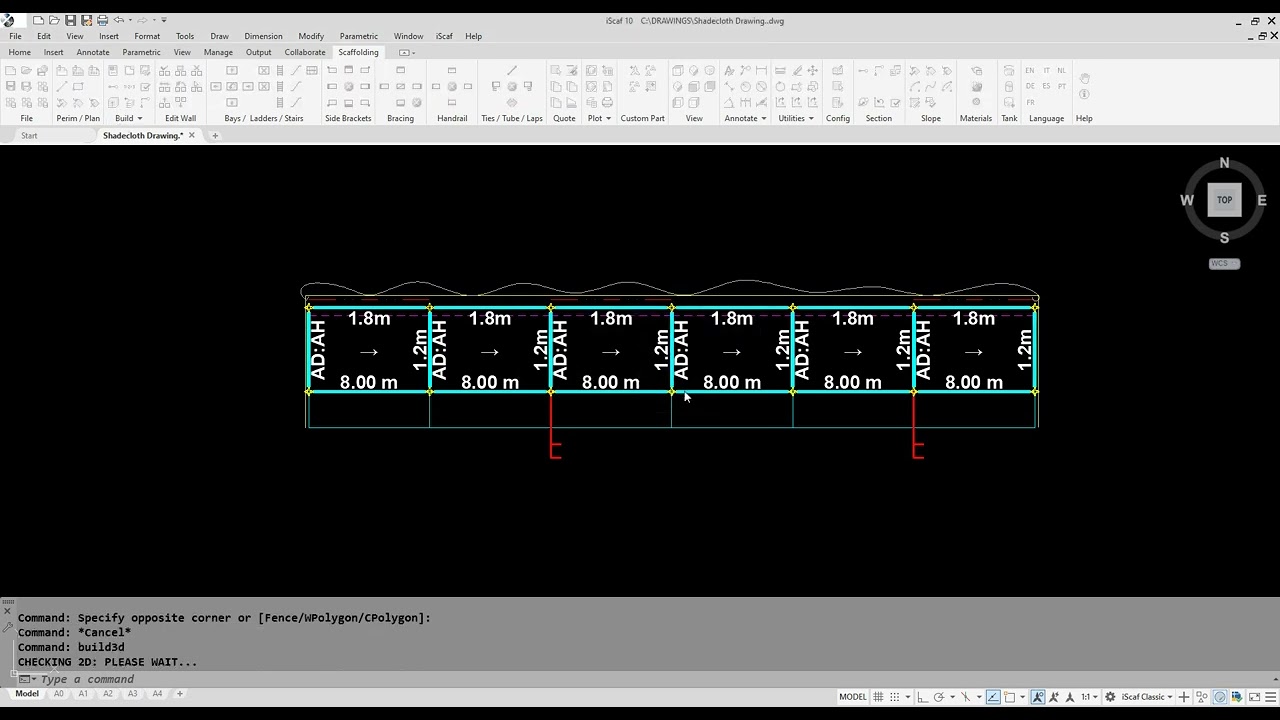

00:00 - Drawing the outline for the shade cloth in 2D.
0:59 - Inserting and positioning the shade cloth in 2D.
2:25 - Building shade cloth drawing to 3D.
2:47 - adding shade cloth to a section.
3:45 - Creating a layer for the shade cloth.
5:18 - Setup the shade cloth properties to use the new shade cloth layer.
6:12 - 3D shade cloth side view and changing visual styles.

Here are some methods to add containment mesh / shade cloth to your iScaf® drawing.

This does not add any components to you material list but just for annotation only for your iScaf® drawing.

We understand that this video may raise some questions so please do not hesitate to contact us at :

https://www.scaffoldingsoftware.com/c...

iScaf®

Original : 20230712 complete shadecloth video.mp4 by Daisy
