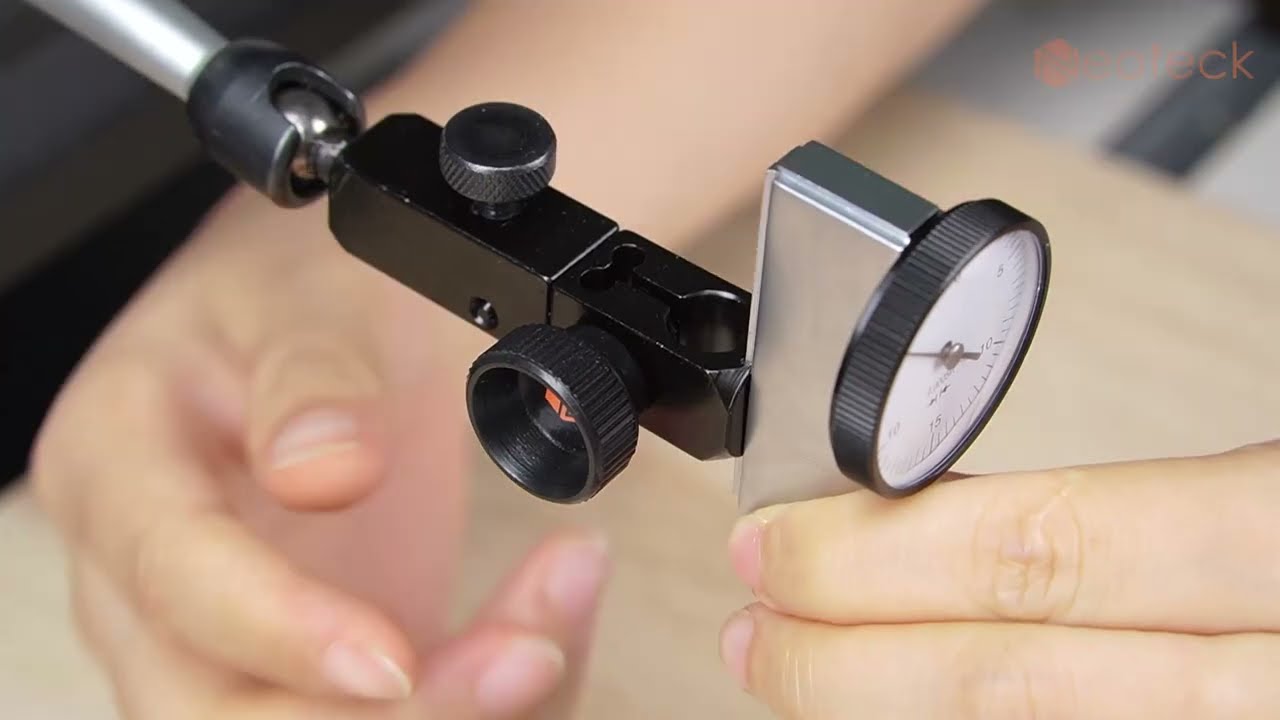

Скачать или смотреть Dial Test Indicator, Flexible Strong Magnetic Gauge Stand Base Holder + Lever Dial Test Indicator

Features:
Magnetic Base
Dimensions of 2 arms: lower arm 2.6"（6.6cm）; upper arm 2.7"（7cm）; total height 5.7"（13.6cm）
Two solid magnet surfaces with on/off control can provide a maximum tensile force of 90lbs （40kg）(90lbs tensile force requires a metal working surface/surface with a thickness of 30mm and above)
Clamping diameter 3/8 inch ( 9.525mm). used for conventional digital/dial indicator
Flexible, sturdy, precise rotary joint, can adjust any direction and position, high stability
Compatible with all most dials/digital indicators and other market indicators.
Test Indicator
Accuracy Specifications: 0.0005" accuracy and 0.03" allow you to measure perfectly
Durable Brass Finish: High-quality brass body with high anti-magnetic properties for long-term use
Padded case: The padded case makes packing and storing parts easier.


Specifications：
Magnetic Base
Weight：400g
Rally: 90lbs （40kg）
Length: 5.7"（13.6cm）
Material：Steel
Arm Adjustment：3 joints adjustable
Dial Indicator
Weight：97g
Material: stainless steel
Measuring range: 0-0.03inch
Resolution: 0.0005inch


Package Includes:
1x Magnetic Base
1x Test Indicator
1x Plastic box
