A Geneva drive is a type of indexing mechanism that converts continuous motion into intermittent motion. It's commonly used in various mechanical systems where precise intermittent movement is required, such as in machinery, packaging equipment, and indexing tables. The mechanism consists of a driving wheel (usually a cam) and a driven wheel (the Geneva wheel), which has intermittent slots or teeth.

Here's a brief description of the Geneva drive array:

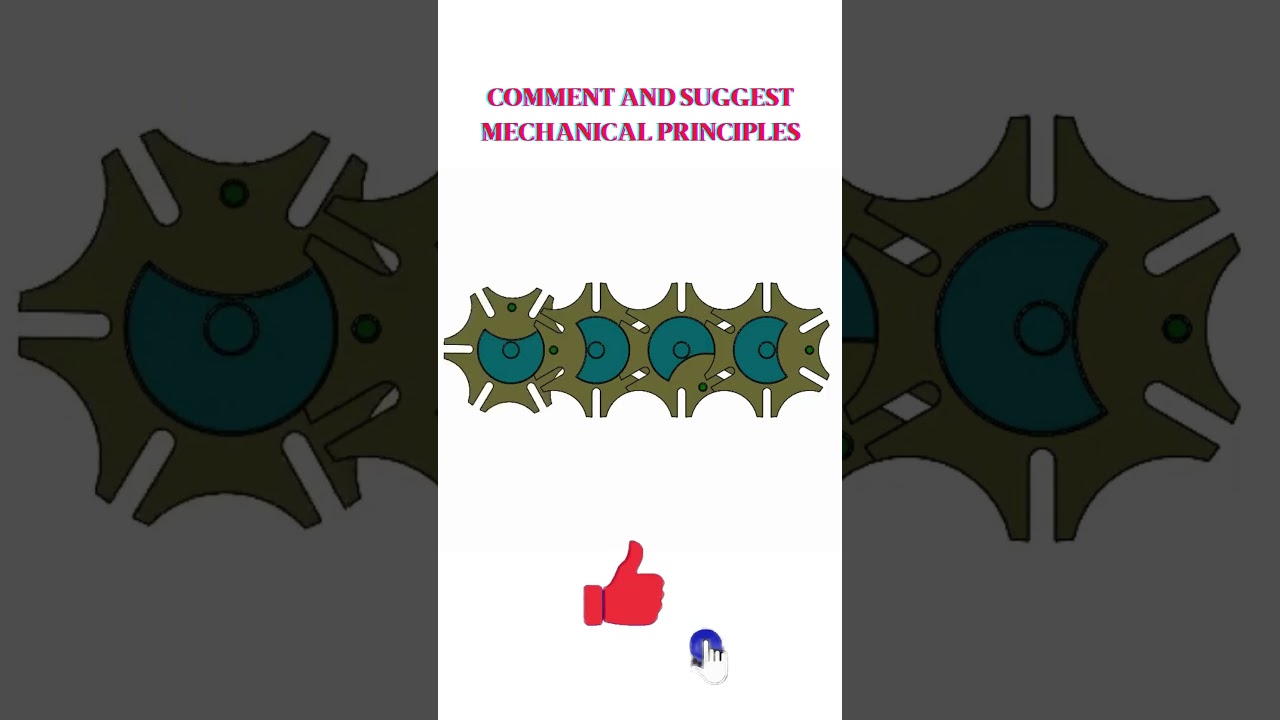

Geneva Wheel: Also known as the Maltese cross mechanism, the Geneva wheel is a circular component with evenly spaced slots or teeth around its circumference. These slots are designed to engage with a driving pin or tooth on the driving wheel.

Driving Wheel: The driving wheel is usually a rotating cam or pin that engages with the slots or teeth on the Geneva wheel. As the driving wheel rotates, it pushes the Geneva wheel, causing it to rotate intermittently.

Intermittent Motion: The Geneva drive array converts the continuous rotary motion of the driving wheel into intermittent motion of the driven wheel. The Geneva wheel advances in discrete steps, pausing between each step, which makes it suitable for applications requiring precise positioning or indexing.

Array Configuration: The Geneva drive array may consist of multiple Geneva wheel sets arranged in parallel or series, depending on the specific application requirements. Arrays can provide increased torque, higher precision, or accommodate larger loads by distributing the workload among multiple Geneva mechanisms.

Applications: Geneva drive arrays find applications in various industries, including manufacturing, automation, packaging, and printing. They are used in machines that require intermittent motion, such as indexing tables, rotary indexers, turret mechanisms, and cam-driven systems.

Overall, Geneva drive arrays offer a reliable and precise method for converting continuous motion into intermittent motion, making them indispensable in many mechanical systems where controlled movement is critical.
