Neutrik powerCon True1 top connectors are ruggedized and sealed connectors designed for the most demanding outdoor applications. powerCon True1 top products are true mains connectors with braking capacity that are IP 65 rated and constructed from high-impact materials that are UV
resistant according to UL50E. The connectors are easy to use and are extremely robust and reliable with a lifetime greater than 5,000 mating cycles. They're rated for 250 volts AC and carry current ratings up to 20 amps. The system includes locking cable connectors, Inlet and outlet connectors
and rubber sealing covers that maintain the high level of protection while unmated.

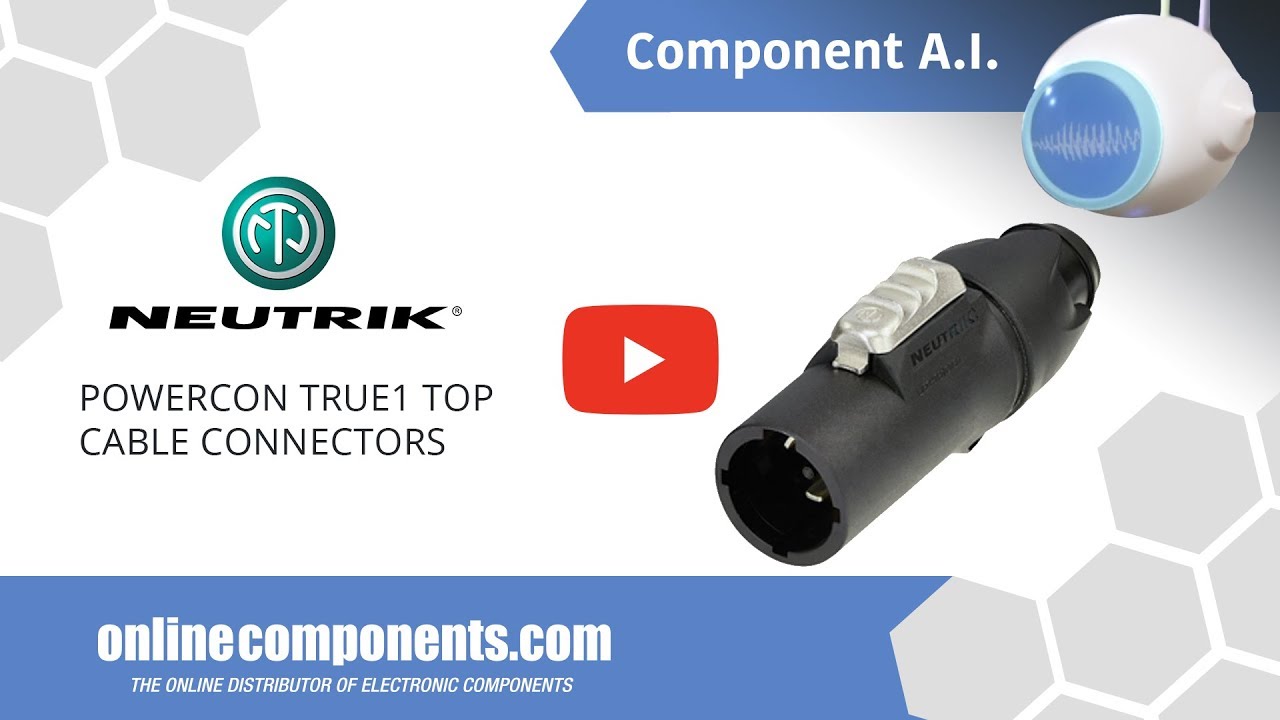

Neutrik powerCON TRUE1 TOP Cable Connectors provide true outdoor protection. These environmentally sealed connectors are highly requested for heavyduty and harsh environment applications of entertainment equipment like PA systems, signs and LED screens or lightings.
Neutrik took up the challenge and developed a new line of TRUE OUTDOOR PROTECTION (TOP) products for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These ruggedized sealed connectors feature not only IP protection but also UV resistance approved according to UL50E.

Other features include:
1 - True mains connector with breaking capacity (CBC)

2 - Designed to be engaged and disengaged in normal use when live or under load

3 - Lockable 20 A (16 A VDE) single phase connector

4 - Complete system with inlet and outlet connectors

5 - Outdoor protection acc. IP65 and UL50E enclosure type 4

6 - Uses high impact, UV resistant materials per UL
