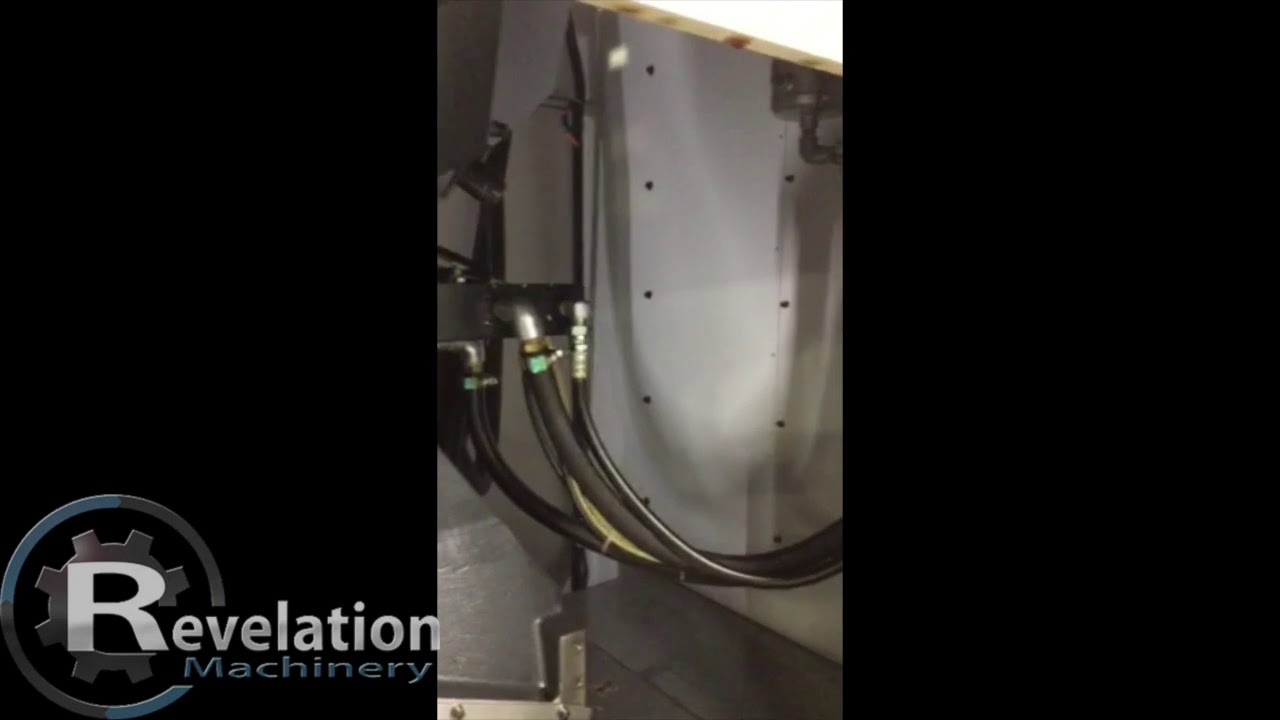

Скачать или смотреть BROTHER SPEEDIO M140X1 5-AXIS VERTICAL MACHINING CENTER, 2014

Machine Type: VMC - CNC
Make: Brother
Model: Speedio M140X1
Year: 2014

SPECIFICATIONS

Table Size: 57.48″ x 20.08″
Table Load Capacity: 1760 lbs
Distance from Spindle Nose to Table Top: 7.09”min./ 27.17”max.
X Axis Travel: 7.9″
Y Axis Travel: 17.3″
Z Axis Travel: 12.0″
A Axis Travel: 5 – -9 deg.
C Axis Travel: 360 deg.
Distnace Between Table Top and Spindle Nose End: 3.9 – 15.9”
Work Area Size: D5.5
Max Table Load: 88 lbs
Taper: 30
Rapid Traverse Rates (X,Y,Z): 1969 IPM
Magazine Capacity: 22 ATC
Chip-to-Chip / Tool-to-Tool Change Time: 1.4sec. / .9sec
Spindle Speed: 16,000 RPM

EQUIPPED WITH

Brother CNC-C00 Control with Built-In PLC
5-Axis Machining
Thru spindle coolant
3 Jaw Set - Tru Scr Chucks - Bison 6" Fine ADJ (installed)
All Tooling Pictured (thru spindle coolant tooling)
