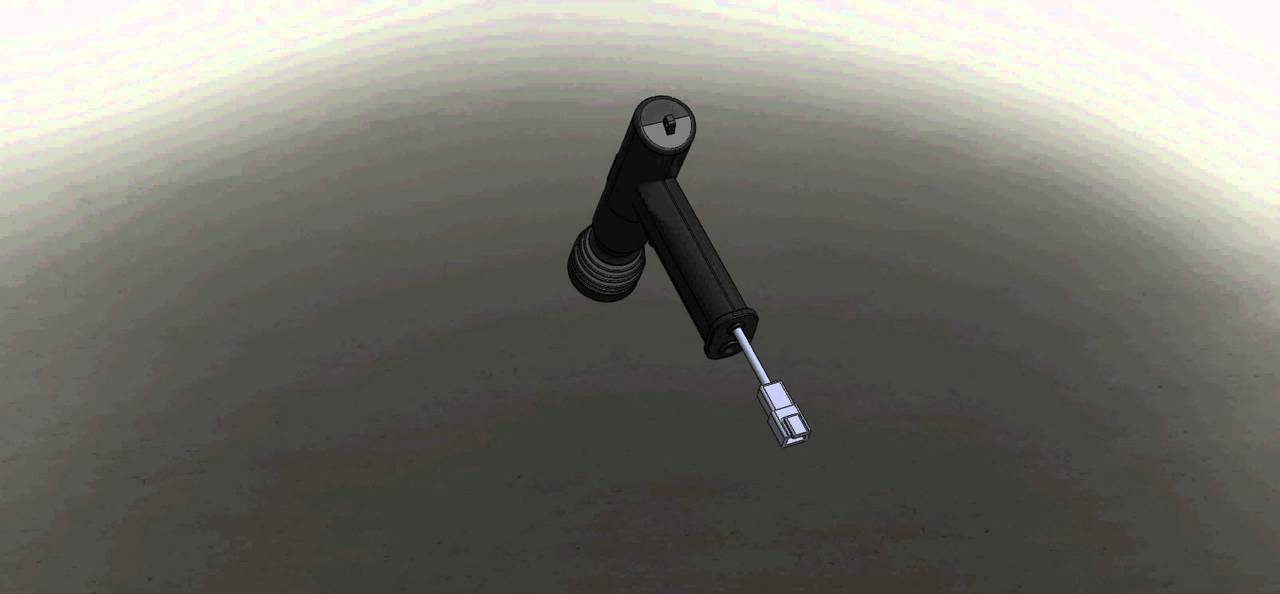

360 degree view of the HL-85-10W1 LED Handheld Spotlight
This lightweight, ultra rugged, ergonomic handheld Magnalight 10 Watt LED spotlight operates on any voltage ranging from 9 to 32 volts DC. The Magnalight HL-85-10W-1-D handheld LED spotlight ships with a detachable 16 foot coil cord with cigarette plug and a patented 10 Watt LED reflector assembly packaged in a machined aluminum head. The patented LED reflector configuration produces a bright, white beam 800 foot long and 175 feet wide. This 10 watt LED light has a pistol grip format, weighs 10 ounces and draws less than 1 amp on 12 volts and less than .5 amp on 24 volts. The LED is rated for 50,000 life hours, which translates into approximately 5.5 years of continuous operation. Backed by a 3 year warranty, our new Magnalight handheld LED spotlight is ideal for work, security, military applications, search and rescue, hunting and spotting. The HL-85-10W-1-D is equipped with an inline dimmer switch (PWM) that controls the brightness of the light emitted by the LED head. The operator simply turns the dial to adjust the brightness.



We have had a lot of demand from hunters and other operators looking for dimmable handheld spotlights. We use an encapsulated, inline pulse width modulation controller to dim the LED light. The operator can select any level of brightness from 0 percent to 100 percent light output.

LUX Measurements:

At The Lens: N/A
At 10 Ft: 1,050
At 15 Ft: 390
Lens Temp: 93 Degrees F
Head Temp: 101 Degrees F

BUY AMERICAN COMPLIANT



With a booted push button switch, sealed cord connectors, IP67 (watertight) rated LED light head, high impact nylon housing, ultra-lightweight 11 ounce weight and minimal amp draw makes this LED light ideal as a handheld boat light, hunting spotlight.
Need more power? Take a look at our High Intensity Discharge (HID) Spotlight with 3200 lumens and 15 million Candlepower

This handheld spotlight was designed to be lightweight and durable. The materials were chosen for the same purpose. This 10 watt LED handheld light has a high impact nylon handle and machined aluminum LED housing. The driver board for the LED is potted within the LED head. The LED head is rated at 50,000 hours (15 years of non-stop use). The 16 gauge internal wiring and connectors are simple, well insulated and well constructed.

The LED is packaged and bound within a patented reflector system. This is a single 10 Watt LED configuration, not a cluster of low grade LEDs. The reflector captures and focuses the light efficiently and effectively. A thick Lexan lens protects the LED and reflector package and the entire assembly is potted into the machined aluminum head. The black powder coating protects the aluminum from oxidation.

This light projects a bright, white beam to 800 feet and covers an area about 75 feet wide. Unlike halogen or HID lights, there is not a distinct beam edge. The beam sort of tapers off as it fans out. The 800 foot beam length means that we could read license plates, addresses and other markings at that range easily. Reflective and white items, such as road and boat dock markers were visible at distances to 1500 feet. This LED light produces "cool white" light, very similar to the color and consistency of fluorescent lights you might find in a new office building or retail store, in the 6000 Kelvin color range.
