Application: Fabric Dryer Machine

An application to alternately repeat situations where the inner and outer races of freewheel clutch engage to transmit the torque and where they rotate depending on the difference in rotational speed.

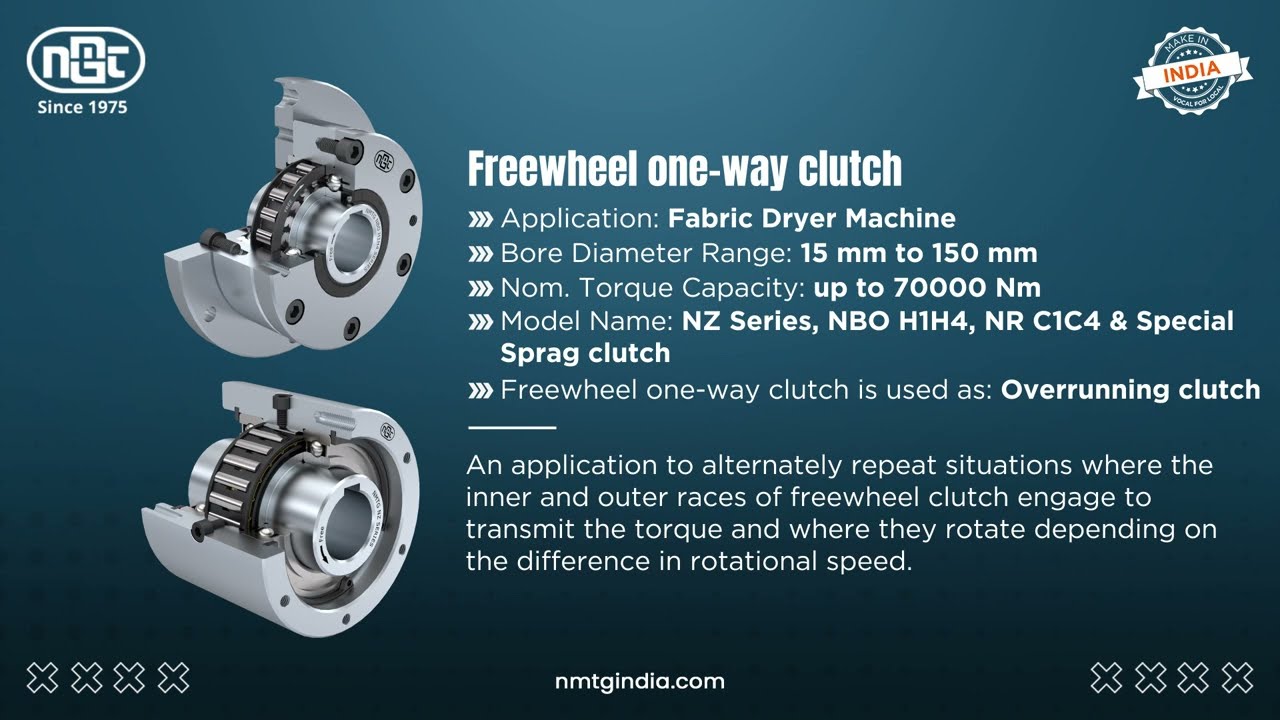

Product Name: Freewheel one way clutches
Model Name: NZ Series, NBO H1H4, NR C1C4 & Special Sprag clutch
Freewheel one way clutch is used as: Overrunning clutch
Bore Diameter Range: 15 mm to 150 mm
Nom. Torque Capacity: up to 70000 Nm

Function: This equipment is used for drying dyed fabrics and yarns by passing them across the rollers placed in the upper and lower positions through a furnace. All the rollers are rotated by chains in the same direction at the same speed. The fabric on the rollers, however, shrinks as it dries through the rollers. Consequently, some rollers rotate faster than the speed driven by the chain according to the amount of shrinkage. When a Freewheel clutch is attached to the sprocket on which the chain is mounted, the Freewheel clutch (in the figure, the inner race) overruns to adjust the rotation of the roller.
