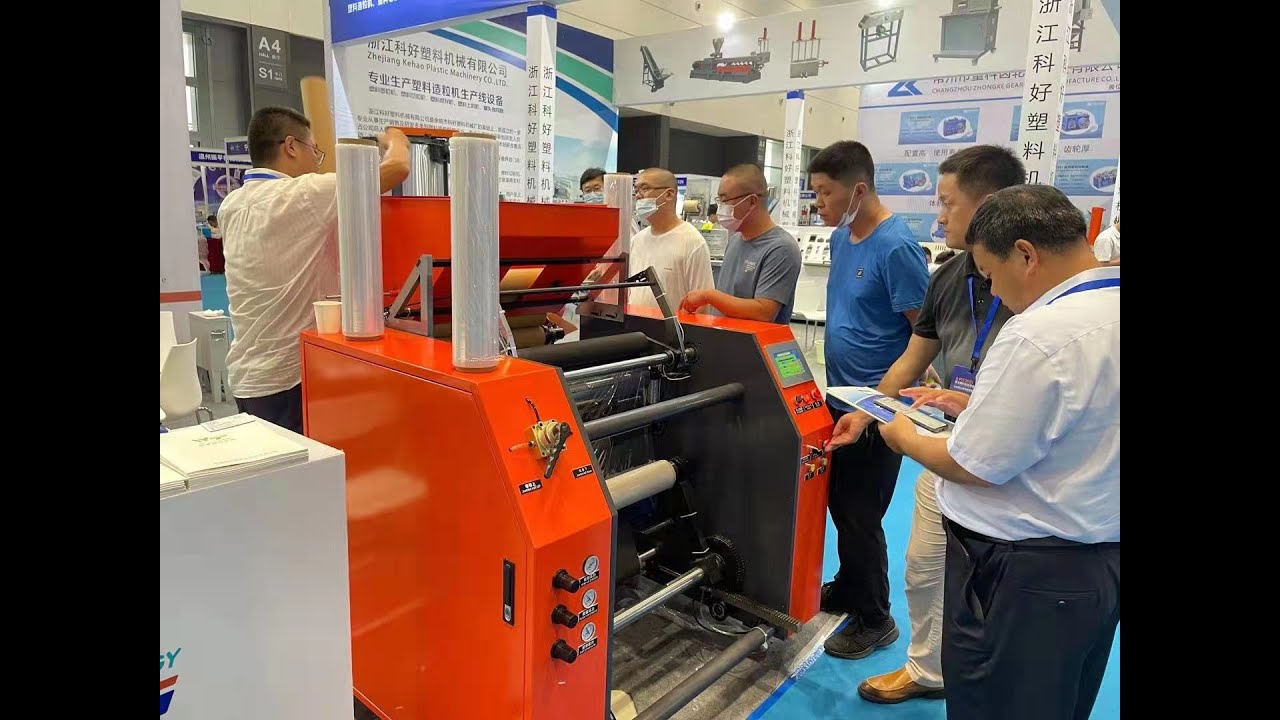

Скачать или смотреть WT-500 fully automatic cast film rewinding machine for stretch film

WT-500 fully automatic cast film rewinding machine for stretch film PE PVC plastic wrap protective film
contact with Mr.Keven at 86-18575159168 ,or Email [email protected]
Fully automatic stretch film rewinder machine is newly technology developed fromItaly,it was built inTaiwan,now we manufacturing in MainlandChinaafter improved in better logic and structure for friendly operation,and high productivity.
We have successfully applied the Patent from China,and also applying in many other countries for patent approve.
It is automatic paper core loading,automatic rewinding,automatic shaft exchange,automatic cut off of rewind roll when reach setting length.
Machine adopts imported PLC man-machine interface communication Program,Touch color screen,inverter control motor user friendly operation,less skilled operator can run the machineIt is mainly for rewinding stretch wrap,pallet stretch film,industrial stretch,wrapping film,food cling film etc.
One operator can run maximum 2-3 units of machines,it can reduce labor cost from production process.

Technical Date:
Unwind roll width Max 500mm
Unwind paper core diameter 3inch
Unwind roll diameter Max475mm
Sub roll width Max 500mm
Sub roll paper core diameter 1.5/2/3inch
Sub roll outer diameter 300mm(max)
Rewinding speed 1000-1200m/min(max)
Voltage 220/380/415v 3PH
Power 4kw
Machine dimension 1350x1000x1050mm
Weight 800kg
