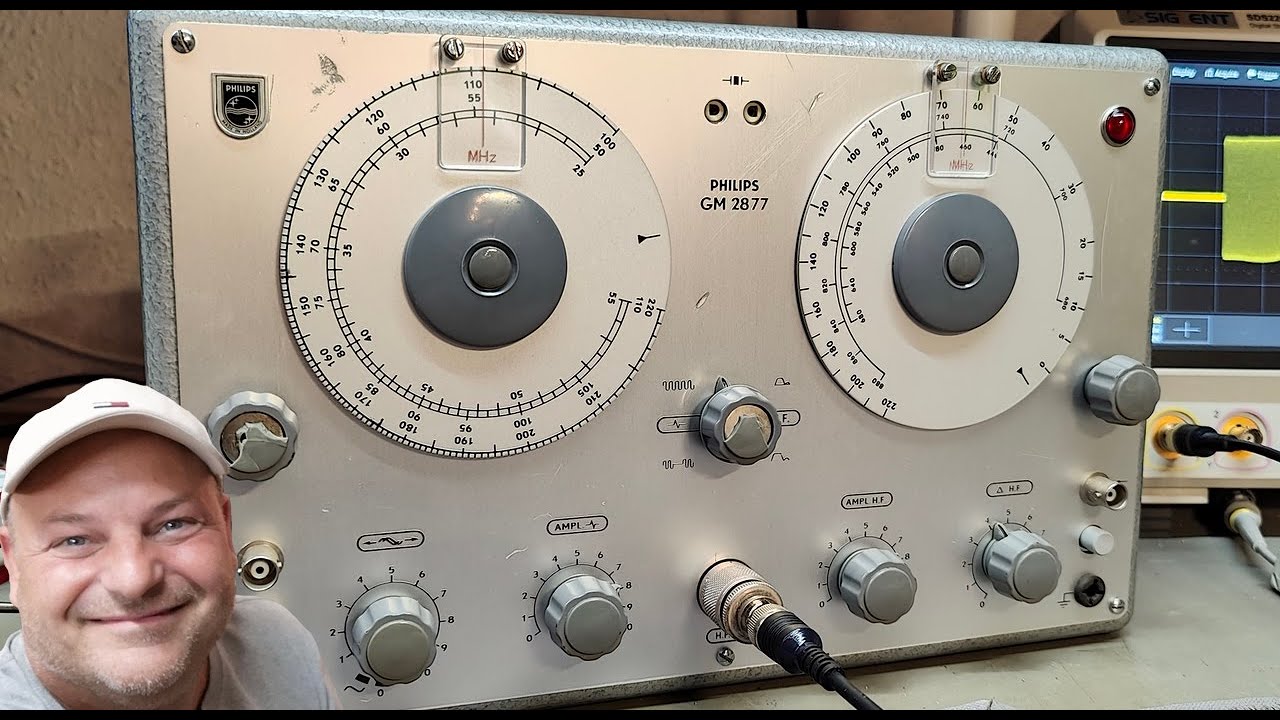

Скачать или смотреть Philips GM2877/2 HF-UHF Sweeper signal generator 1965

Tube based, consist of 4 oscillators and one mixer unit, one of the osc units can also be crystal controlled, Tubes ECC88 x 2, EC81 the rare one triode, ECC83 dual triode, EZ80 rectifier, Diodes OA79 x 4 and OA202
really cool "loudspeaker" magnet and voice coil type of sweeper, the only thing that dont not work is the crystal osc, maybe i used wrong type of crystal, and scales are quite a bit far off, it is NOT a very accurate unit.
--
