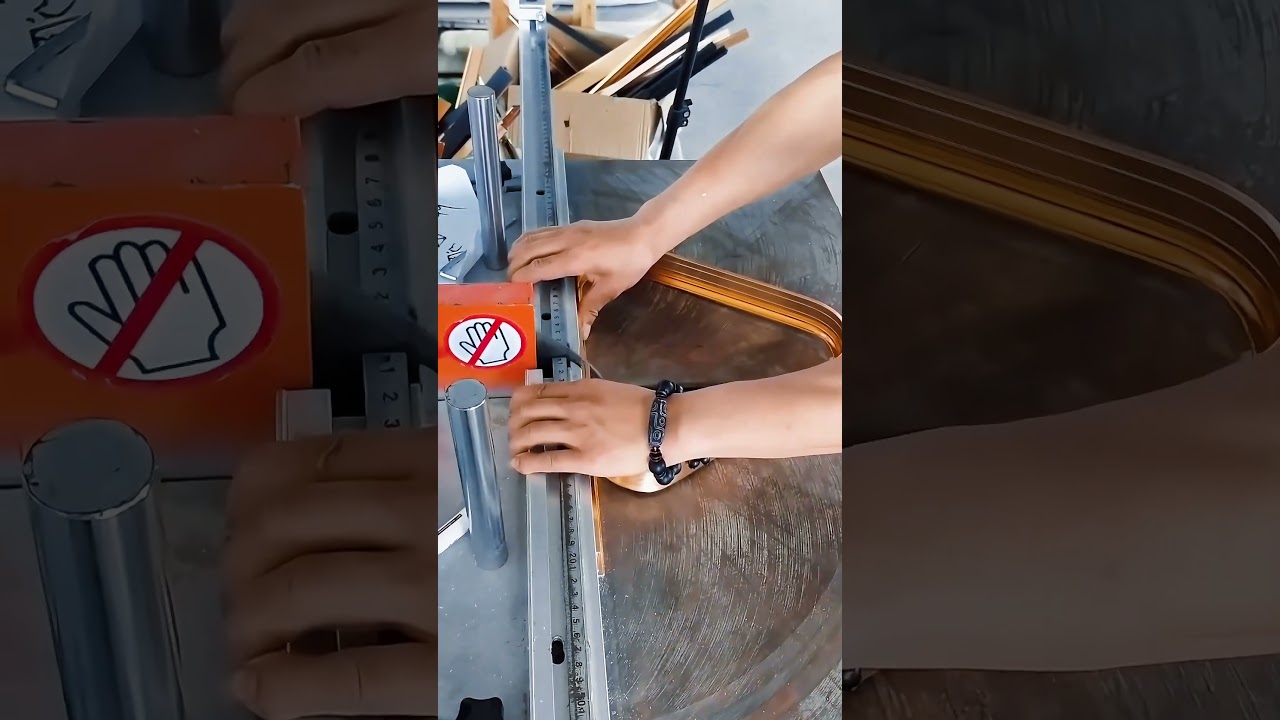

Скачать или смотреть K30 1-way bending machine for mirror frame

whatsapp : +86 1823216688
1、 Overview
The bidirectional CNC bending machine is a bending equipment independently developed and produced by our company, which has undergone a large number of precise tests. It can perform arbitrary shape editing and bending on crystal ceramic frame strips, cardboard lightbox profiles, lightweight stainless steel, etc. It has the characteristics of small bending limitations, high bending accuracy, and easy to learn operation.
2、 Machine components
This equipment can be divided into the mechanical part of the bending machine, the PC end operation control part, and the driving mechanical operation unit part.
3、 Introduction to Control Methods
1. This device uses PC independently developed bending software to drive three servo motors equipped with drivers and deceleration systems for operation. The mechanical part is equipped with quick buttons for easy production operations.
4、 Precautions.
(1) When reassembling the grooved mold wheel, it is necessary to ensure that the height of the four wheel slots is consistent, otherwise operation may damage the mold wheel or profile.
(2) Before starting the machine for processing, it is necessary to check whether the two bending wheels are at the reset origin position. If they are not at the origin position, check which wheel is not at the origin and press the corresponding return to origin button. Be careful not to press the wrong button.
5、 Connection between CAD and software
When processing irregular shapes, simply draw the required size of the shape in CAD software. After drawing, close each segment of the drawn shape to form a closed shape (CAD software has a closing function). Select 2007dxf as the saving format to open the shape in bending software for processing.

Overall dimensions: length * width * height 850 * 550 * 1200
Working voltage 220V
Total power 2.5kw
Equipment weight 230kg
Device color grayish white
Minimum circular diameter 150
Maximum circular diameter unlimited
Minimum fillet angle 50 degrees
Maximum fillet angle unlimited
Motion mode: Servo motor drives gear transmission
Equipped with Xinjie servo motors, three drives each, and three helical precision reducers,
One computer host and one monitor.
Features: Simple and easy to learn operation, precise machining dimensions, and unlimited machining graphics
Independently developed bending software for operation mode
Service life ≥ 10 years
