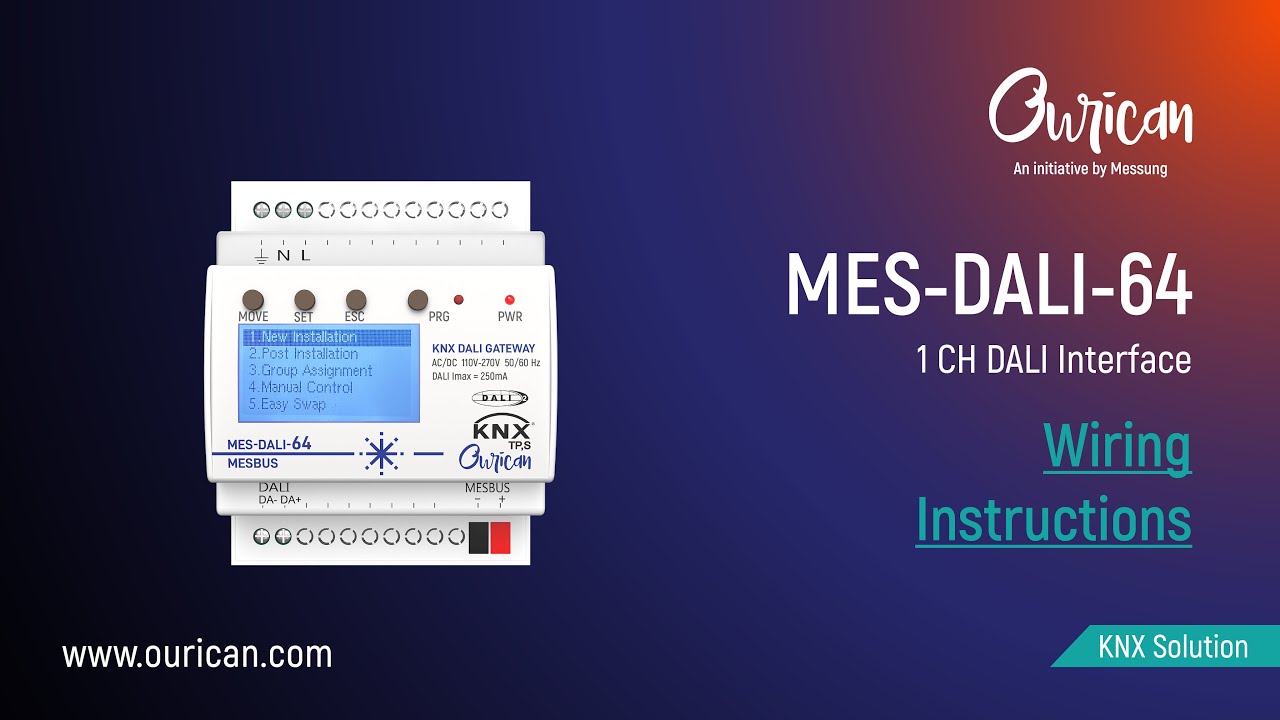

MES-DALI-64 controls 64 independent DALI drivers and 16 DALI groups. The module is designed on the DALI 2.0 protocol and offers lighting temperature control (cool & warm).

Wiring Instructions
1. Connect the 230 VAC power supply to the MES-PSU-640 (KNX Power Supply).
2. Connect the KNX bus cable from the MES-PSU-640 to the MES-DALI-64 DALI Controller.
3. Connect the 230 VAC power supply to the MES-DALI-64 DALI Controller.
4. Check the power LED (PWR) and ensure it is on; the display should be active.
5. Connect the DA+ and DA- terminals on the MES-DALI-64 to the DA+ and DA- terminals of the DALI driver.
6. Download the ETS programming to the device.
7. Test the manual buttons to check each ECG (1–64).

Dos
1. Check the KNX bus supply by ensuring the power LED (PWR) is on.
2. Connect a maximum of 64 drivers to a single DALI Controller.
3. Use shielded cable for the DALI bus supply.
4. For optimal dimming and color temperature compatibility, always test DALI lights and drivers with the device before finalizing.

Don’ts
1. Do not connect more than 64 light fixtures to a single channel.
