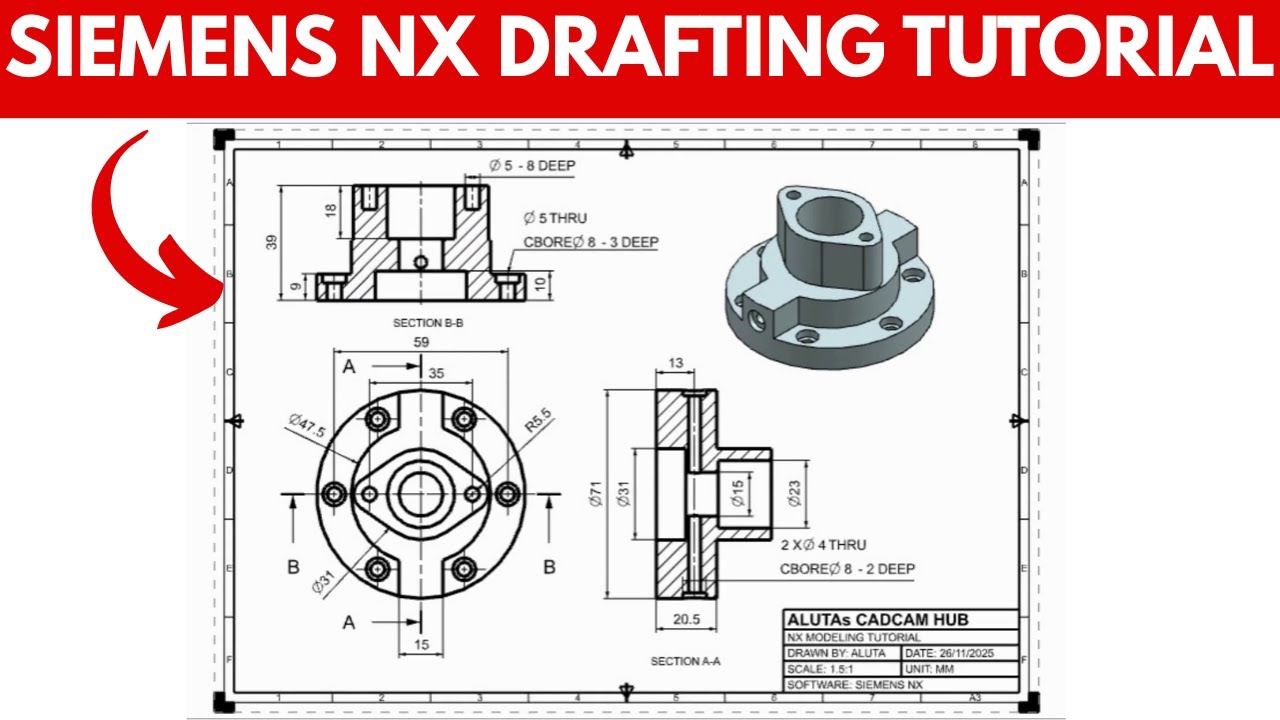

Скачать или смотреть Siemens NX Drafting Tutorial: Complete 2D Engineering Drawing for Beginners (Step-By-Step)

Learn how to create a full 2D engineering drawing in Siemens NX using the exact part shown in this tutorial. I’ll walk you through every step — base views, section views, dimensions, center marks, hole callouts, title block setup, and exporting the final draft.

This is a clear and practical guide for anyone learning NX drafting for mechanical or manufacturing work. If you want to master NX technical drawings the right way, this video will set you on the right track.

Timestamps:
0:00 – Intro
0:36 – Opening the 2D drafting workspace
1:13 – Setting up the drafting sheet
5:53 – Adding the Isometric and top views
7:24 – Adding the section views
10:47 – Adding dimensions
16:44 – Final touches
18:00 – Outro

How to model the 3D part:    • How to Model This Mechanical Part in Sieme...

#CADCAM #SiemensNX #NXDrafting #EngineeringDrawing #CADTutorial #MechanicalDesign #2DDrawing #NXModeling
