In this video, I'm telling about the best Technics for How to make AC copper pipe flare and What is Flaring Tool Easily.

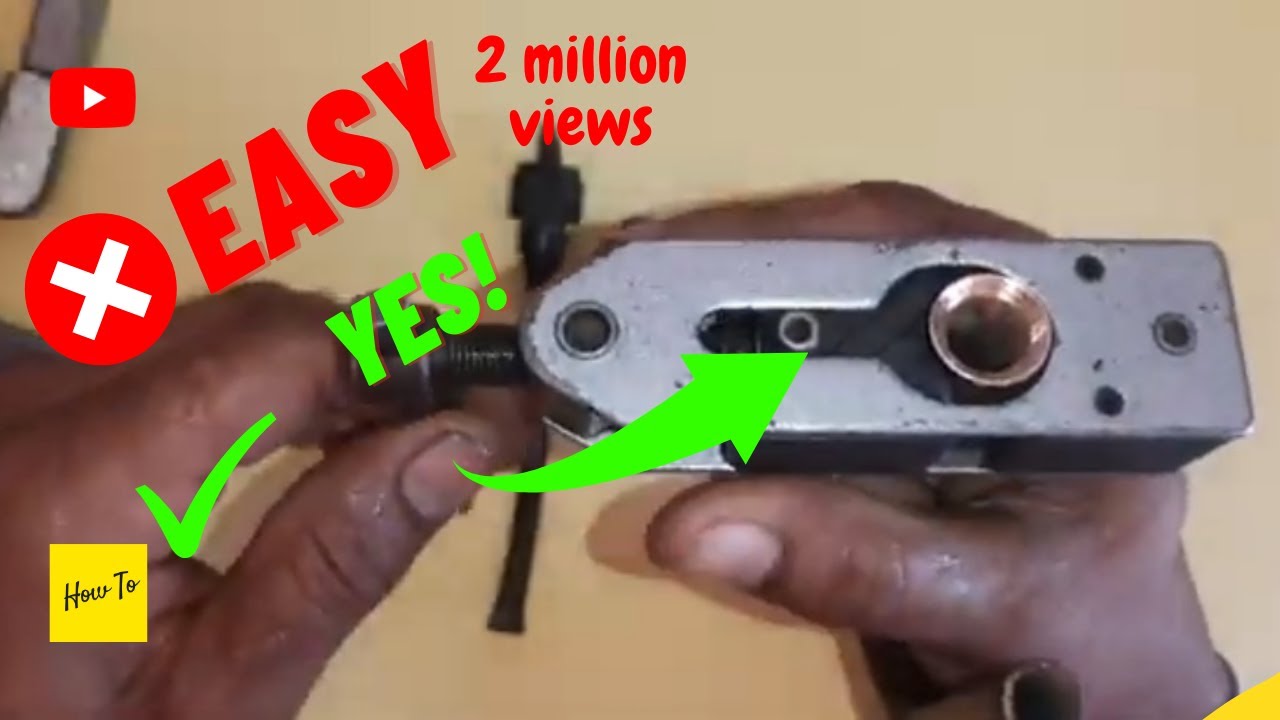

Flaring tools use pressure to make a fabricated mechanical joint for joining or sealing copper tubing with a flare connection. Flaring allows you to connect tubes to each other or another kind of fitting.

Flared ends tend to have an approximately conical shape.
The most popular flaring tool for copper tubing is the bar-type tool, which include multiple bits to accommodate different pipe or tube sizes.
Tubing and piping flares are not interchangeable. Tubing flares have a 45-degree angle while piping flares have a 37-degree angle.
hen flaring, begin by choosing the tool accessories that match the diameter of the tube to be flared.
Place the tubing inside the die block or clamp of the flaring tool. The end of the tube should extend about 1/8 inch (about the height of a nickel) from the flaring tool.
Tighten the wing nuts to secure the tubing in the tool.
Tip: Place a drop of oil on the flaring cone to smooth the process.


#copper
#flaretool
l#doityourself
#repair


Center the flaring cone over the tubing.
Tighten the flaring tool to lower the press into the tubing until it forms a flare. Do not over-tighten, which risks splitting the copper.
Loosen and remove the flared tubing.
Tip: If you have a kit with swaging accessories and want to swage a tube, follow the same steps, replacing swaging bits for the flaring bits.
