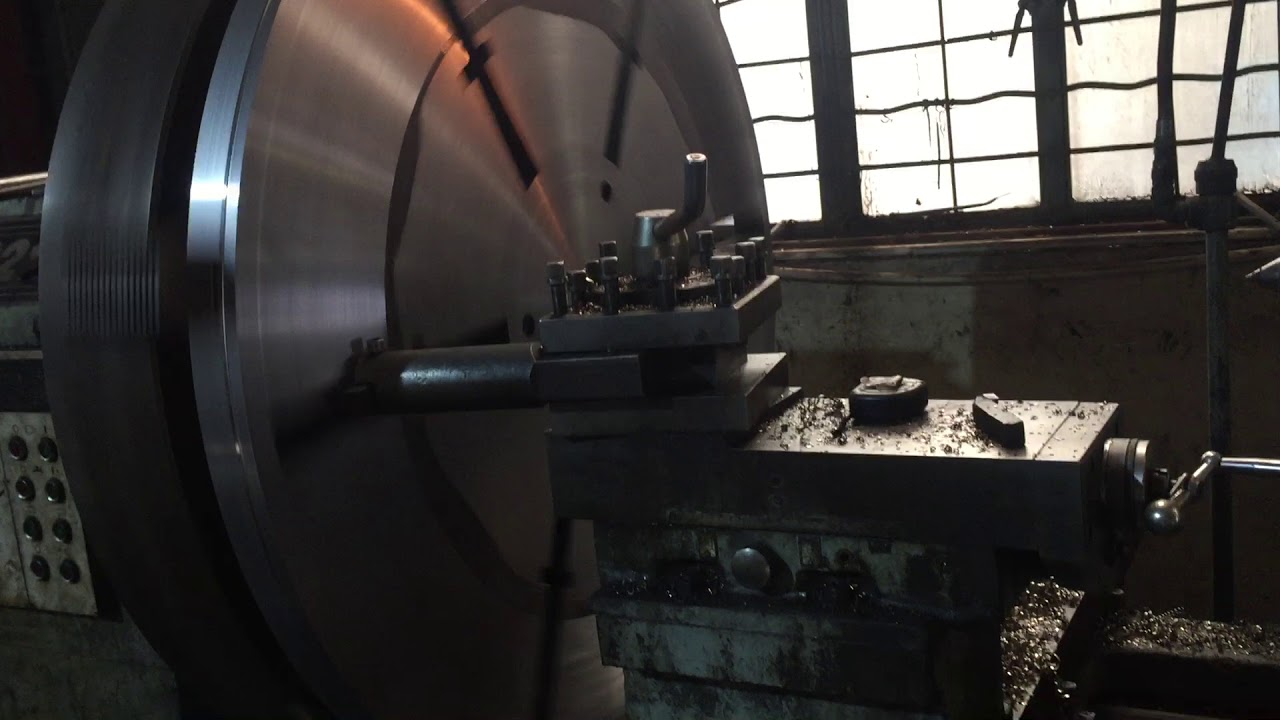

Скачать или смотреть Flange of collapsible reels in CNC processing

The collapsible reels are designed to produce a reel-less package where only the strapped coil of wire, cable or tube is shipped or processed further. If only the strapped coil needs to be shipped, but a well formed package is desired, a take-apart reel system allows for high speed precision winding and un-winding possibilities.

Collapsible Reel: Coiling and Lifting System
• Built from high strength steel in any size starting from 800 mm (31.5")
• System also lifts coil
• Can be balanced for higher speed spooling applications
• Can be outfitted with 4, 6, 8 strapping slots
• Complete with mechanical wire locking system
• Attachments can be provided to produce various coil widths with same reel

COL-CS: Single Central Screw Collapsible Reel
• Built from high strength steel in many customized sizes and weight requirements
• Quick opening and closing/opening system for the disassembly of the reel using 1 central screw
• Can be balanced for higher speed spooling applications
• Can be outfitted with 4, 6, 8 strapping slots
• Can be supplied with hardened removable arbor bushings
• Attachments can be provided to produce various coil widths with same reel

COL-4S: 4 Screw Collapsible Reel
• Built from high strength steel in any many customized sizes and weight requirements
• Simple 4-screw closing/opening system for the disassembly of the reel
• Can be outfitted with 4, 6, 8 strapping slots
• Can be supplied with hardened removable arbor bushings

TA-P & TA/H: Pneumatic / Hydraulic Take Apart Reel
• Built from high strength steel in any size starting from 800 mm (31.5")
• Pneumatic or hydraulic activated opening and closing system for the disassembly of the reel
• Can be balanced for higher speed spooling applications
• Can be outfitted with 4, 6, 8 strapping slots
• Can be supplied with hardened removable arbor bushings
• Attachments can be provided to produce various coil widths with same reel

TA-Z: Z2 + Z3 Collapsible Reel
• Special standardized take-apart reel with cardboard winding drum
• Flange diameters: 760 mm, 900 mm ( 30", 36")
• Built from high strength steel with central locking collar system
• Operator insert cardboard tube between flanges for winding surface
• Supplied with 6 strapping slots
