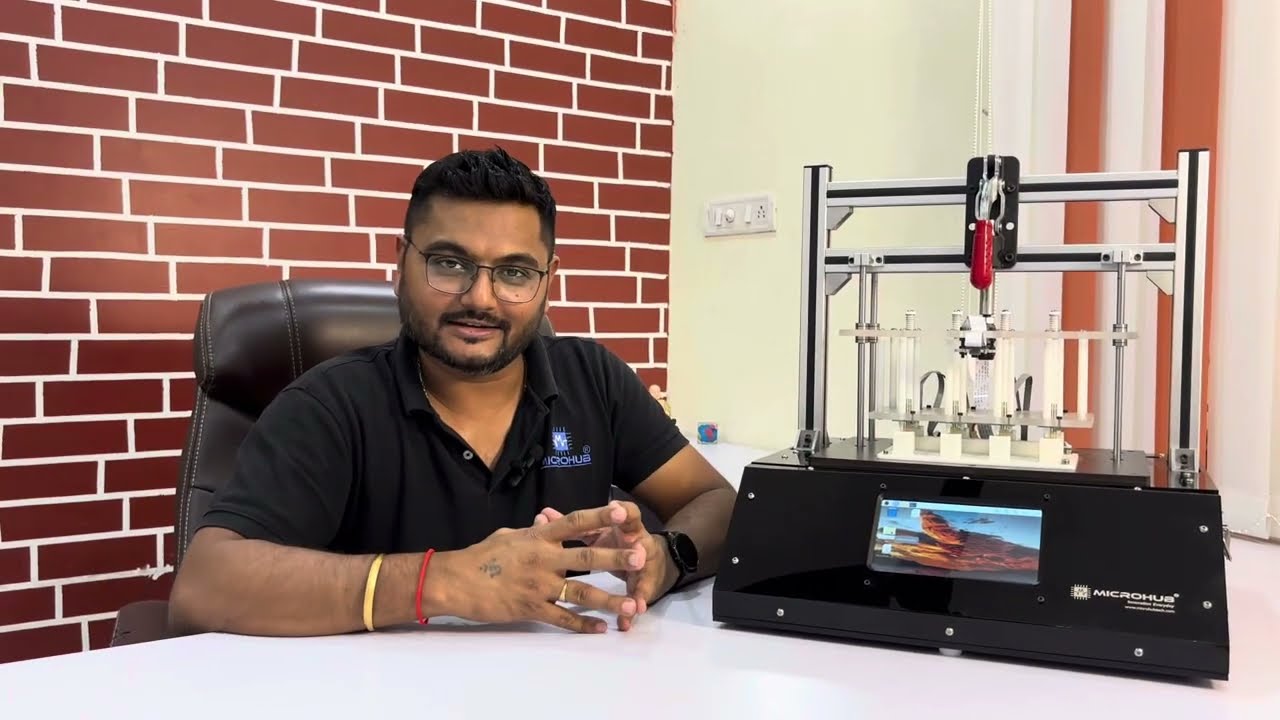

Скачать или смотреть PCBA Test Fixture with Raspberry Pi and Microcontroller

Design and Development of customized PCB Test Jig with Embedded system and Software
PCB Test Jig and Fixture
Contact us for your requirements

https://www.microhubtech.com/

WhatssApp: 9904353830
Email: [email protected]
INDIA, Gujarat, Vadodara
we can delivery you Test Jig in 5 days Only
Design and Development of customized PCB Test Jig with Embedded system and Software
PCB Test Jig and Fixture
Contact us for your requirements

https://www.microhubtech.com/

WhatssApp: 9904353830
Email: [email protected]
INDIA, Gujarat, Vadodara
we can delivery you Test Jig in 5 days Only


#fixture #pcb #automation #robotic #test #plc #best #science #robot #hmi
These PCB testing fixtures can either be mechanically or pneumatically operated. The mechanical PCB test fixtures require the user to manually close the test fixture's top hat on the PCB, holding it into place. This activates the bed of nails, pressing it against the PCB. Due to the mechanism involved, the mechanical test fixtures are cheaper in comparison to the pneumatic test fixtures.

Specialized and custom designed PCB testing jigs and fixtures are used to test PCB. Testing point is identified and probed to identify the input to be given and output to be measured. A PCB testing jig can be identified as a device or machinery that holds a piece of machine work which nowadays comprised of much electronic intelligence and guides the tools operating on it. It should not be confused with PCB testing fixtures which are used to keep the object firmly in place. However, in PCB testing both the terms test jigs and test fixtures are interchangeably used as a electro-mechanical solution to test the printed circuit boards or PCBs. Custom-made PCB test jigs and test fixtures are made as per the application of the board to test its testing points.

A test jig is essentially a contraption that allows you to test many components of a board all at once.

There are a lot of things to consider when creating a test jig, ranging from test coverage to operator fatigue, and of course throughput and reliability. In some cases, a product designer may spend even more time designing a test jig than they spend designing the product itself!

The impact that a well-designed test jig can have on manufacturing efficiency is huge. These are extremely important for large scale manufacturing, as reputable factories will test 100% of every product shipped. It is easy to lose sight of the potential pitfalls of hardware manufacturing and the magnification of those issues at scale; if you can cut a product's testing time from 4 minutes to 1 minute the time savings will pay off exponentially as thousands of units are tested

What is a functional test of a PCB?,Which method is used for PCB board testing?,Who conducts functional testing?,What is a PCB test fixture?,How do you test for PCB?,What material is used in PCB test fixtures?,Wat is a PCB test board?,Pcb test fixture price,pcb test fixture kit,Pcb test fixture manufacturers,pcb test fixture design,fixture Manufacturer,jigs vs fixturer,pogo pin vs test probe,How do I identify PCB components?
