Innovative Pipe Surface Grinding Jig Tool : Best Controlled Cylindrical Finishing

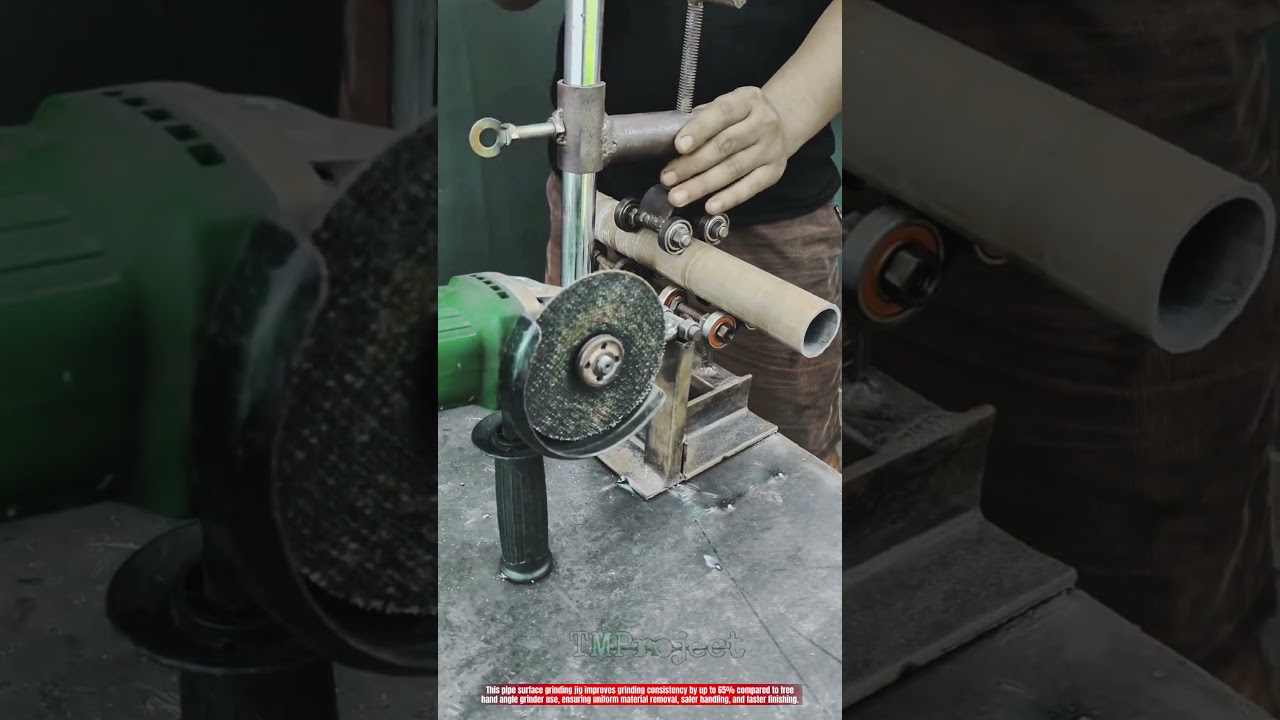

This innovative pipe surface grinding jig introduces a guided mechanical system that transforms unstable freehand grinding into a controlled and repeatable cylindrical finishing process. By combining roller-supported pipe positioning with a vertically adjustable grinder mount, the jig ensures even surface contact and consistent material removal along the entire pipe length.

Technical Specifications
Welded steel base frame with vibration-damping mass
Multi-roller support system for cylindrical pipe rotation
Vertical guide column with adjustable grinder arm
Standard angle grinder mounting interface
Compatible with steel, aluminum, and PVC pipes

How It Works
1. The pipe is placed on the roller support assembly.
2. Rollers allow smooth axial rotation of the pipe during grinding.
3. The angle grinder is fixed to the adjustable vertical arm.
4. Controlled downward pressure brings the grinding disc into contact.
5. The pipe is rotated evenly to achieve uniform surface finishing.

Advantages
Improves surface uniformity by up to 65% over manual grinding
Reduces vibration and operator fatigue significantly
Enhances safety by stabilizing both tool and workpiece

Disadvantages
Requires fabrication time and precise alignment during setup
Limited to cylindrical or round-section materials
Less portable than handheld grinding methods

This grinding jig demonstrates how mechanical guidance can dramatically improve metal finishing quality. Freehand grinding on round pipes often produces uneven surfaces due to inconsistent pressure, tool angle variation, and uncontrolled rotation. By introducing guided rotation and fixed grinder alignment, the jig ensures predictable and repeatable results.

From a mechanical perspective, the roller system converts sliding friction into rolling motion, reducing resistance and allowing smooth pipe rotation. The vertical guide column maintains a constant grinding angle, preventing gouging and uneven wear on the grinding disc. Practical use shows finishing time reduced by approximately 40% compared to manual techniques.

Another key benefit is surface consistency. Uniform grinding improves coating adhesion, weld preparation quality, and visual appearance, which is especially important in fabrication, railing production, and pipe-based structures. The system also reduces disc wear by maintaining stable contact conditions.

Overall, this pipe surface grinding jig highlights how well-designed DIY tools can elevate workshop capabilities. By focusing on stability, controlled force application, and repeatable motion, the jig delivers safer operation, higher efficiency, and professional-grade surface finishing using standard angle grinder equipment.

Like, comment, and subscribe for more real-world DIY metalworking tools, mechanical innovations, and efficient workshop solutions.
