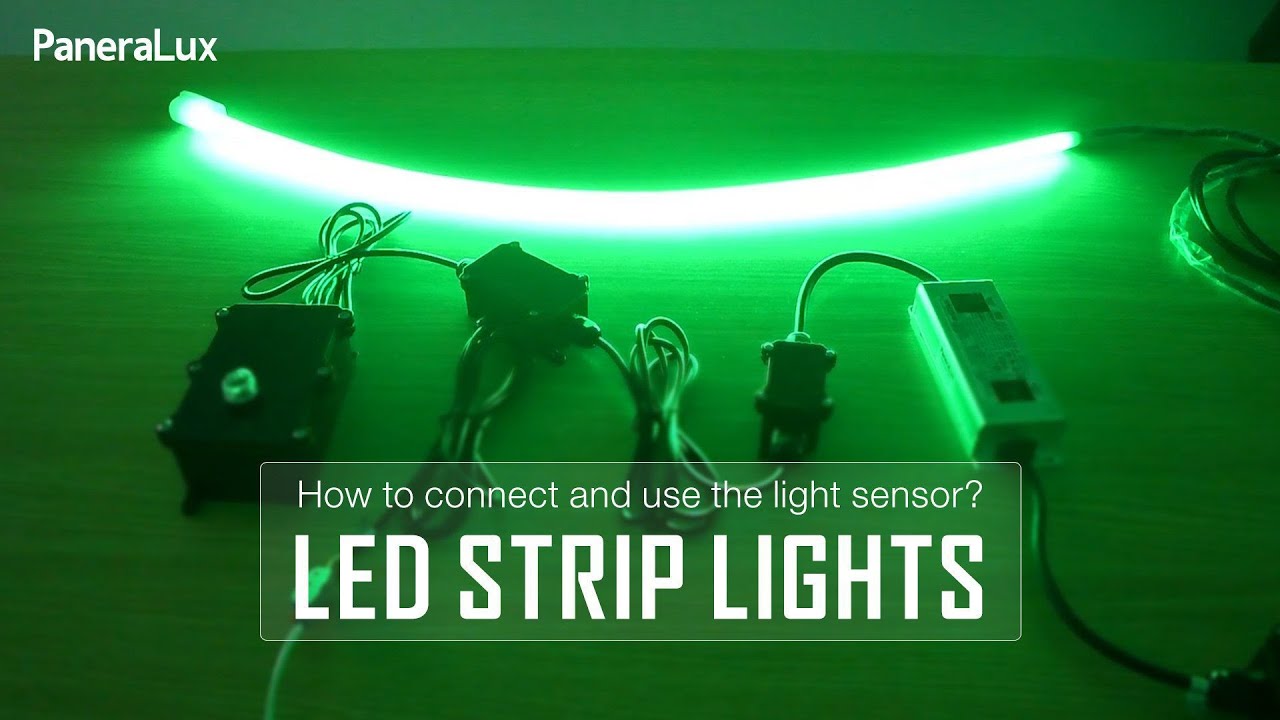

This video demonstrates how to connect a photocontrol switch in a lighting system, using the PaneraLux T1512 V3 pool lighting system as an example.

The photocontrol assembly allows automatic control of lighting based on ambient light levels, making it ideal for outdoor, pool, and landscape lighting applications.

🔌 System Components:
1. Photocontrol switch with light sensor opening
2. 3-pin bare wires for mains power connection (105–305V AC)
3. 3-pin bare wires for connection to lights or lighting systems
4. IP67 3-way junction box

⚡ Electrical Specifications:
• Operating voltage: 105–305V AC
• Suitable for outdoor and wet environments
• IP67 waterproof junction box

📐 Connection Overview:
• Mains Power → Photocontrol Switch (Input)
• Photocontrol Switch (Output) → Power Supply / Controller
• Controller → Distributor → T1512 V3 Pool Light Strip

☀ Operating Principle:
• Light ON when ambient brightness is below 16 Lux
• Light OFF when ambient brightness is above 24 Lux
• Normal response time: approximately 5 seconds

🌙 Application Scenario:
The photocontrol switch automatically turns on the lighting system at dusk or nighttime and turns it off in the early morning, providing reliable and energy-efficient lighting control.

This solution is widely used in pool lighting, outdoor lighting, and landscape lighting systems.
