COMPLETE BUILDING CONSTRUCTION PROCESS
(Excavation, Waterproofing, ATT, Shoring, Pedestal Brickwork & Dressing – Detailed Explanation)

Building construction ek aisa process hai jisme har stage ka apna importance hota hai. Agar foundation strong nahi hua, toh upar ka structure chahe kitna bhi acha ho, long-term safe nahi hota. Isliye construction ka kaam hamesha ground level se planned execution ke saath start hota hai.

Is project me humne following major activities complete ki hain:
Excavation, Waterproofing, ATT Work, Shoring, Pedestal Brickwork aur Dressing. Neeche har ek step ko detail me samjhaya gaya hai.

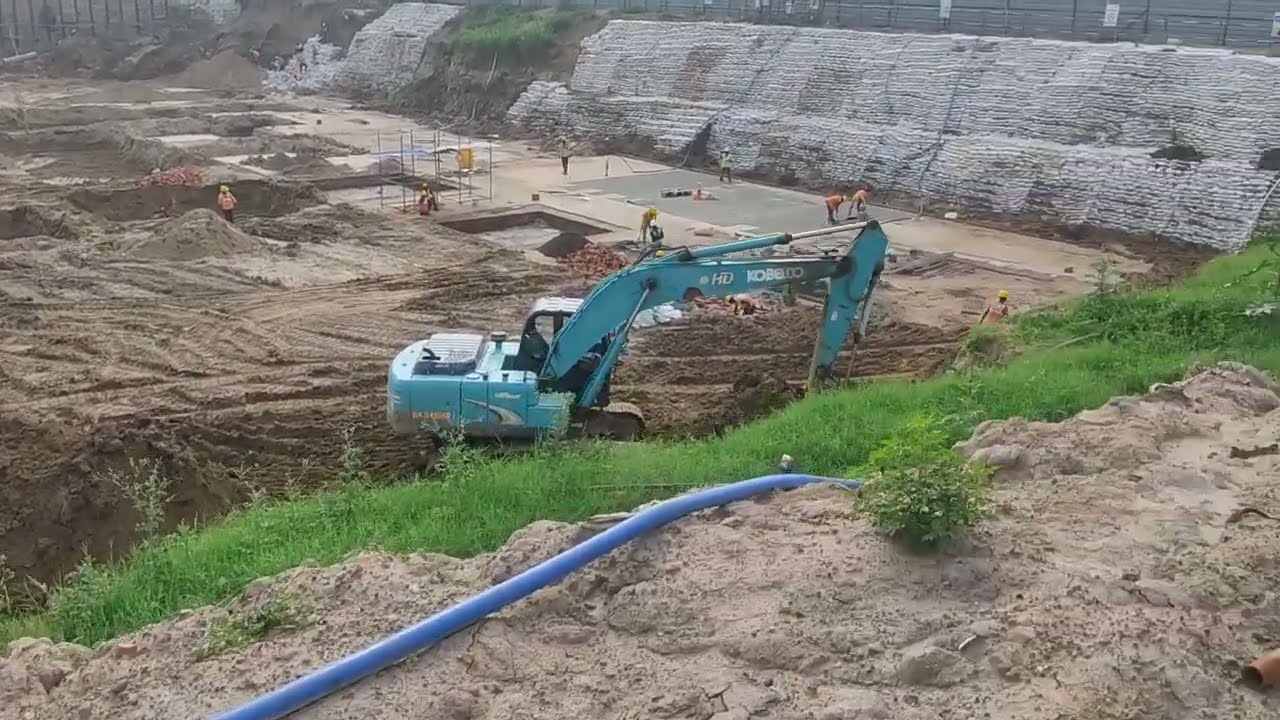

1️⃣ EXCAVATION WORK (खुदाई का काम)

Excavation building ka first aur most critical step hota hai. Is stage par soil ko remove karke foundation ke liye required level achieve kiya jata hai.

Excavation ka purpose:

Foundation ke liye required depth banana

Weak soil ko remove karna

Load bearing soil tak pahunchna

Raft footing / isolated footing / pile cap ke liye base prepare karna

Excavation ka process:

Sabse pehle site layout marking ki jati hai as per drawing

Center line aur footing position mark ki jati hai

Manual ya machine excavation (JCB / Excavator) ka use hota hai

Required depth tak soil excavation ki jati hai

Quality control in excavation:

Excavation depth drawing ke according honi chahiye

Side slopes safe angle par hone chahiye

Loose soil remove karna mandatory hai

Water logging hone par dewatering arrangement

Proper excavation na sirf structural safety ke liye important hota hai, balki aage ke sabhi works (PCC, waterproofing, footing) isi par depend karte hain.

2️⃣ WATERPROOFING WORK (वाटरप्रूफिंग)

Waterproofing ek protective layer hoti hai jo building ko underground water, moisture aur dampness se bachati hai.

Waterproofing kyu zaruri hai?

Basement aur foundation ko seepage se bachane ke liye

Steel reinforcement ko corrosion se protect karne ke liye

Long-term durability ke liye

Damp walls aur leakage problems avoid karne ke liye

Waterproofing ka type:

Cementitious waterproofing

Membrane waterproofing

Bituminous coating

Chemical waterproofing (as per site requirement)

Waterproofing process:

Excavated surface ko clean kiya jata hai

Loose particles aur dust remove ki jati hai

Waterproofing compound lagaya jata hai

Joints aur corners par special treatment

Proper curing ensure ki jati hai

Waterproofing ka kaam agar initial stage me sahi ho jaye, toh future me repair aur maintenance cost kaafi kam ho jati hai.

3️⃣ ATT WORK (Anti Termite Treatment)

ATT ya Anti Termite Treatment ek chemical treatment hoti hai jo building ko termites (deemak) se protect karti hai.

ATT ka importance:

Termites foundation ke through structure me ghus sakte hain

Wooden doors, furniture aur finishing ko damage karte hain

Repair cost kaafi zyada hoti hai

ATT kaha-kaha ki jati hai:

Excavated soil surface par

Foundation base par

Plinth area ke niche

Wall junctions aur column base ke around

ATT process:

Approved chemical solution ka use

Proper dilution as per standard

Uniform spraying using pressure pump

No gap / no untreated area policy

Anti termite treatment ek one-time investment hai jo building ki life ko kaafi had tak badha deta hai.

4️⃣ SHORING WORK (सपोर्ट सिस्टम)

Shoring ek temporary support system hota hai jo excavation ke sides ko collapse hone se bachata hai.

Shoring kyu zaruri hoti hai?

Deep excavation ke time safety ke liye

Adjacent building ko protect karne ke liye

Soil collapse avoid karne ke liye

Labour aur equipment safety ke liye

Shoring ke types:

Timber shoring

Steel sheet piling

Soldier pile shoring

Hydraulic shoring

Shoring installation process:

Excavation ke saath-saath shoring lagayi jati hai

Vertical posts aur horizontal bracing provide ki jati hai

Load transfer evenly distribute kiya jata hai

Regular inspection ki jati hai

Proper shoring na sirf safety ensure karti hai, balki excavation work ko smooth aur fast banati hai.

5️⃣ PEDESTAL BRICKWORK (पेडेस्टल ब्रिकवर्क)

Pedestal brickwork foundation aur column ke beech ka ek important element hota hai.

Pedestal ka purpose:

Column load ko evenly distribute karna

Plinth level maintain karna

Waterproofing layer ko protect karna

Alignment aur level accuracy

Pedestal brickwork process:

Layout marking as per column position

Brick quality check (size, strength)

Cement mortar mixing (approved ratio)

Proper line, level aur plumb maintain

Curing for required duration

Pedestal brickwork directly structure ke load transfer system ka part hota hai, isliye isme quality compromise nahi ki jani chahiye.
