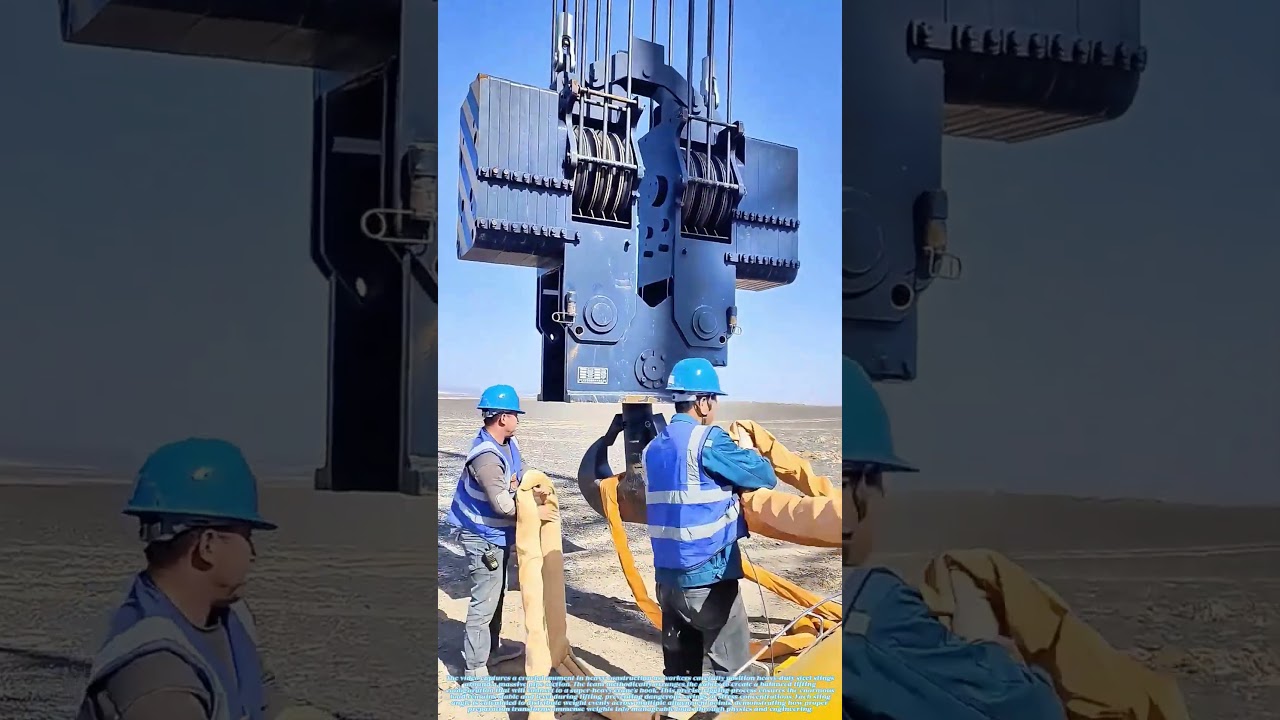

Скачать или смотреть Rigging the Giant: How Steel Cables Lift Massive Pipes

The Science of Heavy Load Rigging
Proper rigging represents the critical interface between crane capacity and load stability, where geometry and physics combine to safely manage weights that would otherwise be impossible to move. This process requires understanding both material strengths and mechanical principles to create temporary structural systems.

• Workers use specialized wire rope slings rated for 20-50 tons each, with the total configuration designed to lift 3-4 times the pipe's actual weight for safety margin
• The sling angle dramatically affects capacity - when slings form a 90-degree angle at the hook, each carries only 70% of the load compared to vertical positioning
• Spreader bars are often incorporated to maintain optimal sling angles and prevent cable damage from sharp pipe edges
• Load calculations account for dynamic forces - the initial lift generates up to 25% more stress than the static weight
• Multiple attachment points distribute stress across the pipe's structure, preventing localized deformation during lifting
• This configuration allows cranes to lift pipes weighing up to 80 tons while maintaining precise control during placement

In this careful arrangement of steel around steel, we witness the essential preparation that enables modern construction - where understanding forces and angles transforms impossible weights into precisely positioned components.
