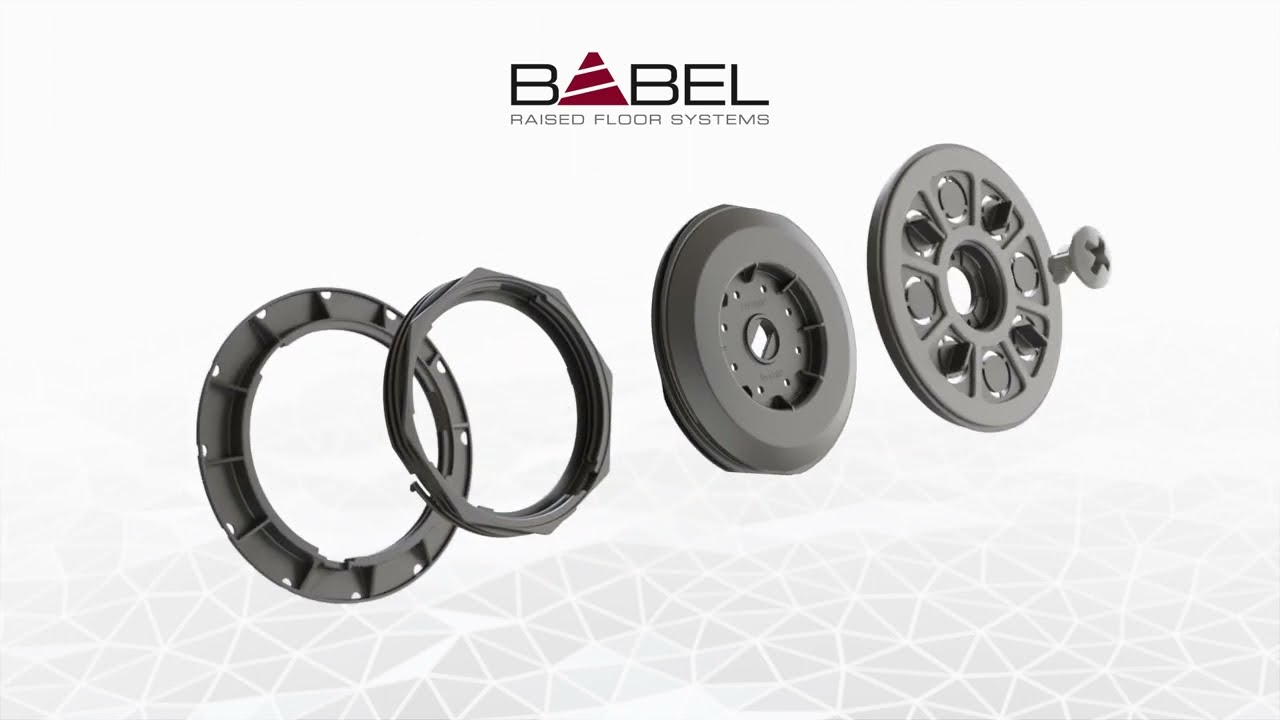

Babel raised floor systems
Babel is a Plot System to solve any heigh with a unique reference.
An innovative modular system with self-levelling head, height adjusment and key locking.

A single Plot, for any height
Through a unique threads system, we are able to add accesories and to raise the system working range.
• Raising Tube
• C30 Ring
• C60 Ring
• Standard Kit

Height adjusment and locking with key
Babel key allows us to adjust the final system height and locking the head to a fixed position.
Ergonomic design for an optimal grip.

Bi-material levelling head
Babel header has a self levelling system which allows us to correct up to 5%.
Babel header prevents the pieces movement and minimizes the sound transfers.
Header available in 2 mm and 4 mm joint

20 mm diameter base
Babel base is designed to prevent displacement and has water drainage outlet.

Accesories
• C30 – Raising Ring 30 mm
• C60 – Raising Ring 60 mm
• Tube adaptors
• Custom Tube
• BABEL Key

This system allows to join accesories and reach the target height. Every accesorie is compatible with each other.
• Standard Kit: 25 – 45 mm
• Standard Kit + C30 RIng: 45 – 77 mm
• Standard Kit + C60 RIng: 77 – 102 mm
• Standard Kit + C30 RIng + raising tube: 102 – ∞ mm
