Dongguan Juke Industrial Development Co., Ltd. is a professional automation workshop production line solution provider for high frequency transformer peripheral equipment.

Juke Industry is dominated by Taiwanese technology, and all raw materials are selected and processed in strict accordance with Taiwan Standards, and with the superior technology and professional services, to create maximum value for customers.

Juke Industry adheres to European standards. Our product series include: transformer automatic casing machine, automatic core assembly machine, (automatic core assembly + bag tape + test + wobble plate), CNC winding machine, single Shaft winding machine, 12-axis automatic winding machine, automatic winding + wrapping tape machine, (USB charger automatic laminating machine), semi-automatic wrapping tape machine, vacuum impregnation machine, (different single and double cylinders), High-frequency transformer peripheral automation equipment such as automatic soldering machine and semi-automatic soldering machine (also called flip soldering machine). The products are widely used in high and low frequency transformers, ballasts and motor factories.

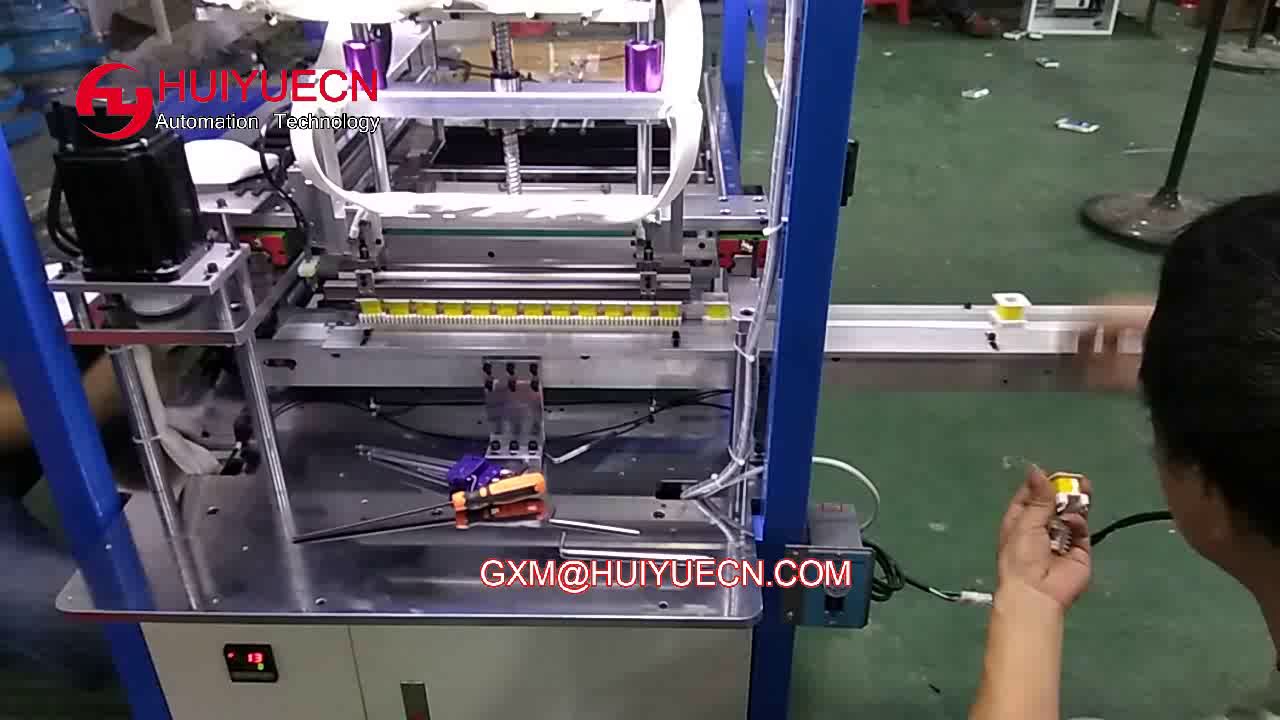

Below is the video of our transformer hand-held soldering machine. If you want to customize or purchase, please consult our business staff.

Transformer hand swing type soldering machine parameters:
Voltage AC220V/50HZ
Air pressure 6-8KG/cm2
Power 3500W
Body size 1200 (L) X 1500 (W) X 1500 (H) mm
Tin furnace size 395 (L) X 90 (W) X 50 (H) mm
Control mode Servo PLC
Operation interface Human machine interface, full Chinese operating system.

Transformer hand tilting soldering machine features:
1. Suitable for vertical, horizontal, high frequency, low frequency transformers, inductors, filters and other products.
2. Two vibrating discs + artificial pendulum mechanism, three material channels, three kinds of products (vertical, horizontal) soldering at the same time, vibrating plate can be automatically loaded, machine automatic picking, automatic rosin, automatic soldering, automatic retreat Material, can be connected to the assembly line operation.
3. The artificial pendulum mechanism can be placed in a small amount, with a single product, flexible and versatile.
4. The welding fixture is universal, no need to change the fixture repeatedly, and it has strong versatility.
5. Soldering time, soldering speed, soldering angle, corner and non-rotation angle can be set arbitrarily.
6. The control system adopts the human-machine interface full Chinese operation interface, which is easy to operate and easy to understand.
7. The machine is functional, stable, and labor-saving, free of the troubles of training for new and old employees.
8. The tin furnace is made of lead-free titanium alloy. (plated ceramic).
The flip-type push-type automatic soldering machine is directly driven by a stepping motor, which has a fast flipping speed, accurate angular positioning and a speed selection of 0-99 segments. Full-featured solder action. The functions of the sub-cup, corner, translation and flux mechanism can be selected at will.


The following is the contact information of our company. If you need to customize or purchase, you can contact our business staff:
Company Name: Dongguan Juke Industrial Development Co., Ltd.
Manufacturer Tel: 0769-89870552
Company website: http://tc.huiyuecn.com
Contact: 18819603799
QQ: 3407993243
WeChat: 18819603799
Email:[email protected]
Address: Room 406, 4th Floor, Jufeng Qinlai Industrial Park, No. 53 Shangnan Road, Shangjiao Community, Chang'an Town, Dongguan City
