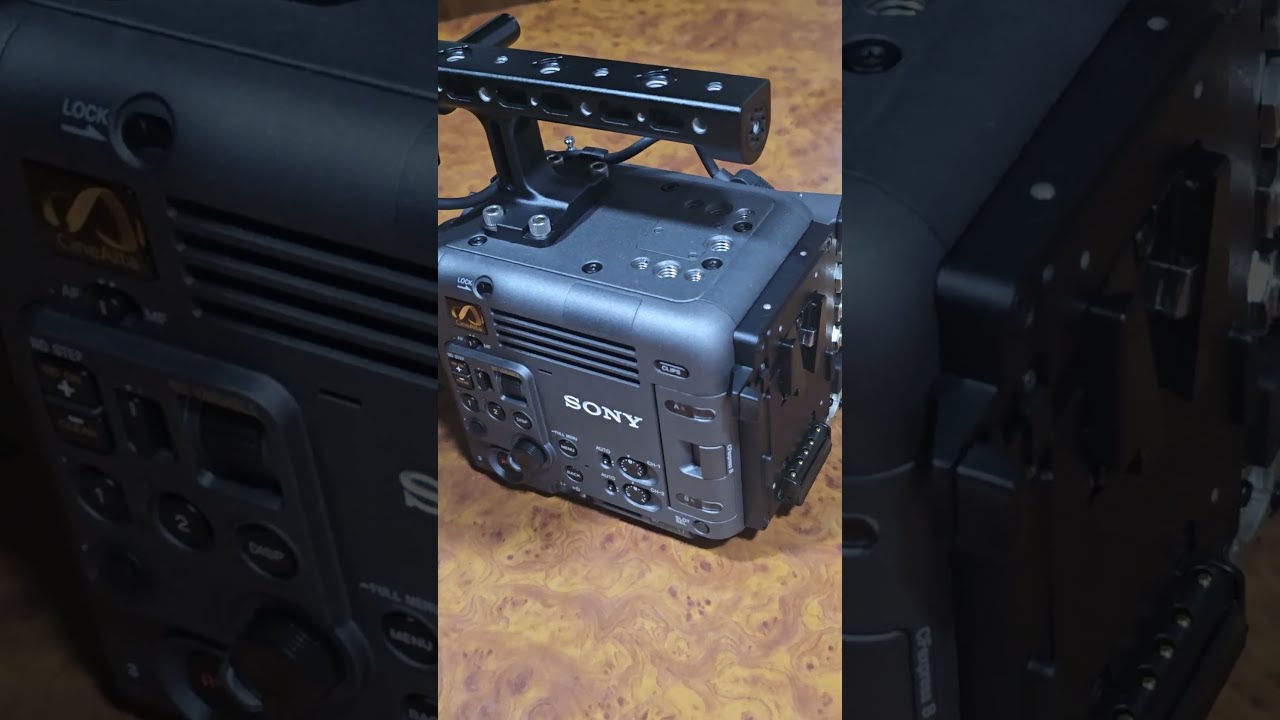

Versatile, lightweight, and compact full-frame 8K cinema camera with 16 stops of latitude, image stabilisation for PL and E-mount lenses. Easily configurable for solo and team production

Mass
Approx. 2.9 kg (6 lb 6.3 oz) (body, PL-mount
adaptor)
Approx. 2.4 kg (5 lb 4.7 oz) (body only,
excluding PL-mount adaptor)
Dimensions
See page 146.
Power requirements
12 V DC (11 V to 17 V)
Power consumption
Unit nominal power consumption: Approx.
50.0 W (lens, 6K 17:9, 59.94P,
X-OCN LT recording, auto fan,
excluding grip remote control and
peripheral devices)
Unit maximum power consumption: Approx.
66.0 W (lens, 6K 17:9, 59.94P,
X-OCN LT recording, 40 °C (104 °F)
environment, ND filter (1/4), proxy
recording on, Wi-Fi on, auto fan,
including grip remote control and
peripheral devices)
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Continuous operating time
Approx. 100 minutes (when using BP-GL95B)
Recording format (video)
X-OCN(LT)
XAVC H Intra HQ
XAVC H Intra SQ
XAVC H Long
XAVC Intra
XAVC Long
Recording format (audio)
LPCM 24-bit, 48 kHz, 4-channel
Recording frame rate
X-OCN(LT)
FF 8.6K 17:9
29.97P, 25P, 24P, 23.98P
FF 8.6K 16:9
29.97P, 25P, 23.98P
FFc 6K 17:9/S35 5.8K 17:9/S35c 4K 17:9
59.94P, 50P, 29.97P, 25P, 24P,
23.98P
FFc 6K 16:9/S35 5.8K 16:9
59.94P, 50P, 29.97P, 25P, 23.98P
XAVC H Intra HQ
8192×4320/29.97P, 25P, 24P, 23.98P
7680×4320/29.97P, 25P, 23.98P
XAVC H Intra SQ
8192×4320/29.97P, 25P, 24P, 23.98P
7680×4320/29.97P, 25P, 23.98P
XAVC H Long
7680×4320/29.97P, 25P, 23.98P
XAVC Intra
4096×2160/59.94P, 50P, 29.97P, 25P,
24P, 23.98P
3840×2160/1920×1080/59.94P, 50P,
29.97P, 25P, 23.98P
XAVC Long
3840×2160/1920×1080/59.94P, 50P,
29.97P, 25P, 23.98P
Recording/playback time
See page 116.
Camera Section
Imaging element
35 mm full-frame equivalent, single-chip
CMOS image sensor
Number of pixels
57.0M (total)
Auto focus
Detection method: Phase detection/contrast
detection
Internal ND filters
CLEAR: OFF
Linearly variable ND: 0.6 (1/4) to 2.1 (1/128)
ISO sensitivity
ISO 800/3200 (Cine EI mode, Base ISO, D55
Light source)
Lens mount
PL-mount (with PL-mount adaptor)
E-mount (without PL-mount adaptor)
Flange focal length
PL-mount: 52 mm
E-mount: 18 mm
Latitude
16 stops
Shutter speed
1/8000 sec. to 64F (23.98P)
Shutter angle
5.6° to 360°, 2 to 64 frames
White balance
2000 K to 15000 K
Gain
–3 dB to +18 dB (1 dB increments)
Audio Section
Sampling frequency
48 kHz
Quantization
24-bit
Frequency response
XLR input MIC mode: 20 Hz to 20 kHz (±3 dB
or less)
XLR input LINE mode: 20 Hz to 20 kHz (±3 dB
or less)
Dynamic range
XLR input MIC mode: 80 dB (Typical)
XLR input LINE mode: 90 dB (Typical)
Distortion
XLR input MIC mode: 0.08% or lower
(–40 dBu input level)
XLR input LINE mode: 0.08% or lower
(+14 dBu input level)
Built-in speaker
Monaural
Internal microphone
Monaural
Input/Output Section
Inputs
INPUT 1/2:
XLR type, 3-pin, female
LINE / MIC / MIC+48V switchable
MIC: Reference –30 dBu to –80 dBu
TC IN:
BNC type
REF IN:
BNC type
Outputs
SDI OUT 1:
BNC type, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B),
HD-SDI
SDI OUT 2:
BNC type, 3G-SDI (Level A/B), HD-SDI
Headphones (stereo mini jack):
–16 dBu (reference level output, maximum
monitor volume, 16 Ω load)
HDMI:
Type A, 19-pin
TC OUT:
BNC type
REF OUT:
BNC type
Other
DC IN:
XLR type, 4-pin male (1), 11 V to 17 V
REMOTE:
2.5 mm, 3-pole sub-mini type
Grip remote control connector:
3.5 mm, 4-pole mini jack
USB-C:
USB 3.2 Gen 1
VF:
Dedicated 40-pin
Network connector:
RJ45 type
Handle connector:
Dedicated 40-pin
Display Section
Viewfinder (LCD)
Screen size
8.8 cm (3.5 inch) diagonal
Aspect ratio
16:9
Number of pixels
1280 (H) × 720 (V)
Media Slot Section
CFexpress Type B card slot (2)
Utility SD card slot (1)
Wireless LAN
Supported standards*
IEEE 802.11a/b/g/n/ac (WW279317 model)
IEEE 802.11b/g/n (WW057783 model)
Frequency band*
2.4 GHz/5 GHz (WW279317 model)
2.4 GHz (WW057783 model)
Refer to the nameplate on the bottom of the unit.
Supported security protocols
WEP/WPA-PSK/WPA2-PSK
Connection method
Wi-Fi Protected Setup™ (WPS)/Manual
Access method
Infrastructure mode
Supplied Accessories
Handle (with viewfinder arm) (1)
Handle mounting screws (4)
LCD monitor (1)
Viewfinder loupe (1)
Viewfinder mount adaptor (1)
Shim (circular) (1)
Shim (1/3 arc) (15)
E-mount cap (1)
PL-mount cap (1)
Before Using This Unit (1)
Warranty booklet (1)
