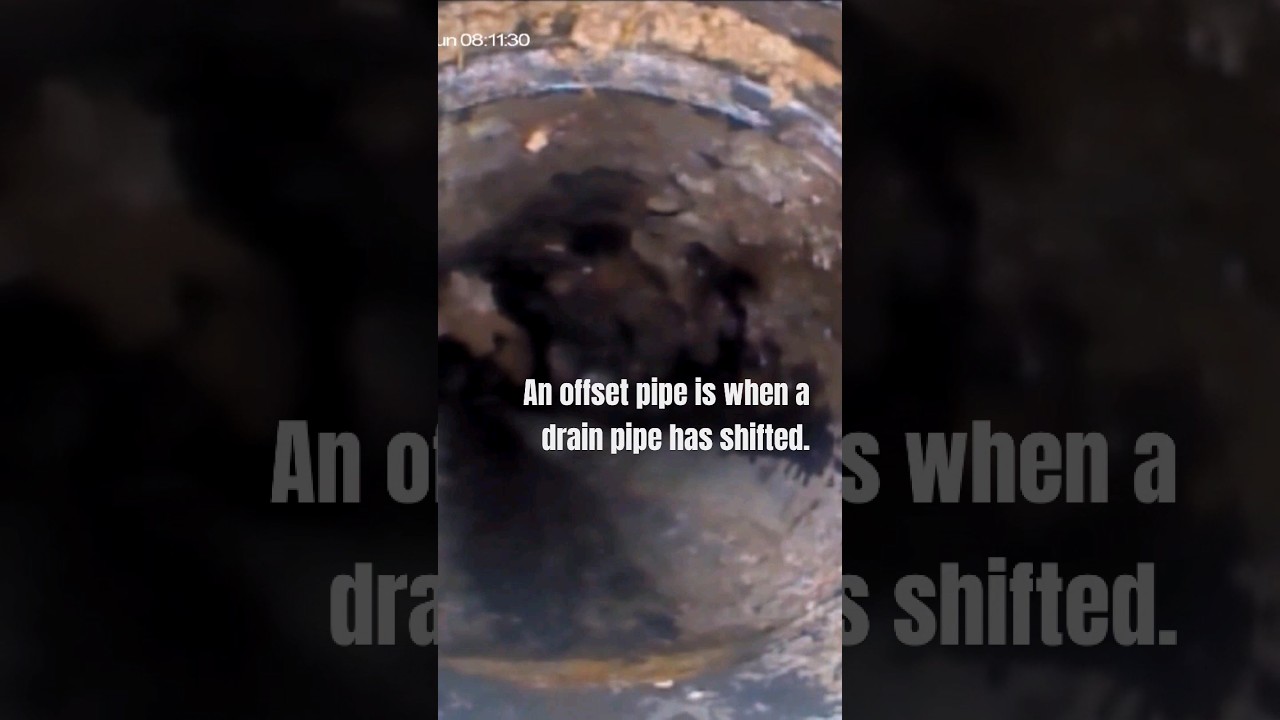

Скачать или смотреть An offset pipe means the pipes have shifted

In plumbing, both uphill and downhill offset pipes are used to create a change in the direction of a drain or sewer pipe while maintaining proper slope for effective drainage. Let's explore the differences between these two types of offset pipes in a 3-inch ABS drain pipe:

Downhill Offset Pipe:
A downhill offset pipe is used when you need to lower the elevation of a drain line from its original position. This is typically done to accommodate structural elements, obstacles, or to create a gradual slope for efficient drainage. In a downhill offset, the new section of the pipe is installed at a lower elevation than the original pipe. The slope of the pipe should still maintain the minimum required slope for proper drainage, usually around 1/4 inch per foot (or 2% slope) for a 3-inch ABS drain pipe.

Uphill Offset Pipe:
An uphill offset pipe is used when you need to raise the elevation of a drain line from its original position. This might be necessary to clear obstacles or to connect to a higher plumbing fixture or drain. In an uphill offset, the new section of the pipe is installed at a higher elevation than the original pipe. It's important to note that an uphill offset goes against the natural flow of gravity, which can potentially lead to drainage issues if not properly designed and installed. The uphill pipe section still needs to have a slope, albeit a reduced one compared to the standard slope, to facilitate drainage.

In both cases, maintaining the proper slope of the pipe is crucial for ensuring effective drainage and preventing the accumulation of debris or wastewater. For a 3-inch ABS drain pipe, the slope should be consistent with local plumbing codes and standards.

When working with offset pipes, it's essential to ensure proper alignment, sealing, and support to prevent leaks, blockages, and potential issues with water flow. It's recommended to consult with a plumbing professional or refer to plumbing codes and guidelines specific to your region to ensure your offset pipe installations are done correctly and meet the necessary requirements.
