Hello,

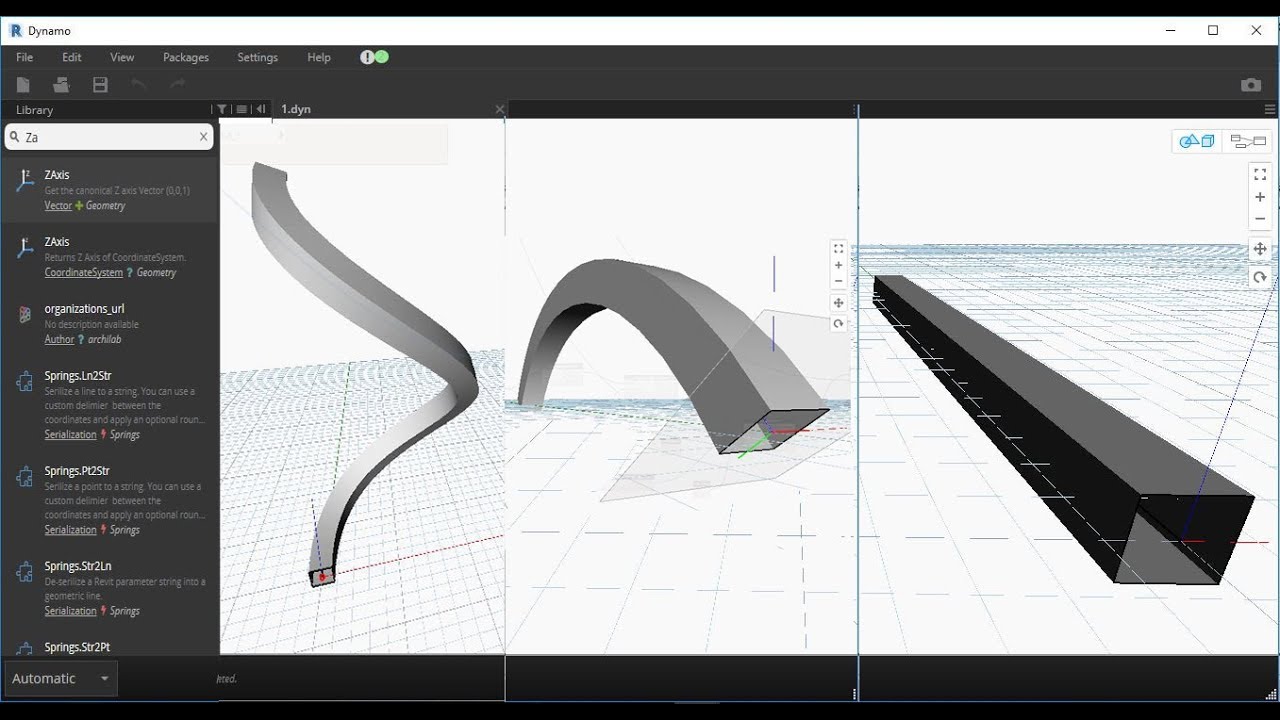

This video will show you how to create a basic Dynamo Sweep on three different curves (straight line, Three-point arc, and a NURBS curve).

In each video, I will explain the details and all other obstacles that might prevent you from achieving your goal.

I will also explain the idea of making custom node, to make a quick rectangle (polygon) on perpendicularly on the beginning of your curve, also demonstrating all other possibilities of the profile locating and orienting incorrectly on the path itself.

Finally, I will show you a complex helix with a polygon sweep along with it. There will be a couple of new nodes explained here in this video, here is a list:

1- Circle.ByPlaneRadius

2- CoordinateSystem.ByPlane

3- CoordianteSystem.ZAxis
