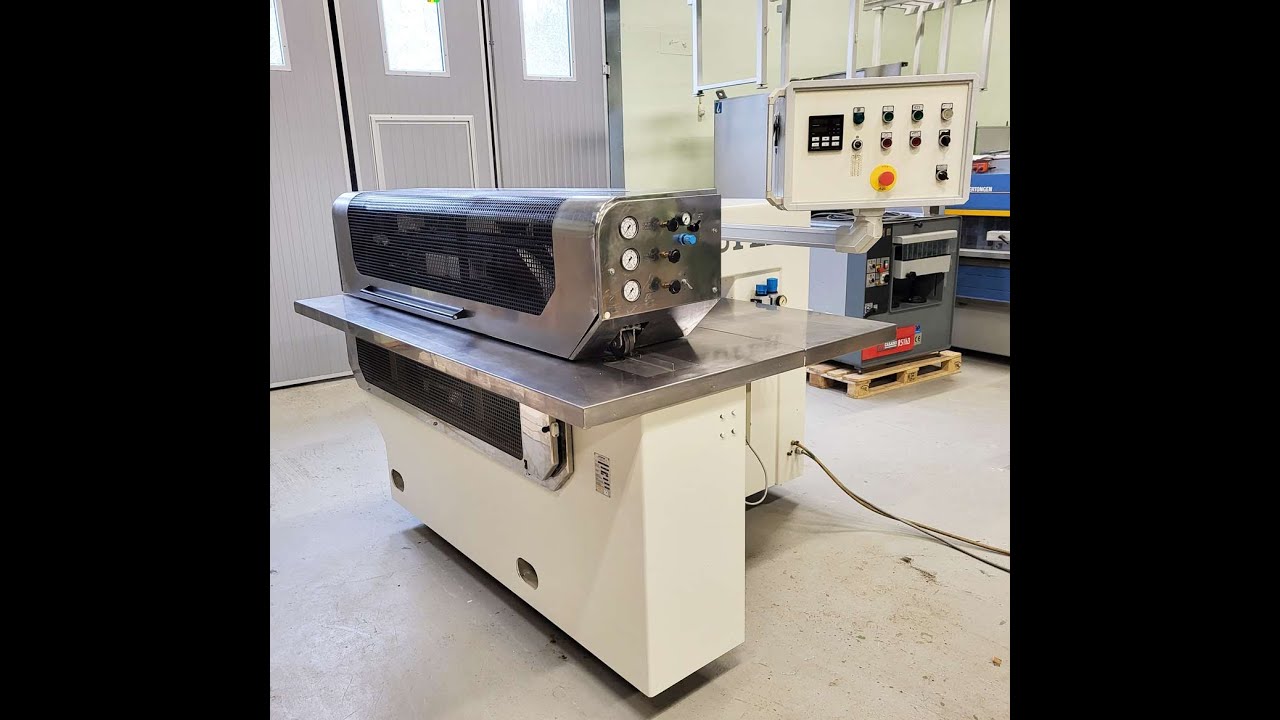

Скачать или смотреть USED KUPER VENEER SPLICING Model: KUPER FL / INNOVATION 1250 For Sale

Model: FL/ INNOVATION 1250

Manufacturer: KUPER Heinrich KUPER GmbH & Co.KG.
Year: 2009
Manufacturer Country: Germany
Condition: Excellent Condition (A machine in this condition and specification is hard to find!)
Listing ID: KUPER 1250
Price: On demand


Description:
The KUPER FL/Innovation is the bestseller within the wide range of the KUPER glueing Machines.
Veneers which are exposed to high temperatures and tensions during the further processing (e.g. wrapping
or membrane press technology) are joined preferably with urea glue.
To fulfil this task a special process of heat supply and simultaneous pressure over a longer transport section is necessary. Especially when processing pre-glued veneers a high capacity can be reached. For small series or special applications, the KUPER FL/Innovation is delivered with an integrated glueing device as the standard component.
The KUPER glue application system featuring the almost horizontally installed glue application disc guarantees a precise glue application avoiding glue spots on the joint up to 100 %. Using this glue application system veneers in thicknesses of approx.

0.3 – 1.5 mm can be spliced.


Specific features

Integrated glue-application

Solid steel base construction
Resistant PUR paint
Start-stop function by light-sensor
Disc-drive infeed
Direct-drive lubrication-free chains transport
Patented slide rail system
Extremely narrow, individually powered heating zone.
Clearly arranged operating panel for control of all main operating elements.


Technical Data
Throat depth: 1250 mm

Veneer thickness: approx. 0.3 to 3mm*
With external pre-gluing:approx. 0.3 to 5.0mm*subject to material tests
Minimum Veneer length: from approx. 350 mm
Veneer strip width: from approx. 45 mm
Feed speed: approx. 20 - 50 m/min
Length of heating zone: 1200 mm
Heating Temperature: Up to 220 C⁰
Operating voltage: 400 V, 50 cycl, 3 Ph+N+PE
Total connected load: approx. 9.3 Kw.
Average power consumption: approx. 5 KW
Air consumption: approx. 30 NL/ Min at 6 bar
Floor space: 2370 x 2210 x 1470 mm

Compact Cooler
The compact cooler is directly integrated in the machine frame underneath the glue pot.
The cooling of the glue pot is considerably prolonging the pot life of the glue. The required temperature can be adjusted on a regulator.
