Скачать или смотреть Tempo One How to tune the RF Deck 80m - 10m bands and C40 replace and C55 voltage measurements

This Henry Tempo One was hit by lightening and left for dead for ? Years.
I got it from eBay.

Upon first inspection the antenna relay had a few melted contacts from the strike where the antenna contacts were in the relay.

I never could get 40m to receive. Still can't.

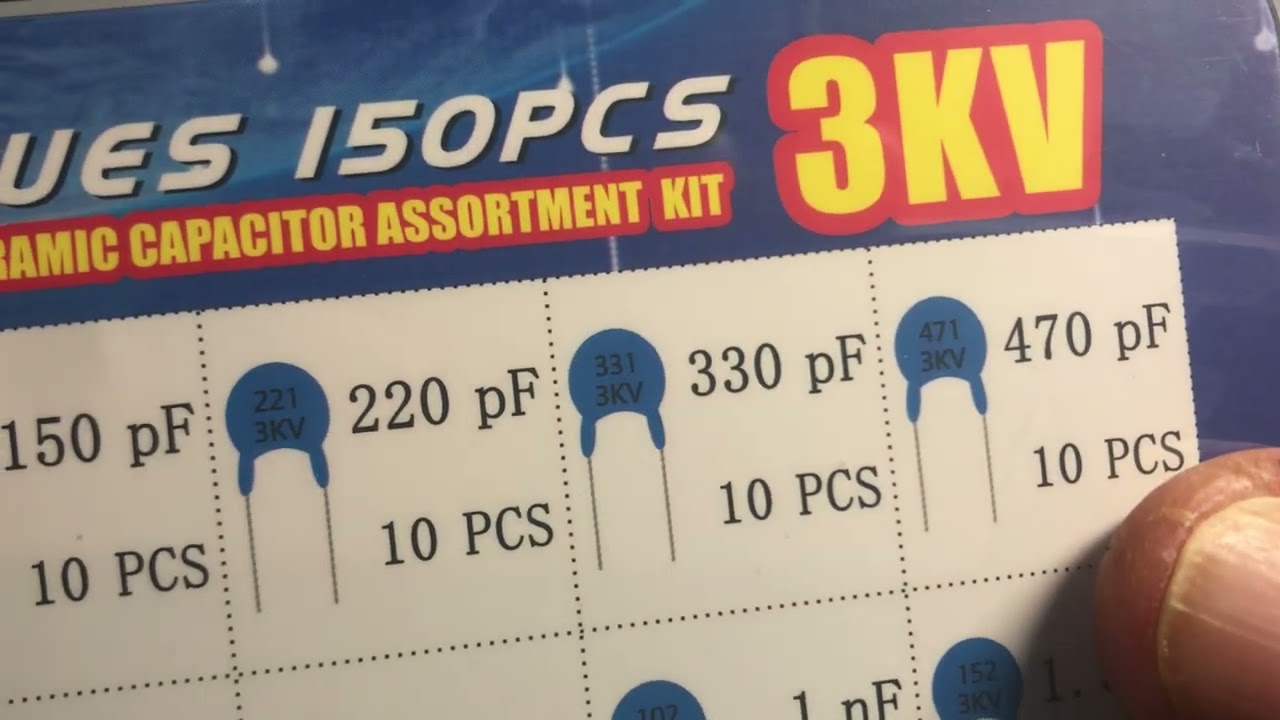

I finally fixed 15 meters receive by increasing C40 to 330 PF and that allowed the coil for 15m to resonate ah and there was a contact on the TANK COIL switch for 15 meters which was distorted by the lightening strike and not making contact. So 15 meters had two problems - coil would not resonate and no resonance from the tank circuit either. Fixed the contact on the switch wafer controlling the taps on the tank coil and replaced c40 which was a 200pf mica cap with a china cap from Bojack which is 330pf at 3KV.

The 15 meter coil then lined up as did 10 meters.

You can look at the complete RF deck introduction, location of coils and tune up in this video.

This video is also a transmit demo

Good luck with that.
