Скачать или смотреть How do I assemble a manually height-adjustable table (item MB Building Kit System)?

This video shows you step by step how to assemble a manually height-adjustable table using the item MB Building Kit System.

How does manual height adjustment work with the item Table Column Set 8 80x40 K?

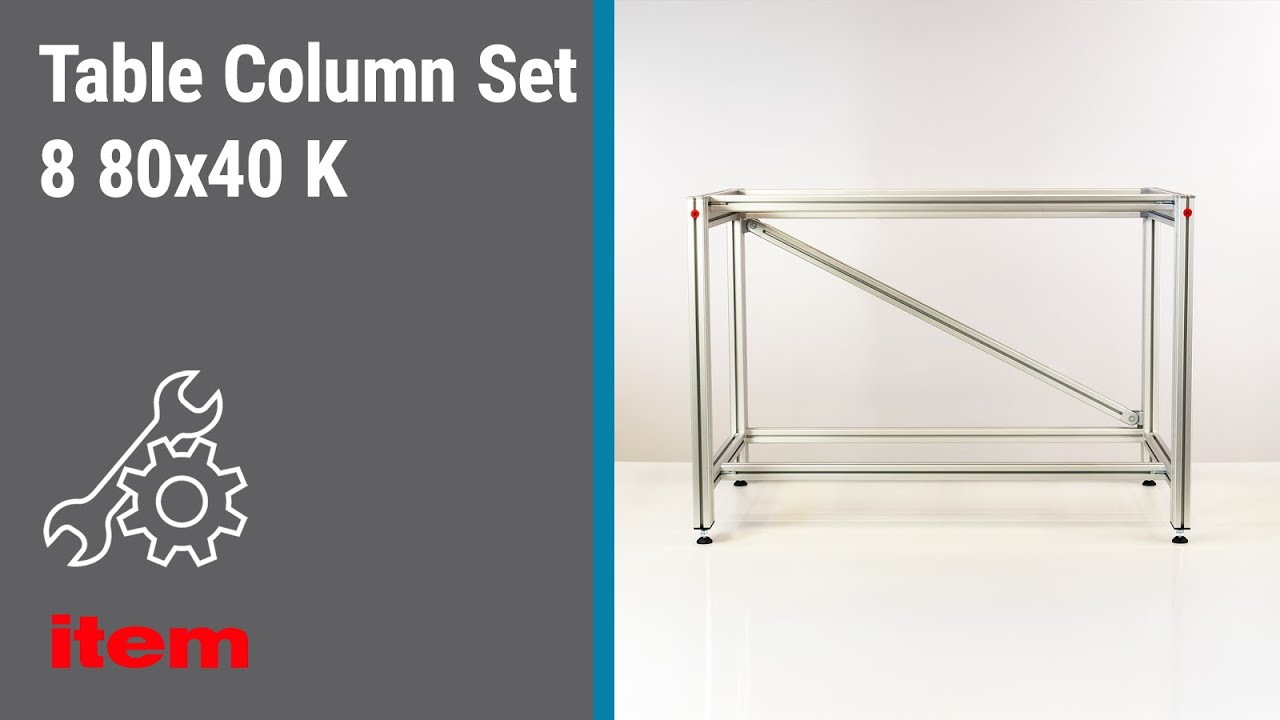

The Table Column Set 8 80x40 K can be used to create manually height-adjustable work benches without the need for electricity. The crank drive with concealed synchronous shaft (Tube D16 SW6) enables infinitely variable height adjustment up to 300 mm. The design is stable, can bear loads of up to 120 kg and can be configured flexibly.

What are the advantages?
Self-sufficient: no power connection required
Ergonomic: height adjustment via hand crank
Modular: compatible with the item Work Bench System
Variable: table sizes up to 1800 x 750 mm
Stable: Profiles 8 80x40 with external grooves

Who is this video suitable for?
The video is aimed at users who are planning ergonomic, manually height-adjustable work benches, e.g. for production, assembly, maintenance or laboratory work, especially without a fixed power supply.

Video content at a glance:

00:00 Introduction
Presentation of the fully assembled table.

00:04 Step 1: Component overview
Overview of all components required for assembly.

00:10 Step 2: Retract table columns
All four table columns are fully retracted using a hand crank.

00:29 Step 3: Mounting the gearbox on table column 1
Insert the gearbox with the shaft correctly aligned into the table column and screw it in place (A/F 5 mm, 14 Nm).

01:03 Step 4: Mounting the gearbox on table column 2
Mount the gearbox in the same way as in step 3 (A/F 5 mm, 14 Nm).

01:17 Step 5: Mount the longitudinal profile to connect table columns 1 and 2
Connect the table columns with profile 8 80x40 and internal tube D16 SW6. Insert the automatic fastener flush, do not change the table height. Mount with A/F 5 mm, 14 Nm.

03:19 Step 6: Mount the longitudinal profile on the foot side
Mount profile 40x40 between table columns 1 and 2 (step spacer profile 74 mm, A/F 5 mm, 14 Nm).

03:50 Step 7: Mount cross profiles for coupling
Mount two cross profiles to the gearboxes of table columns 1 and 2 (A/F 5 mm, 14 Nm).

04:31 Step 8: Mount longitudinal profile for reinforcement
Mount profile 40x40 between the cross profiles from step 7 (step spacer profile 40 mm, A/F 5 mm, 14 Nm).

05:04 Step 9: Mount table columns 3 and 4
Mount the table columns to the cross profiles from step 7 (A/F 5 mm, 14 Nm).

06:20 Step 10: Mount cross profiles for side reinforcement
Mount one cross profile each for reinforcing the sides
(step spacer profile 74 mm, A/F 5 mm, 14 Nm).

07:52 Step 11: Assemble the longitudinal profile for table columns 3 and 4
Assemble the 40x40 profile between the cross profiles from step 10 (step spacer profile 120 mm, A/F 5 mm, 14 Nm).

09:03 Step 12: Install rear diagonal brace
Install diagonal brace with two hinges for reinforcement (step spacer profile 10 mm, A/F 5 mm, 25 Nm).

10:17 Step 13: Function test
Check height adjustment by cranking manually.
