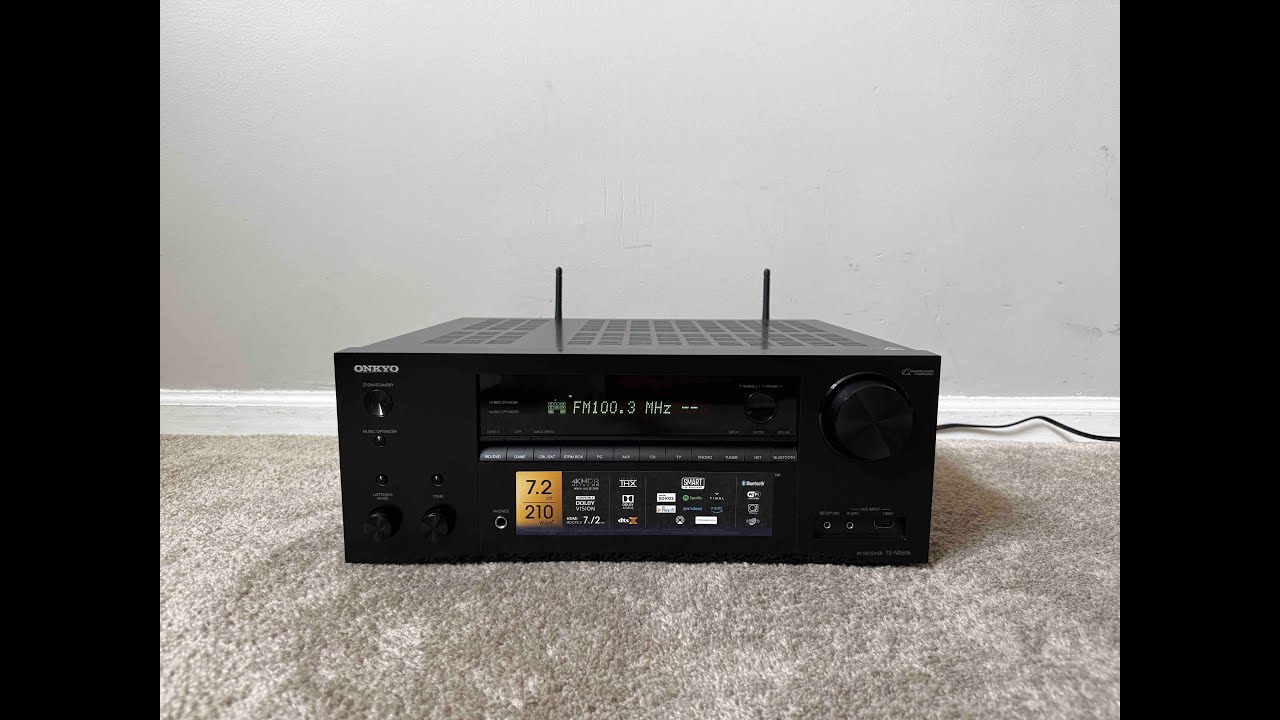

Скачать или смотреть Onkyo TX-NR696 7.2 4K Ultra HD Bluetooth WiFi Home Theater Surround Receiver

Onkyo TX NR696 7.2 Channel 4K Ultra HD Bluetooth WiFi Home Theater Surround Audio Video AV Receiver with Wi-Fi®, Bluetooth®, Apple® AirPlay®, and Dolby Atmos®

Specs:

Power and processing:
7-channel amplifier
100 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
Dolby® and DTS® surround sound decoding
Dolby Atmos® processing for use with in-ceiling or "height" speakers for more enveloping surround sound
DTS:X™ for an immersive, 3-dimensional soundstage
THX® Certified Select™ theater reference sound
AccuEQ Advance 9-point automatic speaker calibration optimizes your system's sound for your room (microphone included)
AccuReflex technology aligns phase of up-firing "height" speakers with the sound coming directly from your other speakers

Digital and streaming music options:
built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
includes support for Pandora®, Spotify®, TIDAL, Deezer, and TuneIn (subscription required for some services)
Chromecast built-in for wireless music streaming from compatible devices
allows voice control through Google Home
compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
DTS Play-Fi lets you stream music and create a multi-room music system with other Play-Fi speakers and components
built-in Bluetooth for wireless music streaming from a compatible phone, tablet, or computer
Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
plays high-resolution digital music files via USB storage device or a networked computer
PCM-based files up to 24-bit/192kHz resolution; DSD files up to 11.2 MHz

Multi-room audio:
dual-room/dual-source output
powered stereo audio output for 2nd room
using powered 2nd-room output allows 5.2-channel home theater in main room
line-level 2nd-room output for use with a separate amplifier or powered speakers

Audio performance features:
high-current amplifier design
32-bit/384kHz Asahi Kasei AK4458 digital-to-analog converter for clear sound from digital sources
Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
bi-amp capability with compatible front speakers by reassigning surround back channels
VLSC (Vector Linear Shaping Circuitry) minimizes noise across front left and right channels

Connections:
HDMI audio/video switching: 7 in, 2 out (includes front-panel input)
HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (HDCP 2.3-compatible with free future firmware update)
HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
supports HDR10, Dolby Vision™, and HLG
digital audio inputs: 1 optical and 1 coaxial
5 analog stereo audio inputs (including front-panel 3.5mm minijack)
MM (moving magnet) phono input for connecting a turntable
preamp outputs for 2 powered subwoofers
rear-panel USB port for audio playback from USB storage devices
Ethernet port for network connection
outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Zone 2 L/R)
receiver can power a maximum of seven channels at once

General features:
free Onkyo Remote app lets you use your Apple or Android™ device as a Wi-Fi remote
4K/60p and 3D video pass-through
HDMI standby pass-through allows access to all HDMI connected devices without having to power on the receiver
Phase-Matching Bass Boost optimizes low frequencies to preserve clarity with vocals and movie dialogue
40 AM/FM presets
remote control
17-1/8"W x 6-13/16"H x 14-15/16"D
weight: 22 lbs.
