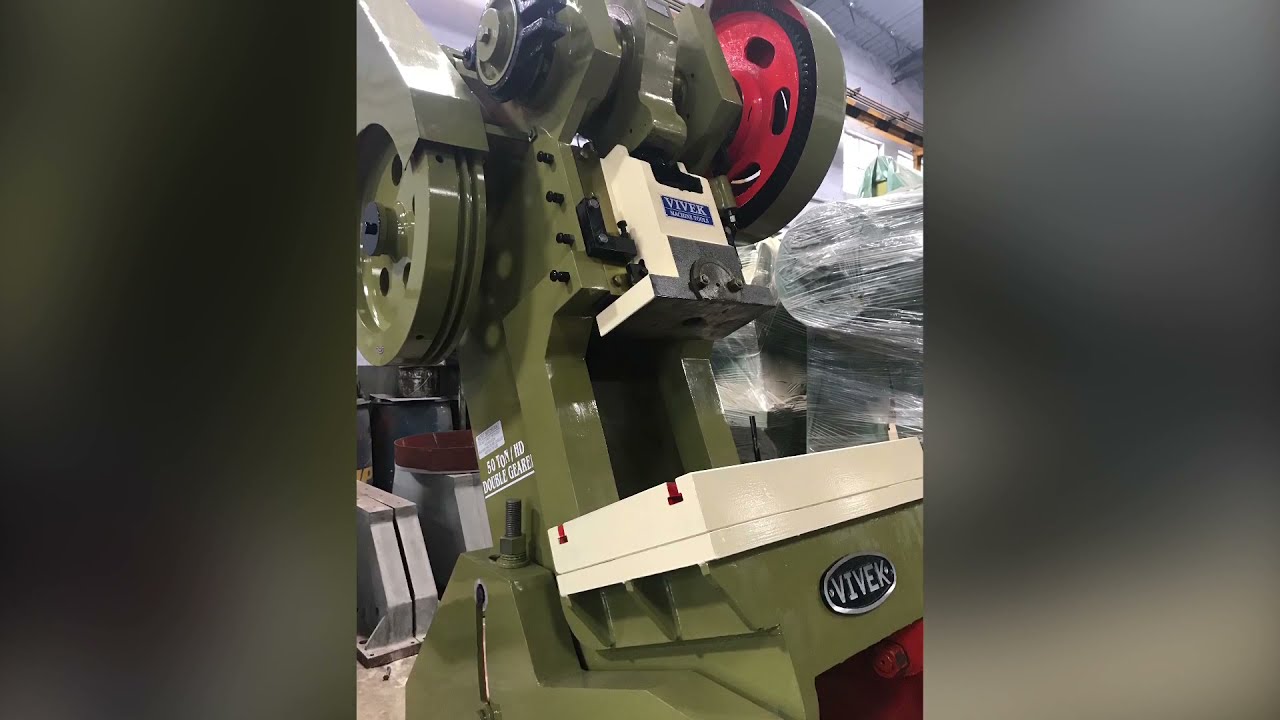

Скачать или смотреть Inclinable Type Power Press Machine

C Type Heavy Duty
Capacity 5 Ton To 300 Ton

TYPES & CAPACITY :

Presses are available in capacities of 5 to 300 tonnes in single geared/ double geared and un-geared types "C" type and pillar type models. and also available inclinable type and permanently inclinable type models these machines are subjected to stringent performance testing using advanced testing devices to ensure high performance, increased productivity & reliability.


FRAME :

The robust frame is fabricated from solid steel plates with heavy cross ribing to main housing & "C" Supports for perfectly balanced distribution of stress over the cross section elimination deflection and vibration and thus inproving die & machine life.


CRANK SHAFT AND BEARINGS :

Eccentric crank shaft is machined form en-9 steel round bar. it has been groung finished on bearing surface. the main crank shaft & eccentric bearings are covered, with high quality of phosphor-bronze or gun metal bushes and lubrication oil grooves for smooth functioning.

CLUTCH & KEYS :

Rolling key type clutch is manufactured from WPS material duly heat treated to provide long trouble free services.


STROKE ADJUSTMENTS :

The unique feature of adjustable stroke enable the press to perform all kinds of operations by employing short stroke for blanking & forming operations.


BRAKE :

Spring operated poerful heavy duty brakes is of release type works according to timing adjustment to provide longer life to the brake. it is operated bt cam wheel or brake wheel.


RAM & RAM SLIDE :

Ram Slides is made from seasonal high grade casting duly ground for friction free travel through slides, ensuring longer life of die and easy operation.


ACCESSORIES (STANDARD) :

Motor stand, motor pully, main gear cover, fly wheel cover, stude drive for scruew.
