#linttop publish the video of cable high voltage test equipment. Six cable test system are introduced in this video, which are
1. AC Resonance PD Free Test System
This system application conform to XLPE cable power frequency voltage test and PD test requirement, and is suitable for PD test, voltage test and PD fault location test for XLPE cables before leaving factory.
*Two structures of HV resonance reactor:

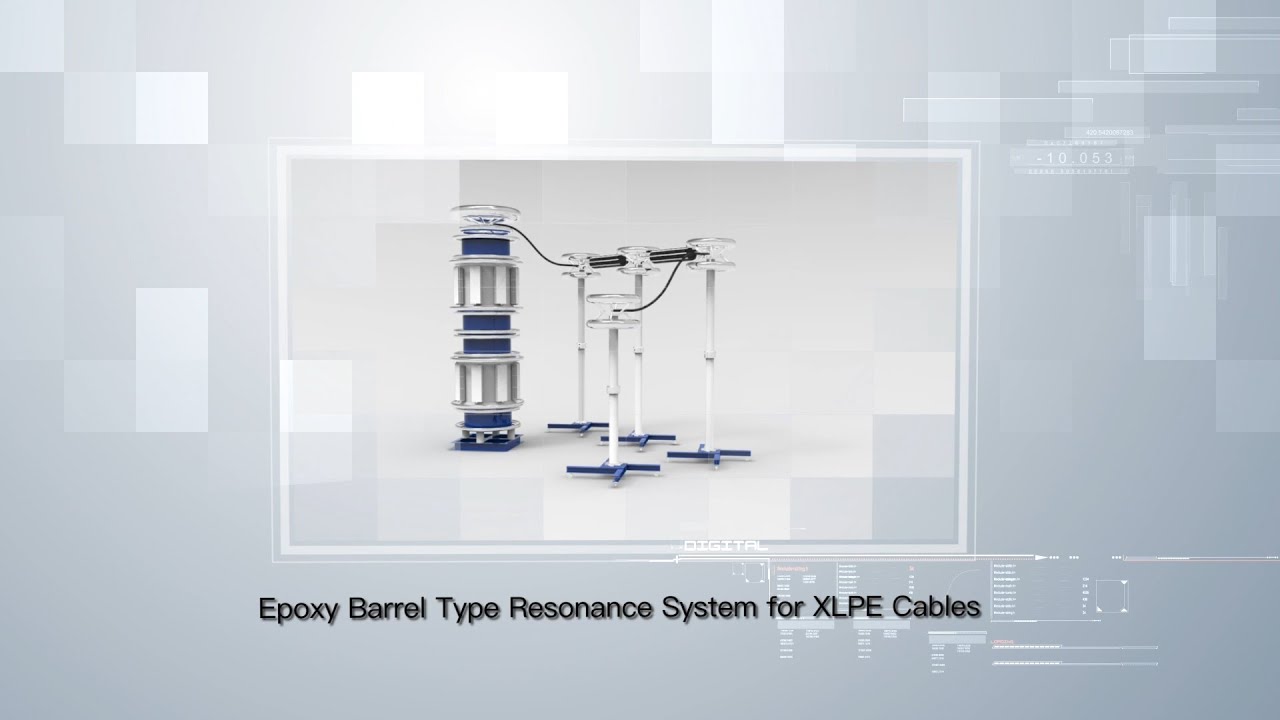

-Epoxy Barrel Type Resonance System for XLPE Cables
-Tank Type Resonance System for XLPE Cables
The HV resonance reactor is main component of thr system. It forms series resonance loop with cable capacitance. When inductance of reactor equals the capacitance of cable, resonance is achieved, and system can output high voltage.
--HV Resonance Reactor
--HV Filter
--Water Test Terminal

HV Shielding Test Room
The HV partical discharge hall is mainly used for power transformer, HV inductor, arrester, HV switch, HV XLPE cable and so on.
You will see the actual pictures of HV Shielding Test Hall including Inside the HV Shielding Test Room and Digital Control System operation film.

Cable Transport Trolley

Cable Test Termination
--Oil Test Terminal
--Water Test Terminal

2. AC Voltage Test System
Epoxy Barrel Test Transformer
3. HV DC Test System
DC Generator
HV Silicon
4. Impulse Voltage Test System
Impulse Voltage Generator
Voltage Divider
Control Desk
5. Cable Heating Test System
6. HV Tanδ Measuring Bridge
Tanδ Measuring Bridge
