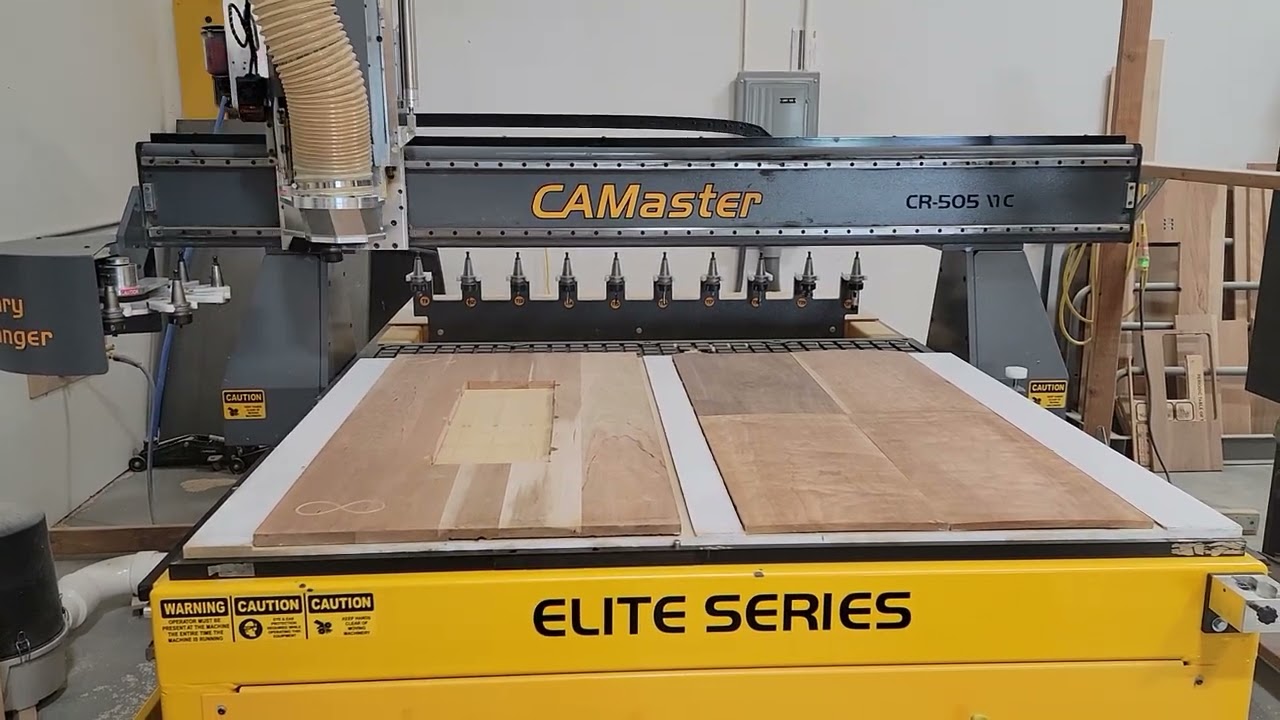

Скачать или смотреть 5' x 5' CAMaster Cobra Elite CR505 CNC Router, 2020 - Tool Changer, Dust Collector

Table Size: 5' x 5'
Spindle: 12 HP HSD ATC Spindle
ATC: 10 Tools
Z Axis Clearance: 10"
Drive System: Helical rack and pinion
Motors: AC servo motors with planetary gearboxes for high-speed performance
Speed: 2,500 IPM; cut speed up to 1,500 IPM
Table Top: Phenolic vacuum table
Frame: Heavy-duty steel construction
Controller: SmartCore Digital PLC Controller

15 HP FPZ Regen Vacuum Hold-Down System. Includes:
15 HP Regen Vacuum Pump. Pump runs off of 208-230/460 V 3 Phase Power.
Safety Valve
Inline Vacuum Filter
Inlet Vacuum Filter
Vacuum Gauge
Vacuum Grided TableTop and Plumbing w/Valves for easy connection to Vacuum Pump
Auto Relief Valve to Engage and Disengage Vacuum On Table Controlled Via G-Code

Equipped With:

Brushless AC Servo Drive System
Dual Drive on Y Axis
Z Axis Brake
2” Heavy Duty Precision Rails & Bearings on all Axis
Industrial Steel Welded Frame
All Steel Gantry
All-Steel Gusseted Side Supports
High Precision Planetary Gearboxes
Helical Rack & Pinion
Automatic Tool Measure Switch
Custom Built Monitor Stand with On/Off, Cycle Start, Cycle Stop and E-Stop
Buttons and USB Port
High Speed Visual CNC Control System (WinCNC)
Windows 10 PRO Control Computer
Touch Screen Monitor, Keyboard, & Mouse
V Carve Pro Design Software
Upgraded to Phenolic Table Top
