Peavy Mark VI Bass XP Seriers Bass Amp Head & 15inch Cab

Peavey Mark VI XP Series 400w bass amplifier head
400w into 2ohm load, or 250w into 4ohm. Either way, paired with a decent speaker cab this will be powerful enough for most band situations.

This was my main rig I used from 2003 until 2012 since then its been sat collecting dust. I still have the original manual which is dated 1994 so this is a real genuine mid 90's beast.
The head weighs in at a whopping 40 kgs!!!

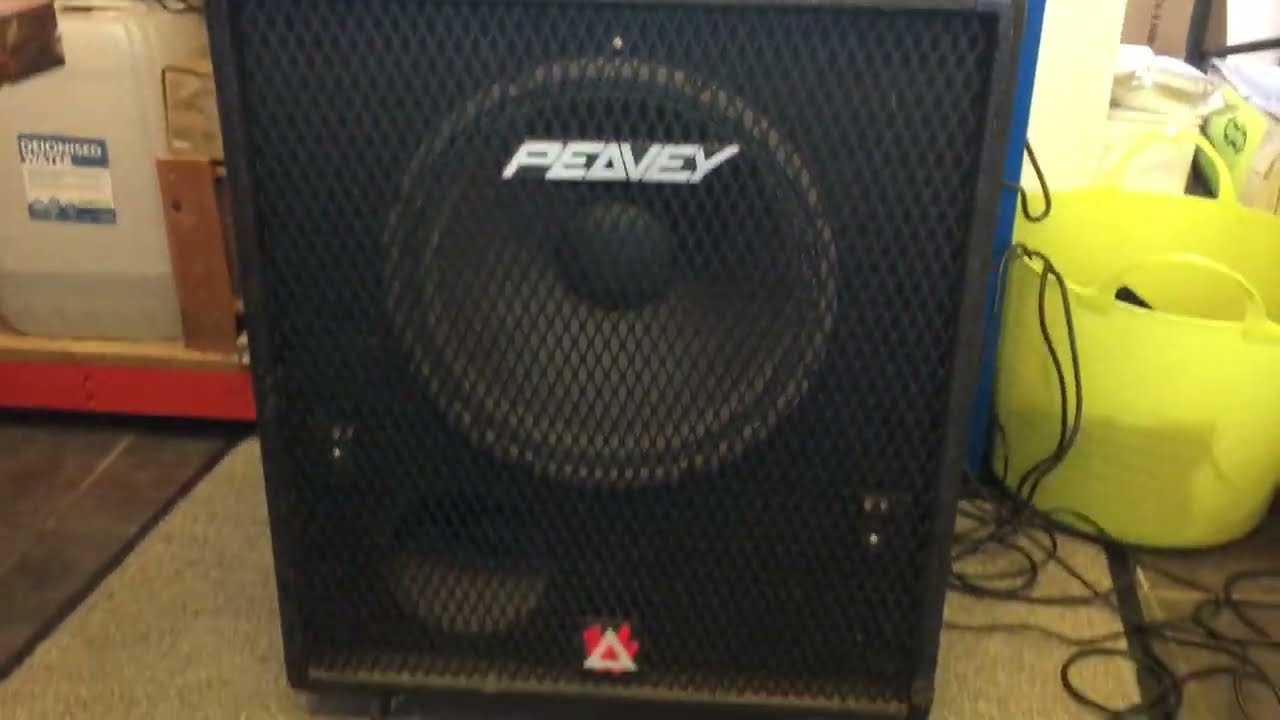

Originally it had a Peavy black widow 15" sub but it failed and was replaced with an Eminence 15" sub.

It is a little bit gig worn but still works just tested it and all still working.

I dont have the footswitch for the chorus.

SPECIFICATIONS

POWER AMP SECTION
Rated Power & Load:
250 W RMS into 4 ohms
400 W RMS into 2 ohms with
DDT compression

Power @ Clipping: (Typically)
(1 kHz, 120 V AC line)
290 W RMS into 4 ohms @ 1% THD
320 W RMS into 4 ohms @ 5% THD

Frequency Response:
+0, -2 dB 20 Hz to 30 kHz @ 240 W RMS into 4 ohms

Total Harmonic Distortion:
Less than 0.2%, 100 mW to 240 W RMS, 20 Hz to 10 kHz, 4 ohms (typically below 0.1 %)

DDT Dynamic Range:
Greater than 20 dB

DDT Maximum THD:
Below 0.5% THD for 6 dB overload
Below 1% THD for 16 dB overload

Hum & Noise:
Greater than 98 dB below rated power

Power Consumption:
800 W, @ 120 V AC 50/60 Hz

PREAMP SECTION
The following specs are measured @ 1 kHz with the low, high, graphic EQ @ 0 dB
Push Bright & Push Punch
Out (Off)
Post Gain @ 10
Push Chorus Off
Nominal Levels are with Pre Gain @ 5
Minimum Levels are with Pre Gain @ 10

Preamp High Gain Output:
Impedance: High Z, 220 K ohms

Nominal Input Levels: -17 dBV,140 mV RMS
Minimum Input Level: -37 dBV, 13 mV RMS
Maximum Input Level: +10 dBV, 3 V RMS

Preamp Low Gain Input:
Impedance: High Z, 44 K ohmS
Nominal Input Level: -11.4 dBV, 270 mV RMS
Minimum Input Level: -32 dBV, 25 mV RMS
Maximum Input Level: +16 dBV, 6 V RMS

Preamp Output:
Load Impedance: 1 K ohms or greater
Nominal Output Level: 0 dBV, 1.0 V RMS (at the DDT limit of 250 W RMS output)
Maximum Output Level: +19 dBV, 9 V RMS

Power Amp Input:
Impedance: High Z, 22 K ohms
Designed Input Level: 0 dBV, 1 V RMS
switching jack providing preamp output to power amp input connection when not used)

System Hum & Noise
@ Nominal Input Level:
(20 Hz to 20 kHz unweighted)
Greater than 85 dB below rated power

Equalization:
Low & High: ±15 dB @ 80 Hz & 8 kHz, shelving
9 Band Graphic: ±15 dB @ 40, 80, 160, 340, 660, 1.3 K, 2.6 K, 5 K, 10 K; Peak/Notch
Push Bright: +10 dB @ 7 kHz
Push Punch: Special EQ

Variable Crossover:
Frequency Range: 200 Hz to 2 kHz
Slope: 12 dB/Octave

Crossover High/Chorus
Output: (High Pass Signal)
Load Impedance: 1 K ohms or greater
Nominal Output Level: 0 dB 1.0 volt RMS (at the DDT limit of 250 W RMS output)
Maximum Output Level: +19 dBV, 9 volts RMS

Crossover Low Output:
(Low Pass Signal)
Load Impedance: 1 K ohms or greater
Nominal Output Level: 0 dB, 1.0 volt RMS (at the DDT limit of 250 W RMS output)
Maximum Output Level: +19 dBV, 9 volts RMS

Chorus:
Controls: Depth and rate with push switch
Source: Crossover high pass output signal
Re-Mix: With full range output & high pass output
Footswitch: External single button
