When you’re designing a custom suspension for a rock crawler, mud truck, or desert racer, the components you choose are the difference between a successful run and a catastrophic failure on the trail. Your links are the lifelines of your vehicle's stability, and at the heart of those links are the rod ends. For builders who refuse to compromise on strength, the East West Off Road 1.25" x 1" Rod End Left Hand is the ultimate solution.
This guide explores why the 1.25 inch heim joint has become the standard for extreme duty fabrication and how this specific chromoly unit delivers the reliability you need.
What is a 1.25 x 1 Rod End?
A 1.25 inch rod end—often referred to as a 1 1/4 heim joint or rose joint 1.25—is a massive spherical bearing designed for high-stress applications. The "1.25" designation refers to the threaded shank diameter, which provides exceptional tensile strength. In the fabrication world, this size is often called a "monster heim joint" or "giant rod end" because it dwarfs the standard 3/4" or 7/8" joints used on lighter vehicles.

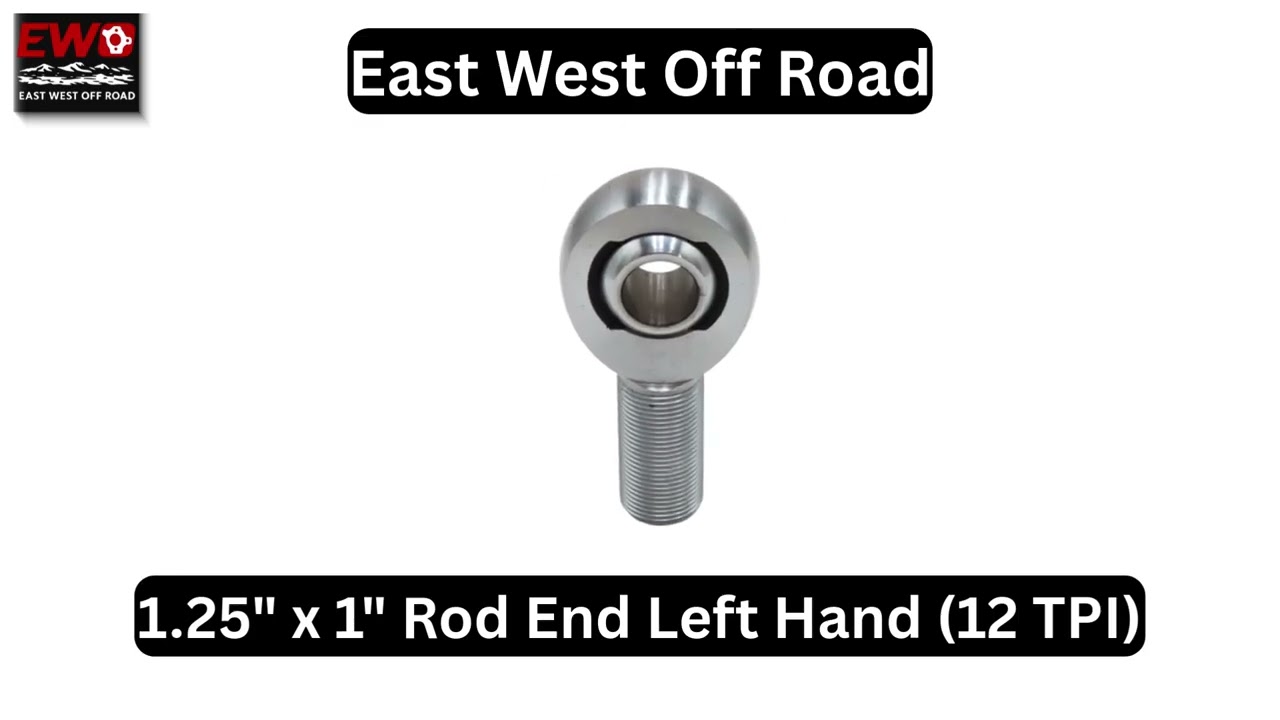

The 1.25 x 1 heim joint configuration features a 1.25 shank 1 inch bore. This means you get the brute strength of a 1.25-inch body paired with a 1-inch hole for the mounting bolt. This "1.25 thread 1 inch hole" design allows you to use massive hardware that won't shear under impact.
The Necessity of a Left-Hand Thread
This specific product is a heim joint left hand (also known as a 1.25 lh heim). Why is this distinction critical?
When building adjustable suspension links—such as lower control arms or 4-link bars—you must have opposing threads on each end of the tube. By installing a reverse thread heim joint on one side and a standard right-hand joint on the other, you create a turnbuckle effect. This allows you to rotate the entire link to adjust its length without removing it from the vehicle.
Without a proper 1.25 left hand rod end, making precise alignment or pinion angle adjustments becomes a labor-intensive nightmare. If you are fabricating custom links, you need to buy a reverse thread rod end to complete the system.
Chromoly Construction: Strength Where It Counts
In extreme off-roading, material quality is non-negotiable. Mild steel simply cannot withstand the dynamic loads of rock bouncing or high-speed desert runs. That is why our unit is a true 4130 chromoly heim joint.
Heat Treated for Maximum Resilience
The body of this 1.25 rod end is crafted from heat-treated 4130 chromoly steel. Heat treatment realigns the metal's grain structure, significantly boosting its tensile strength and fatigue resistance. A heat treated rod end can absorb shock loads that would bend inferior parts.
Hardened Bearing Surface
Inside the housing sits a 52100 bearing steel ball. This component is also heat-treated and hard chrome plated. This ensures a smooth, durable surface that resists wear and corrosion. When you choose a spherical rod end with these specs, you are investing in longevity.
Technical Specifications: 1.25-12 Heim Joint
Let's break down the numbers that make this a true heavy duty heim joint:
Static Load Rating: 76,200 lbs. This immense radial load capacity ensures the joint won't fail under the weight of heavy axles and oversized tires.
Thread Pitch: 1.25-12 (12 Threads Per Inch). This is a 1.25 12 tpi rod end.
Thread Type: 1.25 unf rod end (Unified Fine). Fine threads provide superior clamping force and are less prone to loosening from vibration than coarse threads.
Bore: 1.00". A large bore heim joint accommodates Grade 8 or Grade 9 bolts for maximum shear strength.
Design: 1.25 lh rod end (Left Hand / Reverse Thread).
You can view full specifications and pricing on our product page to ensure this fits your specific needs.
Applications for the 1.25 x 1 Rod End
This extreme duty rod end is the go-to component for:
Rock Bouncers & Crawlers: Lower links take direct hits; a 4130 chromoly rod end is essential to prevent bending.
Mud Trucks: The suction of deep mud puts massive strain on steering; a 1 1/4 rod end provides the necessary safety margin.
Trophy Trucks: Rear trailing arms require the articulation and load capacity of a 1.25 fine thread heim.
Heavy Industrial Fabrication: Any pivot point requiring a load rating over 70,000 lbs benefits from this spherical bearing.
Made in USA Quality
We take pride in offering a Made in USA chromoly heim joint. Domestic manufacturing ensures that the steel quality is verified and machining tolerances are precise. Cheap imports often suffer from inconsistent heat treatment. When you buy a 1-1/4-12 heim from East West Off Road, you are buying verified quality.
Maintenance for Long Life
To keep your 1.25 12 tpi heim operating smoothly:
Keep it Clean: Mud and grit act like sandpaper. Wash your joints after every ride.
