Franklin Electric offers a complete line of 6" up to 12" submersible motors, and special High Efficiency Systems for groundwater and other submerged pumping applications. For deeper wells and applications requiring higher flow ratings, Franklin's submersible motors 6" up to 12" are available from 4 through 400 kW.

The rewindable motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 8" diameter or larger water wells.
It is fitted with water lubricated radial and thrust bearings for maintenance-free operation. The motor is filled with a special FES93 fluid, providing frost protection down to -15 ºC storage temperature.
A special diaphragm ensures pressure compensation inside the motor. The Sandfighter® SiC seal system is standard. For applications in aggressive media, motors made of 316SS and 904L are available.

The rewindable submersible motors of Franklin Electric are available up to 12 inch and motor ratings up to 400 kW. The thrust load ranges up to 60 kN (=Kilo Newton) in the 10 and 12 inch version.
All motors have drinking water approvals.

The rewindable motors are equipped with best class winding wires that can be easily replaced.
Hydrodynamic liquid lubricated radial bearings secure a 100 % maintenance free operation.
The 8 inch motors have a NEMA double flange with Stainless-steel spline shaft, the 10 and 12 inch motors have a double flange with keyed shaft.
All motors have a pressure-equalizing diaphragm and a Stainless-steel shell.

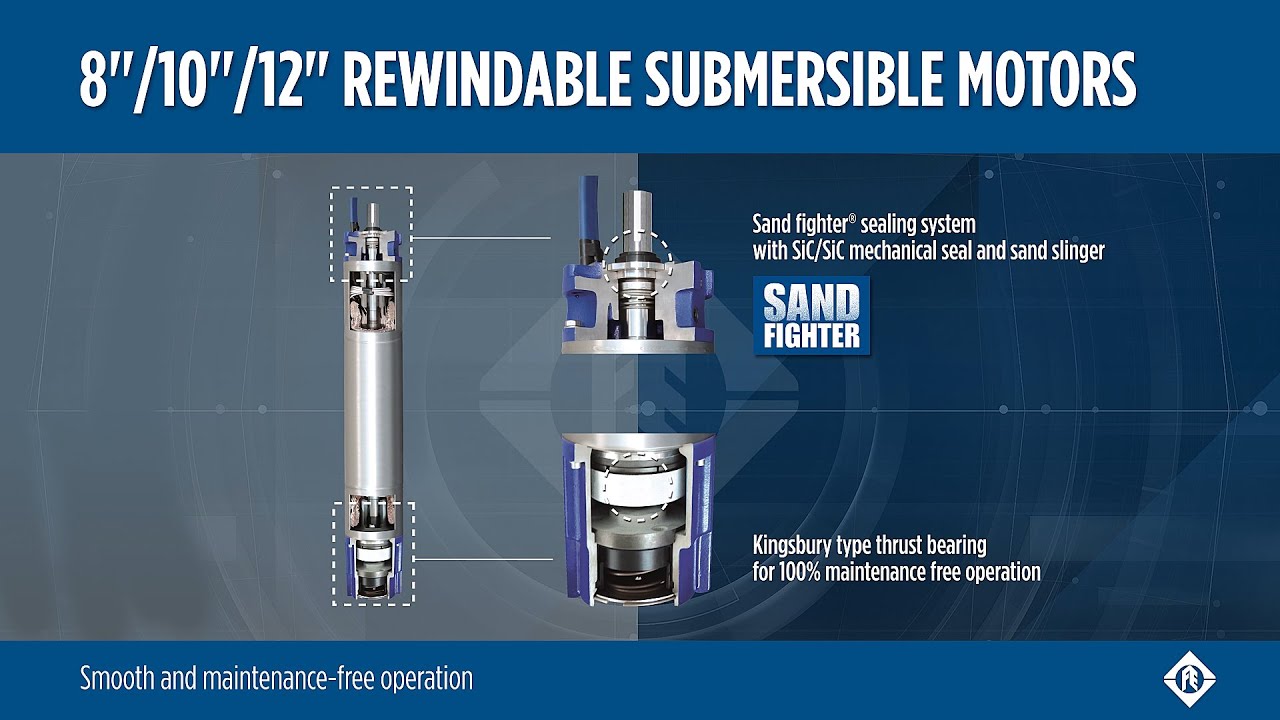

Franklin Electric's proven SandFighter® sealing system with SiC/SiC (sik-sik) mechanical seal and sand slinger enables smooth operation in applications with higher levels of sand.
The Kingsbury thrust bearing ensures 100% maintenance-free operation.

Optional motors are available in higher grade materials, in special voltages and with permanent magnet technology.
