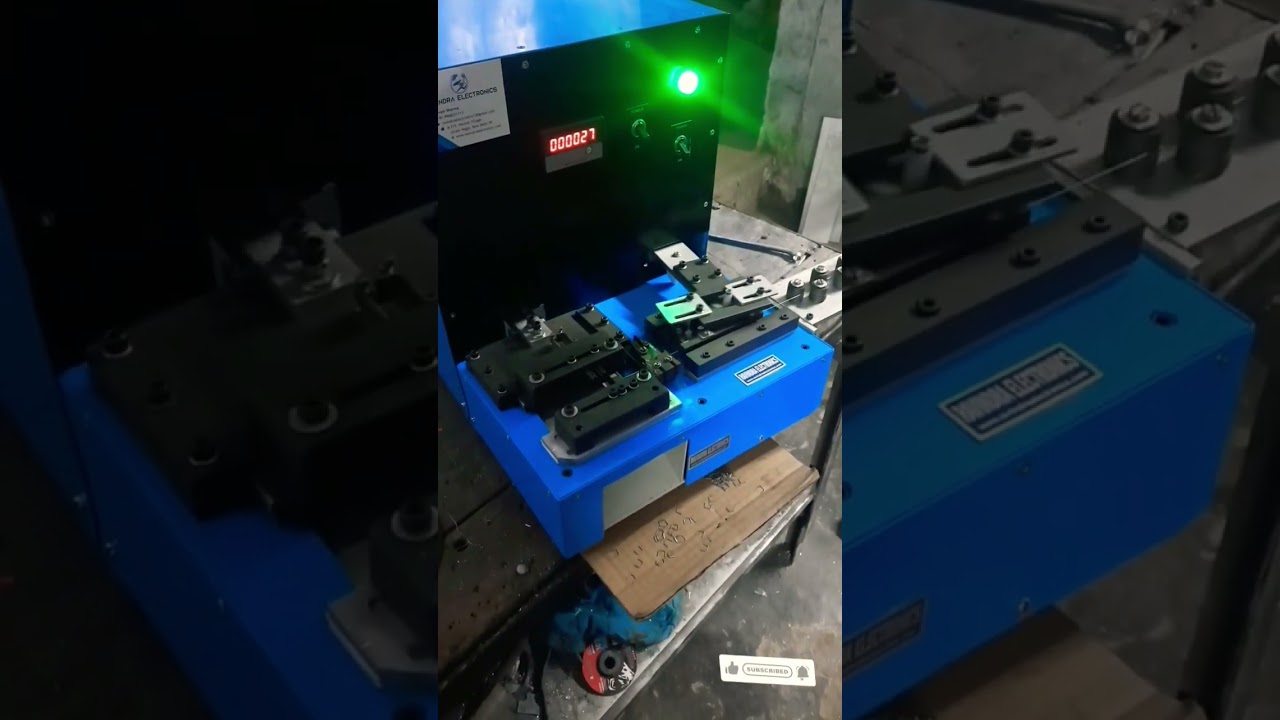

AUTOMATIC JUMPER-Link/WIRE FORMING MACHINE
This is an automatic jumper-link wire-forming machine capable of forming a right angle cut-and bend jumper-link and other wire forms with a pitch length size control spanning from 2mm to 40mm. (Other size range on request).
The bare tinned-copper -wireline is de-reeled from the spool using a special de-reeling device and then fed to the wire straightner.

Features
Power :100 watts , 220 AC
Drive :AC Induction/synchronous motor.
Weight:25 Kg.
Dimensions (L x W x H):(300 x 450 x 300) mm
Wire Size :Handles wires from 0.6 to 0.9mm Dia.
Pitch Size:Adjustable from 4mm to 25mm/wire size2-40 mm
Cut to bend length :4.5mm (others on request) for Jumper
Pitch tolerance :± 0.5 mm
Cut-to-bendnength tolerance(One lead Only) Production :± 0.5 mm
Rate :3,500 Jumpers/HrPro. (Or 5,000 Jumper/


RAVINDRA ELECTRONICS
CONTACT -9968221713
