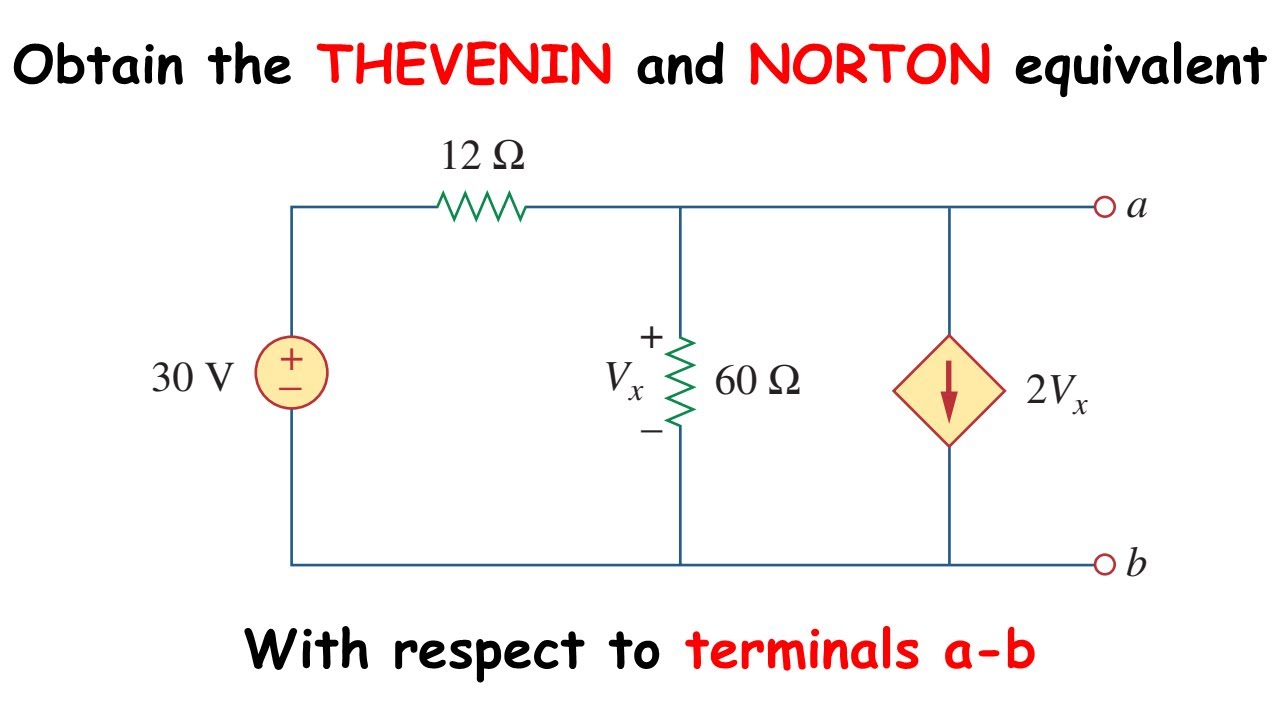

Problem 4.47 Obtain the Thevenin and Norton equivalent circuits of the circuit in Fig. 4.114 with respect to terminals a and b.

📘 THEVENIN and NORTON with DEPENDENT CURRENT SOURCE [Sadiku Problem 4.47] | Open-Circuit & Dummy Source Method

In this tutorial, we solve Problem 4.47 from Sadiku’s Fundamentals of Electric Circuits, where we are asked to find the Thevenin and Norton equivalent circuits of the network in Figure 4.114, across terminals a and b.

The circuit includes a dependent current source, so we apply a combination of techniques:
✔️ Open-circuit analysis to find the Thevenin voltage (Voc)
✔️ Short-circuit analysis to find the Norton current (Isc)
✔️ Dummy source method to determine the Thevenin resistance (Rth) when dependent sources are present

This video provides a step-by-step walkthrough with clear explanations, ideal for anyone learning how to handle controlled sources in Thevenin and Norton equivalent circuit problems.

🎯 Topics Covered:

Open-circuit voltage (Voc)

Short-circuit current (Isc)

Dummy source method for Rth with dependent sources

Norton equivalent from Thevenin form

📚 Based on Sadiku 6th Edition – Problem 4.47

📺 Perfect for electrical engineering students and exam prep!
