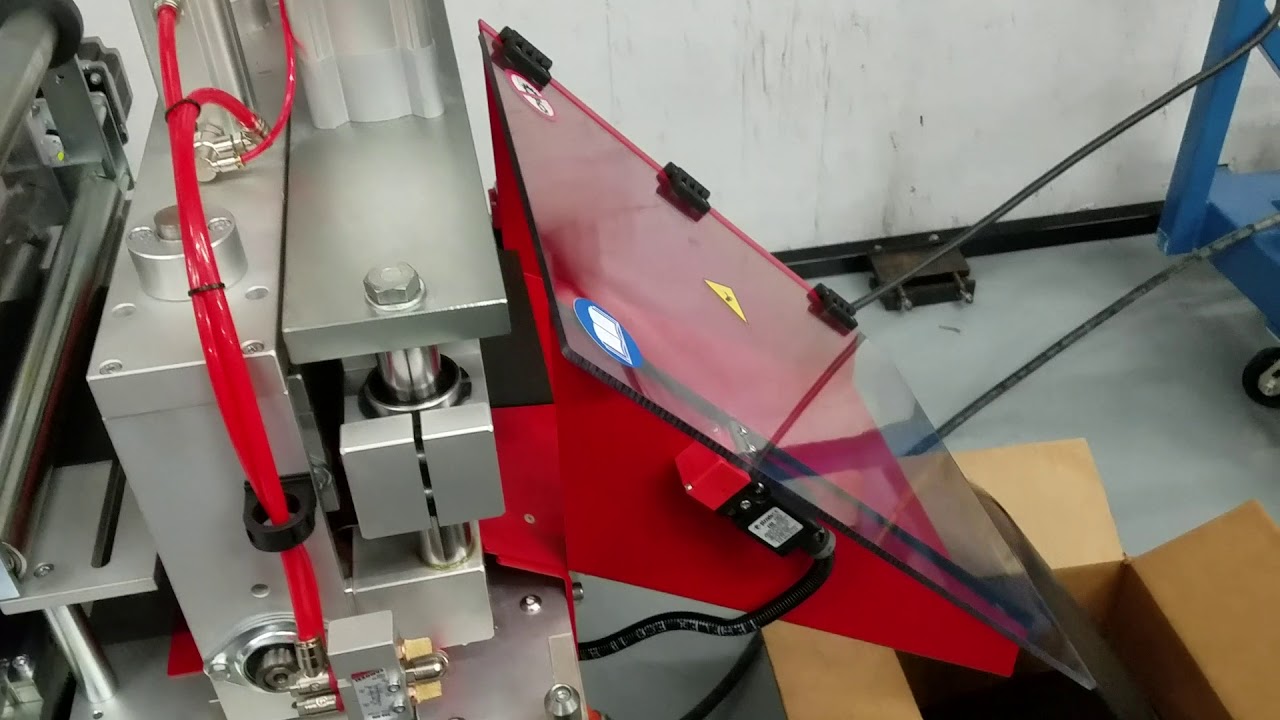

Скачать или смотреть GD X1 Rotary Slitting & Guillotine System-Foam Strip Gaskets

FOAM Strip Gasket Production: Due to the increasing demand for foam strip gasket production, Guidolin designed an economical, yet versatile solution combining their standard GDX-1 guillotine with a motorized longitudinal rotary slitting station. This concept allows converters the flexibility to convert foam strip gaskets on a single machine with the finished kiss-cut sheet cut to a pre-programmed length – eliminating the need for a secondary “fixed” rotary station or a secondary operation. In addition, for increased production throughput & material handling, the GD X-1 can be equipped with an automatic stacking system. At the exit of the guillotine, there is a stacking/unloading system with frame, trestle & mechanical protections. This unit is equipped with a motorized linear guide and pneumatic pliers to grip the beginning of the sheet as it exits the guillotine. Synchronized movement of this system with the material transport & discharge of the total cut sheet. After the specified amounts of sheets are cut, the machine stops & the operator will open the protection guard to collect the stack.

The machine comes standard with a useful working width of 300mm, 600mm or 800mm and can sheet materials up to 15mm in thickness with processing speeds up to 500mm per second. The transport conveyor system is equipped with two anti-adherent silicone rollers and is controlled by a servo step motor coupled with an incremental encoder for precise positioning tolerances (+/- 0.1mm). The new automatic guillotine cutting machine comes standard with a 4” Color TFT Touchscreen for the complete control of the machine and all its optional systems.
