PRODUCT DESCRIPTION

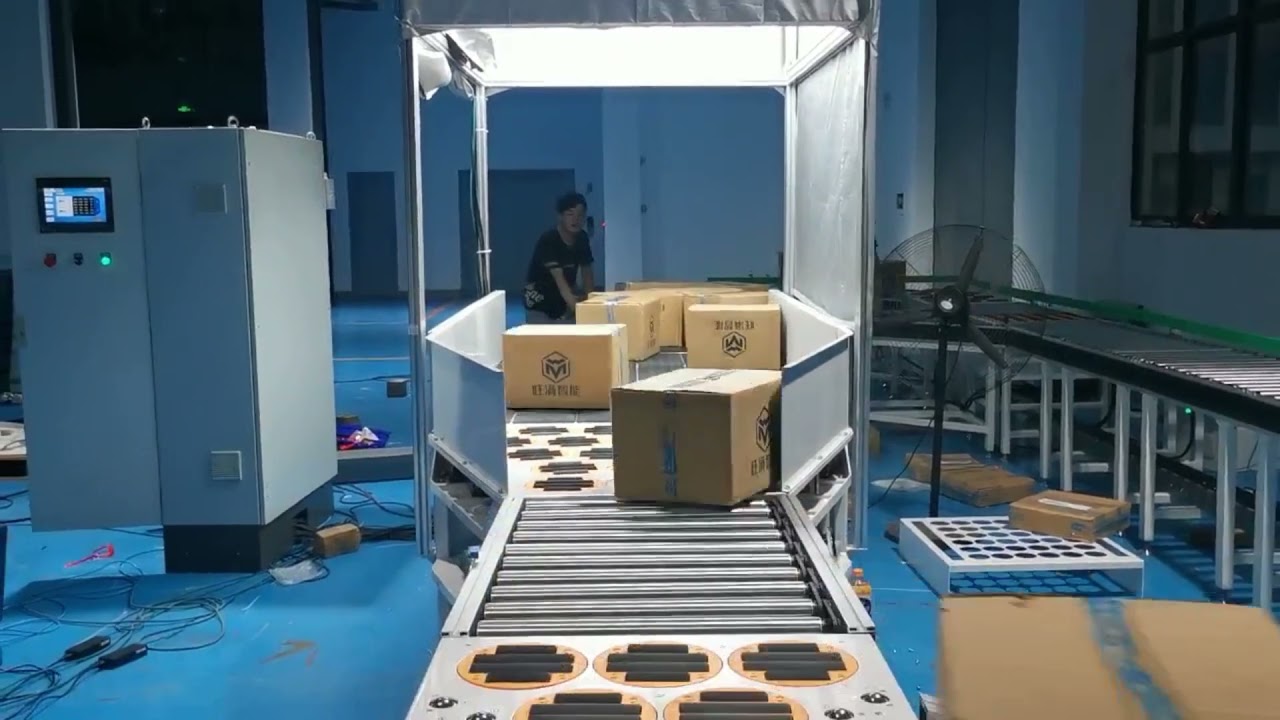

Singulation Conveyor System is mainly composed of Divergence Model, Separation Model, Vision System Model, Electrical Control Model and Centered Section. It can be designed at the front of various automated sorting solutions. The main function is to auto-separate, auto-space and auto-queue up the mixed packages before entering the sorting lines, so that the messy packages become single rows according to the specified spacing. The "formation" passes in an orderly manner and enters DWS or automated sorting equipment one by one, which greatly improves the success rate and accuracy of parcel sorting.

PRODUCT SPECIFICATIONS
Working Mode: Separation Mode or Pipeline Mode
Capacity: 5000PPH(400mm parcels)
Package Weight: Min 0.2kg~Max 35kgs
Package Dimensions: 150*150*15mm~1000*1000*600mm
Package Shape: Non-Rolling” Packages
Speed of Divergence Module: 0.8m/s~1.2m/s
Speed of Separation Modules: 1.2m/s~2m/s
Separation Success Rate: ≥99%
Working Temperature: -10~50 °C
Working Humidity : 20%~90% RH(Non-Condensing)

APPLICATION
Not limited by the degree of clutter and density
Adapt to diffuse reflection packages with surface reflectance bigger than 10%
