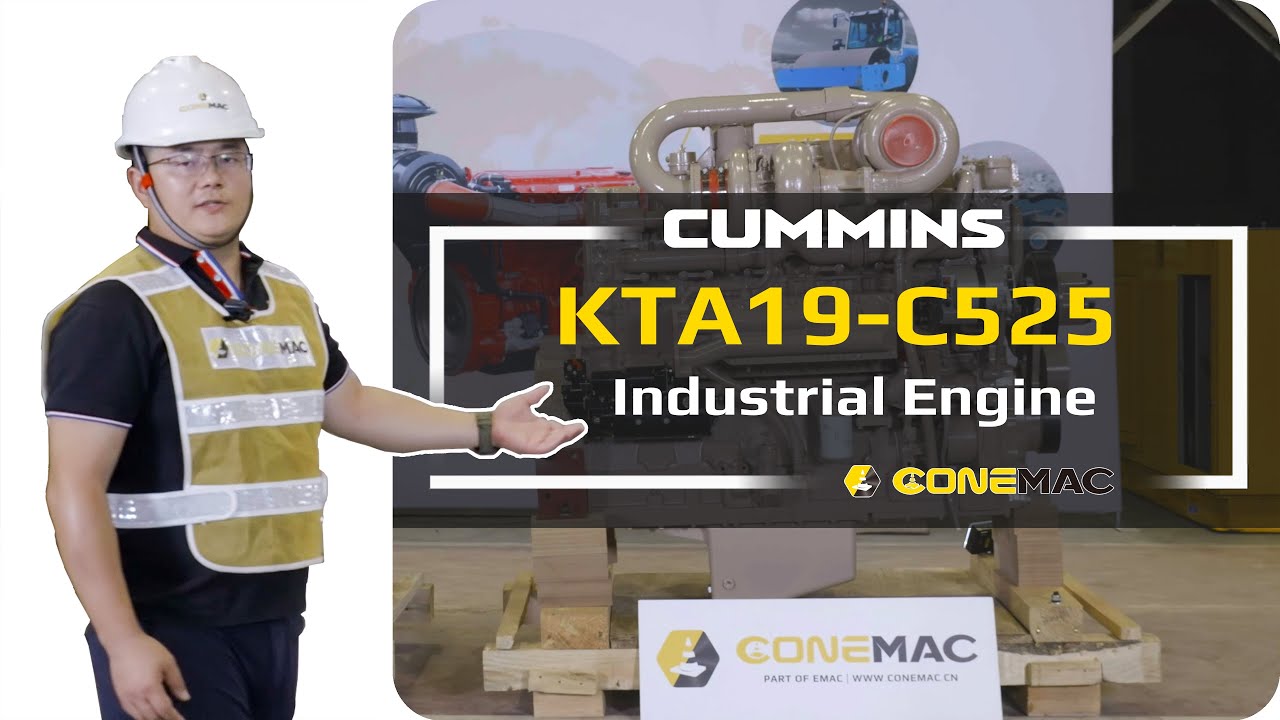

Скачать или смотреть Chongqing Cummins KTA19-C525 Project Industrial Engine Introduction 2024 [Specifications and Scopes]

This video is a detailed introduction of Chongqing Cummins KTA19-C525 industrial engine, which is very popular engine model for mining equipment, from Komatsu to Belaz, from Volvo to Hitachi, from minning dump truck to excavator, Cummins KTA19-C525 installed in lots of differnet equipment and almost show up at all mining field in all countries. This video including the breif introduction of Chongqing Cummins engine factory, and detailed introduction of For more information about Chongqing Cummins KTA19-C525 industrial engine.For more information about Cummins KTA19-C525 industrial engine, you are welcome to visit https://ccec-engine.com/ktta19-c525-indust...

There are 8 key moments in this video:
0:00 Video Preview
0:41 CCEC-ChongQing Cummins Company Introduction
1:30 CCEC Cummins KTTA19-C525 industrial engine Specifications
2:46 CCEC KTTA19-C525 industrial engine Standard Scopes
3:39 CCEC KTTA19-C525 industrial engine Optional Items
5:14 ConeMac Introduction
7:02 Ending

CCEC KTA19-C525(2100 RPM) Industrial Engine is 6-cylinder inline, 18.9 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke.
KTA19-C525 Industrial Engine equipped with PT Fuel System, comes with Dual-stage Turbocharged-Intercooler. The maximum power of the CCEC KTA19-C525 industrial engine is 700 HP (522 kW) at 2100 RPM, and the maximum torque of the engine at 1300 RPM in this mode is 2731 N.m(2014 lb.ft). The Prime power of the CCEC KTA19-C680 industrial engine is 554 HP (413 kW) at 1800 RPM, and the maximum torque of the engine at 1300 RPM in this mode is 2319 N.m(1710 lb.ft).As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

For more information about ConeMac and products , you are welcome to visit ConeMac homepage: www.conemac.cn

Advantages of CCEC KTA19-C525 Industrial Engine
1、Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.
2、Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.
3、Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
4、The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.
5、The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.
6、By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.
