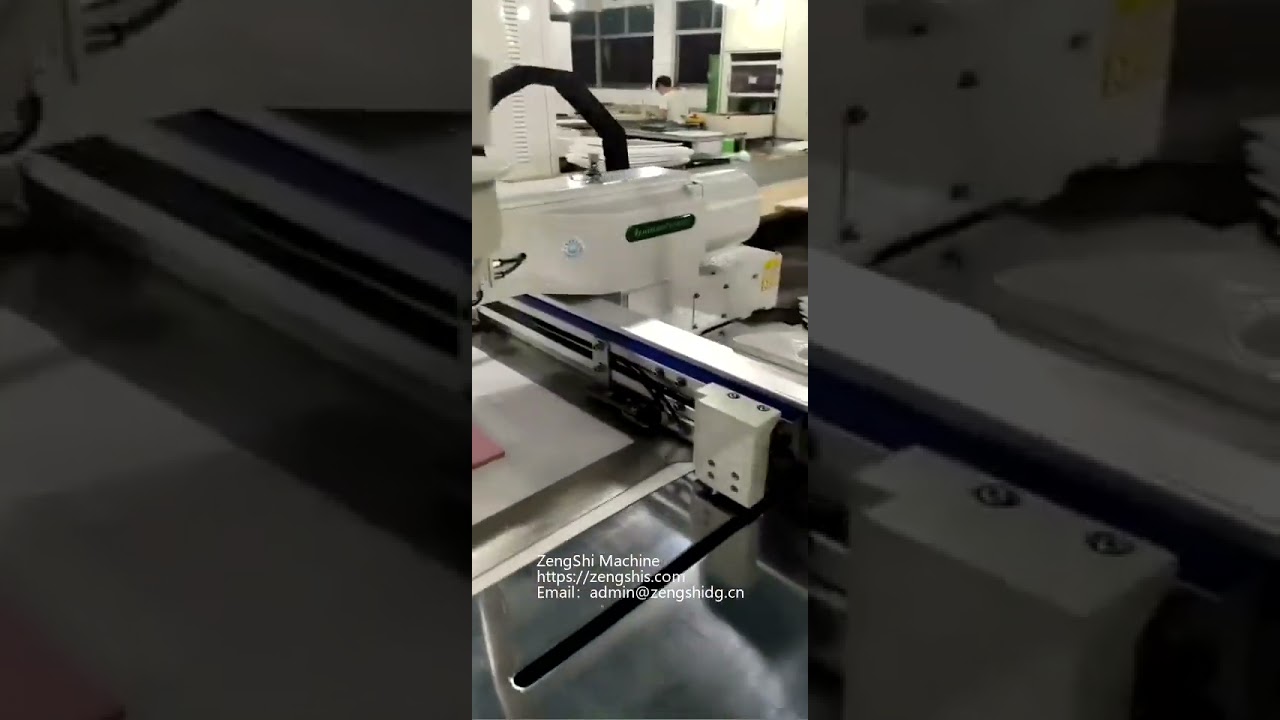

Computer Pattern Sewing Machine : For leather
Functional features:
1, decorative line pattern can be easily input through the touch screen.
2. According to the needs of the style, the sewing style can be changed at will, such as two sides or four sides of the sewing, and the rear diagonal stitch with X shape, etc. Can be set to straight line, zigzag stitch or custom pattern stitch; And optionally select the starting point and the number of connecting stitches.

3. The operator only needs to put the sewing material in place, and the sewing and receiving working machinery can be completed automatically. A person can operate up to 3 machines, which greatly improves the output.

Performance index:

Sewing scope Knitting scope 300*200mm
Sewing speed is Max speed 2500rmp
Speed setting speed scope 200-2000rmp; 10-stage setting
Stitch Length Stitch gap 0.1-12.7mm (minimum resolution 0.1mm)
Max stitch 8000 stitches/pattern
Internal memory of Pattern store
Expand and shrink function Scale X axis, Y axis 10-200% (minimum set value 0.1%)
Use the Shuttle bed (2x) to Spin the shuttle
Use machine needle DP*17 18#23#
Press foot Pneumatic. Press foot pneumatic
Direct drive servo motor Main motor
Feeding mode press foot automatic feeding and receiving function
Outline dimensions 1200*1060*1170mm
The Weight is 176KG
