Скачать или смотреть How to assemble Your Saga XY trimmer/cutter?

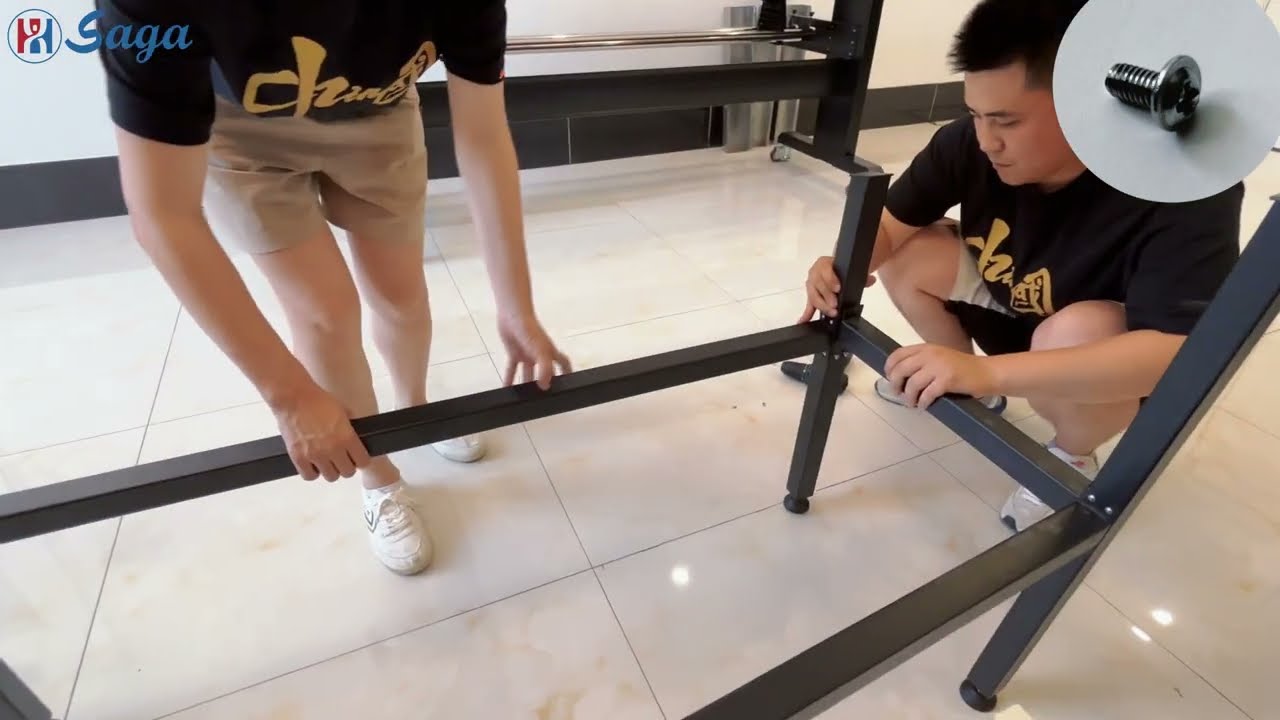

1: Saga XY trimmer/cutter installation
2: Saga XY cutter tray installation
3: Note: The height of the foot pads can be adjusted according to your own needs
4: Note: pay attention to the direction of the bracket
5: Note: no need to tighten screws at the very beginning, tighten them after they are fixed together.
6: Note: pay attention to the direction of the bracket
7: Repeat the previous operation
8: Note: the installation direction is the same
9: high
10: low
11: The tray is installed complete
12: Install the foot pads
13: Installation complete
14: Note: leave some space here
15: Note: installation direction
16: long
17: Short
18: Pay attention to the installation direction of the beam
19: Align the holes for installation
20: Note: Installation direction
21: Lift the machine to the bracket, align the holes with the bracket
22: After the machine is fixed, tighten it all around
23: Installation complete


Saga has more than 13 years of experience in developing, manufacturing vinyl cutters and digital finishing products.
If you like to know more about Saga products, we can provide you a complete catalog.
Or if you are interested to know more about any specific items, we'd like to offer you information, including technical specifications, videos, pictures etc.

You can also contact me by
https://www.sagacnc.com/
Email: [email protected];
Mobile/WeChat/WhatsApp: +86 15105514851
