#ProbeTips! Basics of Electrical Schematics Reading | Overload Simulation Trip of Non-Essential Loads
#ProbeTips! How to Read and Interpret Basic Electrical Drawings
#PRObing Right into the Problem! #TraveLem #ElectricalEducationalLibrary

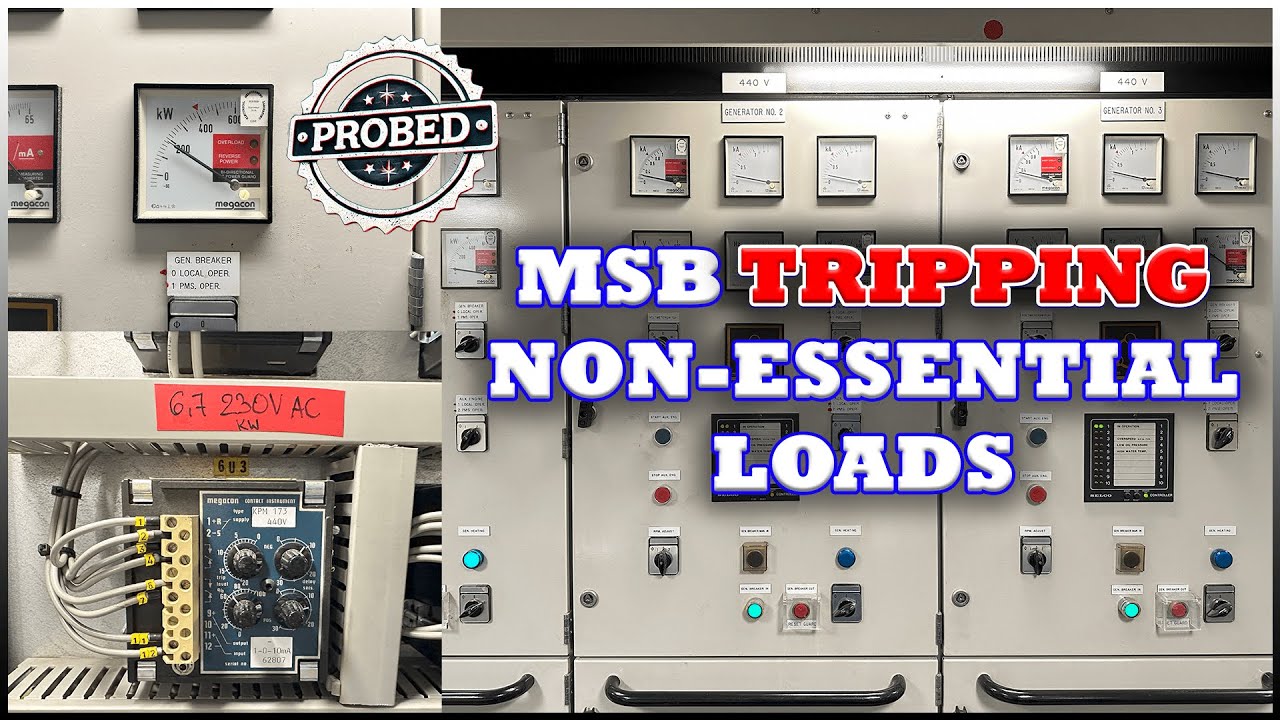

Ever wondered how to read complex electrical schematics and understand each component's role in Main Switchboard (MSB) operations? In this special 100th video, we’re breaking down an overload simulation trip of non-essential loads and interpreting the MSB schematic for you. I’ll take you through each step—from pinpointing relays like 4K16, 4K17, 4K18, and 4K19 to simulating a real overload event on the KPM 173 device. Whether you’re an aspiring ETO or a seasoned electrical tech, this video is packed with insights. Let’s keep probing and learning together! ⚡

⏱️⏱️Timestamps:⏱️⏱️
00:00 Insights into the Probe
00:40 Electrical Schematics Tutorial 101
01:59 Page No. and Current Path
02:40 Locating the Electro Devices
05:28 Understanding Schematics Simulation
07:35 Tracing a Circuit Step-By-Step
15:18 Overload Simulation Test with KPM 173
18:26 Conclusion

#SchematicsForBeginners #OverloadRelay #ReadingSchematics
