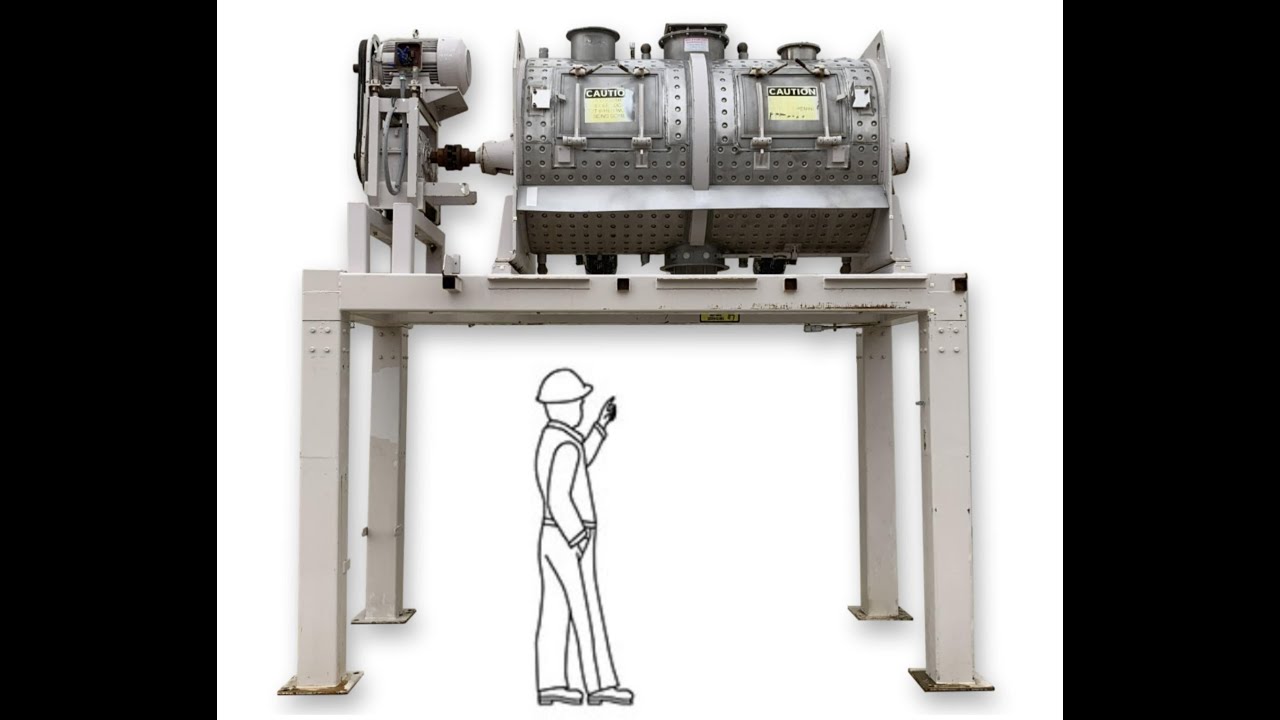

Скачать или смотреть Used 30HP Stainless Steel Horizontal Jacketed Plow Mixer - 45 CU/FT

304 stainless steel material contact surfaces
Mixing chamber is Ø43" X 78"L
Stainless steel dimple-plated jacketing with 1 1/2"NPT connections
Choppers: 5HP, 2,695RPM, stainless steel blades, quantity of three
Vent ports: 2"Ø sanitary flange
Charging ports: 14"Ø flanged (center), 10" flange, 8"Ø flange
Discharge port: 14"Ø flange with manual 8" X 10" flush-mount dump valve, 88" from base
Elevated on a structural steel, square tubing support stand (87" tall, bolted)
30HP V-belt and gear reduction drive, flex-coupled
Power Supply: 240/480V, 60Hz, 3ph for each mixer drive and chopper drives
Overall dimensions: 145" L x 77" D x 144" H.
Weight = 6,690 LBS
Website: https://www.jmindustrial.com/product/...
Item #19518
