Specification _ 부품 상세표

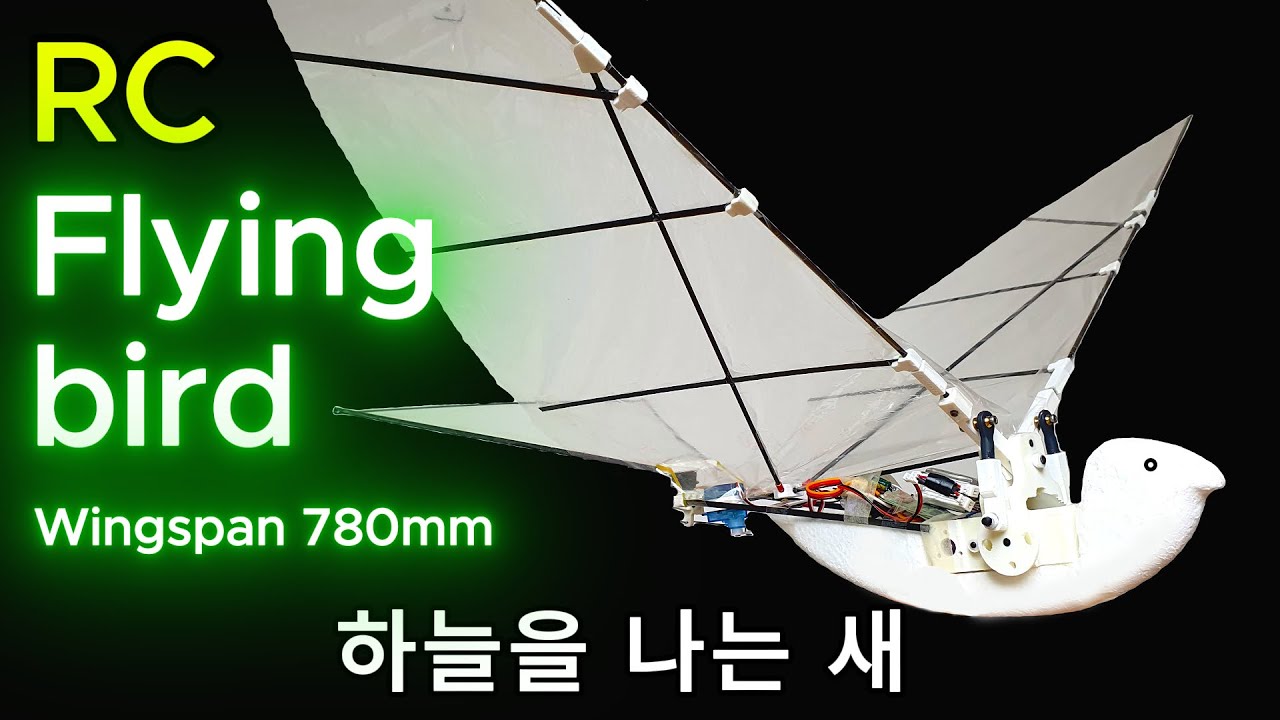

Wingspan : 780mm (Length : 440mm)
Weight : 75.1g
Battery (3Cell 150mah) : 15.5g
Flying weight : 90.6 (Including 3Cell 150mah Li-Po battery, Flying time : around 3minutes)
Transmitter (FLYSKY, FS-i6) : 1pcs
Mini 4ch Receiver (FLYSKY, FS2A) : 1pcs
Mini Brushless Motor (1503-2750kv, Shaft ∅2.0mm, 8.6g) : 1pcs
ESC (Electric Speed Controller) : 12A OPTO Brushless ESC Lightweight : 1pcs
DC Step Down Power Module_DC 4.2~10V To 3.3V, 800mA : 1pcs
Servo : 1.7g Micro digital servo : 1pcs
Servo : 3.7g Micro digital servo : 1pcs
Plastic Gear (0.4Module, 36102B : 36Teeth & 10Teeth, Hole Ø2.08) : 2pcs
Plastic Gear (0.4Module, 562A : 56Teeth, Hole Ø1.92) : 1pcs
Plastic Gear (0.4Module, 803A : 80Teeth, Hole Ø3.0) : 1pcs
Stroke : 19mm
Gear reduction ratio = 44.8:1 ((56T / 10T) x (80T/10T))
Maximum wing flapping speed under no-load conditions (무부하 상태에서의 최대 날개짓 속도) :
= (2,750kv x 7.4v) / 60sec / 44.8 = 7.6 times / sec (Based on 2 cell battery : 2셀 배터리 기준)
= (2,750kv x11.1v) / 60sec / 44.8 =11.4 times / sec (Based on 3 cell battery : 3셀 배터리 기준)
Battery : 3Cell 150mah Li-Po (1Cell 150mah Li-Po x 3pcs, 15.5g) : 1pcs
or 3Cell 180mah Li-Po (1Cell 180mah Li-Po x 3pcs, 17.1g) : 1pcs
Ball joint Single Cup (M2.5) : 2pcs
Screw : M1.7 X 6mm : 5pcs (2pcs + 3pcs)
Grub Bolt (mood bolt : 무드 볼트, M3 x 5mm) : 4pcs
Carbon rod : ∅2.0mm x 32mm : 1pcs (Gear box)
∅3.0mm x 44mm : 1pcs (Gear box)
∅3.0mm x 15mm : 2pcs (Gear box)
∅3.0mm x 26mm : 1pcs (Gear box)
∅3.0mm x 20mm : 2pcs (Wing)
∅3.0mm x 15mm : 1pcs (Tail)
Carbon Pipe : ∅2.0mm x ∅1.0mm x 180mm – 2pcs (Wing)
∅2.0mm x ∅1.0mm x 180mm – 1pcs (Body)
∅2.0mm x ∅1.0mm x 250mm – 2pcs (Wing)
Carbon fiber sheet : 0.5t x 3.0mm x 130mm – 2pcs (Body)
0.5t x 3.0mm x 150mm – 2pcs (Wing)
0.5t x 3.0mm x 160mm – 2pcs (Wing)
0.5t x 3.0mm x 170mm – 2pcs (Wing)
0.5t x 3.0mm x 180mm – 2pcs (Wing)
0.5t x 3.0mm x 230mm – 2pcs (Tail)
0.5t x 3.0mm x 270mm – 1pcs (Tail)
Shrink tube (수축튜브) : ∅2.5mm x 10mm – 2pcs (Wing)
∅3.0mm x 10mm – 2pcs (Wing)
Thin transparent vinyl (얇은 투명 비닐) : 800mm x 200mm – 1pcs (Wing)
200mm x 170mm – 1pcs (Tail)
Styrofoam : 100mm x 200mm x 30t – 1pcs (Body)
Steel wire : ∅2.0mm x 12mm : 1pcs (Motor shaft : 모터 축)
∅0.8mm x 60mm – 1pcs (Tail Servo : Elevator)
Stopper_3.3mm Hole (3D file name) : 7pcs
Stopper_1.5mm Hole (3D file name) : 2pcs
Transmitter : FLYSKY Transmitter FS-i6
https://www.aliexpress.com
Receiver : FLYSKY FS2A 4CH AFHDS 2A Mini Receiver
https://www.aliexpress.com
Motor : 1503-2750kv_Mini Brushless Motor for 2S~3S (Shaft dia 2.0mm, 12g)
https://www.aliexpress.com
ESC (Electric Speed Controller) : 12A OPTO Brushless ESC Lightweight
https://www.aliexpress.com
DC Step Down Power Module_DC 4.2~10V To 3.3V, 800mA
https://www.aliexpress.com
Servo : 1.7g Micro digital servo
https://www.aliexpress.com
Servo : 3.7g Micro servo
https://www.aliexpress.com
Plastic Gear (0.4Module, 36102B : 36Teeth & 10Teeth, Hole Ø2.08) : 2pcs
https://www.aliexpress.com
Plastic Gear (0.4Module, 562A : 56Teeth, Hole Ø1.92) : 1pcs
https://www.aliexpress.com
Plastic Gear (0.4Module, 803A : 80Teeth, Hole Ø3.0) : 1pcs
https://www.aliexpress.com
Battery : 1Cell 150mah Li-Po
https://www.aliexpress.com
Ball joint Single Cup ball joint (M2, M2.5, M3)
https://www.aliexpress.com
Carbon fiber sheet : 0.5t x 3.0mm ~ 1.0t x 6.0mm
https://www.aliexpress.com
Carbon rod : ∅0.8 ~ ∅11mm
https://www.aliexpress.com
Carbon pipe (Tube) : ∅2.0 x ∅1.0mm x 500mm
https://www.aliexpress.com
Small Mini Bolt set (미세 볼트 셋트) : M1.2~3.0
https://www.aliexpress.com
Grub Bolt Set (mood bolt : 무드 볼트) : M2~M8
https://www.aliexpress.com
How to download the above video reference material.
(Web hard _ Please refer as follows) _ 아래 참조
(아래의 URL 로 들어오신후, 해당 폴더를 찾으시면 관련 파일들의 다운로드가 가능합니다.)
URL : http://www.ssamlee.synology.me:5000
Username (계정 아이디) : visitor
Password (비번) : Guest123
You can find folder name as belows,
File Station
homes
visitor (You can find each folder name and enter it. _ 각각의 폴더명을 찾아서 들어오세요.)
