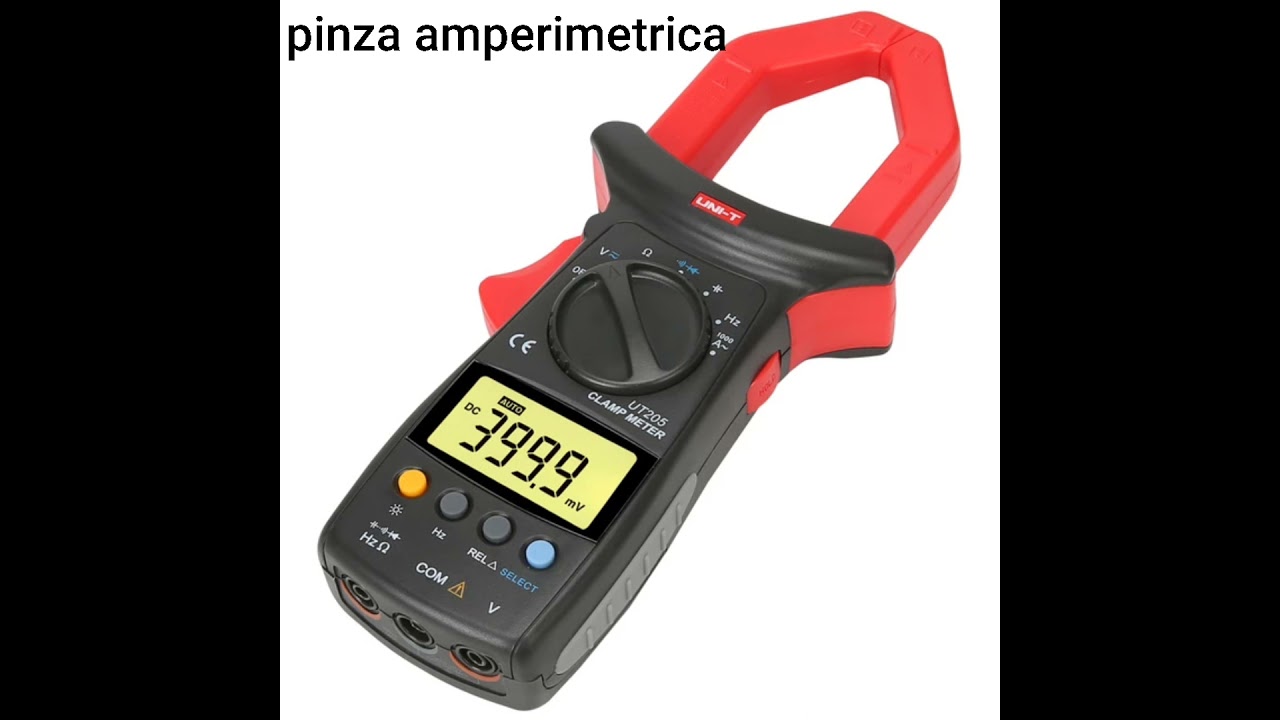

UNI-T UT205 Pinza amperimetrica
Volts DC: 400mV - 600V. Volts AC: 4V - 600V. Corriente AC: 400A - 1000A  Resistencia: 400Ω - 40MΩ
Frecuencia 10Hz - 10MHz, Capacitancia: 4nF - 200uF, Autorango, Medidor de diodos, Modo relativo,
Indicador de bateria baja, Sleep mode, Maximo display 3999, Impedancia de entrada CC: 10MΩ.
data Hold, continuidad con Buzzer, Backlight, Retencion de datos, Max tamaño mandibula 40mm. .





Basic FunctionsRangeBest AccuracyDC Voltage400mV/4V/40V/400V/600V(0.8%+1)AC Voltage4V/40V/400V/600V(1.2%+5)AC Current400A/1000A(2%+5)Resistance400W/4kW/40kW/400kW/4MW/40MW(1%+2)Capacitance4nF/40nF/400nF/4mF/40mF/200mF(3%+5)Frequency10Hz ~ 10MHz(0.1%+3)Duty Cycle0.1% - 99.9%Special FunctionsAuto RangingDiodeContinuity BuzzerRelative Mode Data Hold Display Backlight Full Icon Display Sleep Mode Max. Jaw Size40mm Low Battery Display Input Impedance for DC Voltage MeasurementAround 10MWMax. Display3999Jaw Opening Light

GENERAL CHARACTERISTICS
Power9V Battery (6F22), 3V Battery (AAAx2)LCD Size52 x 27mmProduct ColourBody-Grey, Jaw-RedProduct Net Weight540g (excluding tool box)Product Size260 x 90 x 45mmStandard AccessoriesTest Lead, English Manual, Batteries, Tool BoxOptional Accessories*Clip-On Test Lead Light(UT-TL), Built-In Test Lead Light(UT-L1), Built-In Test Lead Light Plus(UT-L2), Carrying BagStandard PackingGift BoxStandard Quantity Per Carton20 pcsStandard Carton Measurement591 x 370 x 474mm (0.104 CBM Per Standard Carton)Standard Carton Gross Weight27.5kg
