8) SETTING

RD Adjustment
1. Turn on the drivetrain
2. Shift the RD to the center (6th) cog
3. Shift the chain to the small chainring
4. Enter SET mode by pushing and holding the SET button for around 3 seconds. Both LEDs will blink green
5. Press rear shifter button to enter the RD adjustment mode
6. Using the rear shifter, the RD will operate in micro-steps
7. Set RD zero position by aligning RD upper jockey pulleys with center cog

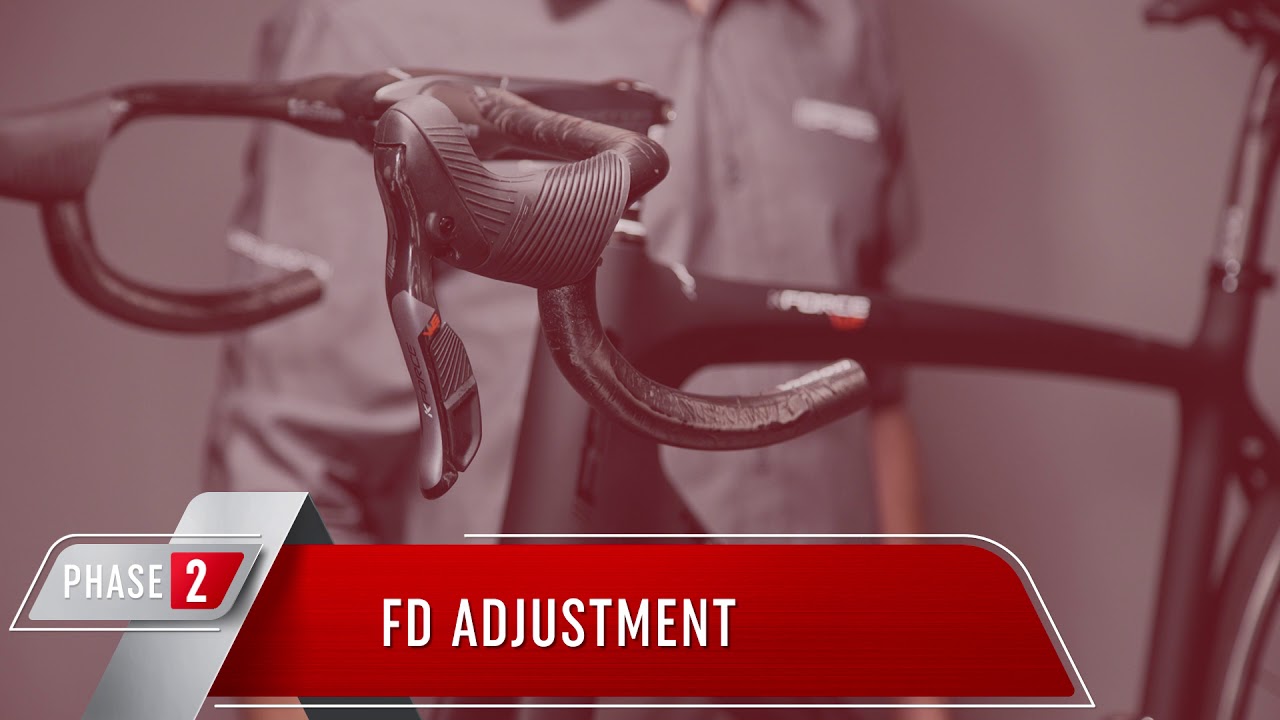

FD Adjustment
1. Press front shifter button to enter the FD adjustment mode
2. Using the rear shifter, operate in micro-steps to adjust the FD cage plate position
3. Ensure approximately 1mm (not more) of clearance between the inner derailleur cage plate and the chain
4. While pedaling, use front shifter to move FD to the big chainring
5. Using the rear shifter, operate in micro-steps to adjust the FD cage plate position
6. Ensure approximately 1mm (not more) of clearance between the inner outer derailleur cage plate and the chain
7. Push and hold the SET button for around 3 seconds. The green light will stop blinking and the front derailleur zero position will be saved.
