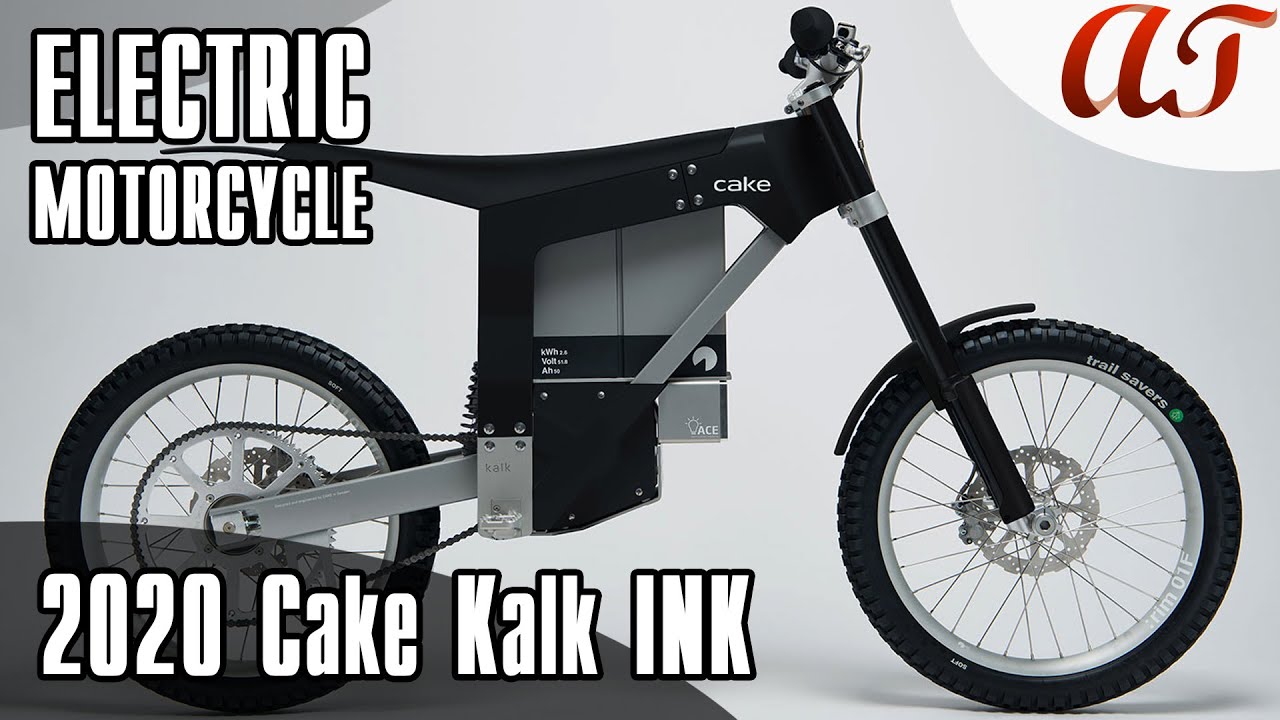

The Kalk INK is based on the same technology as the Kalk OR. Same powerful drivetrain with slightly heavier and stable wheels and a simplified and yet sturdier suspension. It's all about a fast, hassle free and thrilling backcountry exploration, without polluting or disturbing.

Worldwide deliveries start from June 1st, 2020 onwards.

WEIGHT
Dry 55kg/121lbs + battery 17kg/37lbs

SPEED & RANGE
Top speed: +80km/h / +50mph
Range: Trail/Enduro: up to 3 hours
The actual range depends on a number of different aspects, e.g. riding style, rider weight, weather conditions, temperature, road surface and tire pressure.

DRIVETRAIN
11kW motor
42 Nm peak torque on shaft / 280Nm on wheel @ 3000 rpm
Front sprocket: 12 teeth with infused rubber for minimal noise
Rear sprocket: 80 teeth
Chain: size 420 O-ring

BATTERY
18650 lithium cells
51.8 Volt
50 Ah
2.6 kWh
Easy Removable Battery

DASHBOARD & CONTROLLER
Configured for 3 riding modes:
Explore: The ultimate mode during exploration. Limited speed to 45 km/h and 3-4h+ battery range
Excite: Enduro or active trail riding. 1-2 h riding time
Excel: Track and race mode, maximal torque and speed, riding time up to 1h
3 brake settings; freewheel, 2-stroke & 4-stroke.

CHARGING
0-80% takes 1,5 h to charge in a standard outlet
0-100% takes 2,5 h to charge in a standard outlet

FRAME
6061 aluminium, extruded, forged and CNC jointed and welded
Bodywork in black PC/ABS
Swing arm 6061 aluminium extruded tube profile

FRONT SUSPENSION
Upside down MX spring forks
Travel 200 mm

REAR SUSPENSION
Travel 205 mm
Direct mounted shock for simplicity and robustness

DIMENSIONS
Head angle/Fork angle: 65 degrees
Wheel base: 1 310 mm
Seat height: 910 mm (unloaded)
Ground Clearance: 300 mm

Trail and offset
87,4 mm of trail
22 mm offset in triple clamps
36 mm offset in forks

Wheel and tires
Aluminium 7075 hubs
19x1.85” custom designed aluminium motorcycle rims
19” off-road tires

Brakes
Motorcycle standard, four pistons calipers, alloy levers and 220 mm/3.2 mm stainless steel rotors

Cockpit
Aerospace grade 7050 aluminum handlebar, 800 mm wide, 20 mm rise, 31.8 mm

Stem
Aerospace grade 7075 aluminum stem with integrated dashboard

Headset
SKF bearings

Fenders
All fenders and side plates are made of black PC/ABS

*Note that all details are subject to changes
