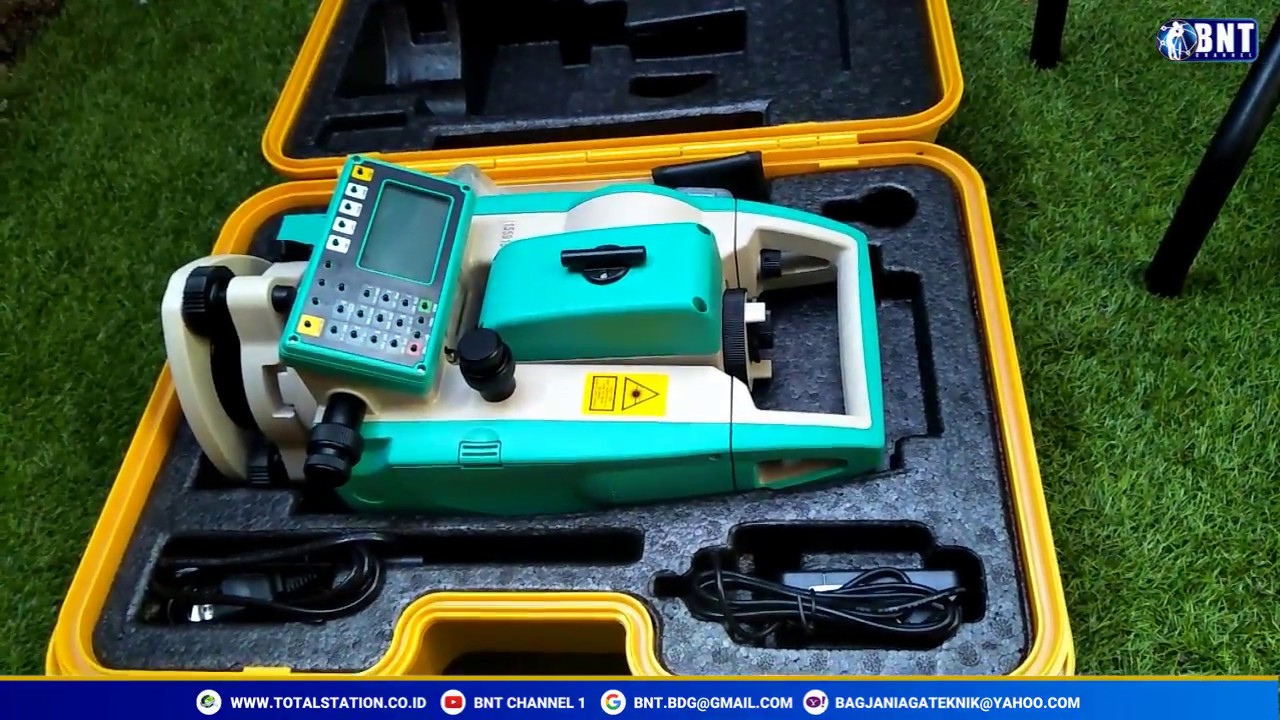

Скачать или смотреть [UNBOXING] Total Station Ruide R2 Series | BNT

Specification Total Station Ruide R2 :

Telescope
Length : 154mm
Objective Lens Diameter : Telescope 45mm
Magnification : 30x
Image : Erect
Resolving Power : 3″
Mini. Focus : 1.0m

Distance Measurements
Single Prism : 5000m
Non Prism : 400m
Accuracy – Prism : (2mm+2ppm x D)m.s.e
– Non Prism : (3mm+2ppm x D)m.s.e
Meteorologic Correction : ATMOSense ( Auto )
Prism Constant : Manual Input

Angle Measurement
Method : Absolute Encoding
Detecting System : H:2 Sides
Min. Reading : 1″/5″
Accuracy : 2″
Diameter of Circle : 79mm

Display
Display Unit : Graphic LCD 160×90 dots with White Backlight
No. of Unit : 2 Sides
Keyboard : Alhanumeric Keys

Level Sensitivity
Plae Level : 30″/2mm
Circular Level : 8’/2mm

Optical Plummet ( Optional – Internal Laser Plummet )
Image : Erect
Magnification : 30x
Focusing Range : 0.3m
Field of View : 5

Data Storage & Inerface
Internal Memory : 10,000 pts or 20,000 coord. ( Fixed/SD/USB )

General
Guide Light : No
Weight : 5.4kg
Dimension : 340mm(H) X 160mm(L) X 150mm(W)
Battery Type : Rechargeable Li-on Battery, 7.4V, 3000mAh
Water & dust proof : IP66
Working Time : 16h
