ABOUT VGC TEXTURED SOLAR PANEL GLASS

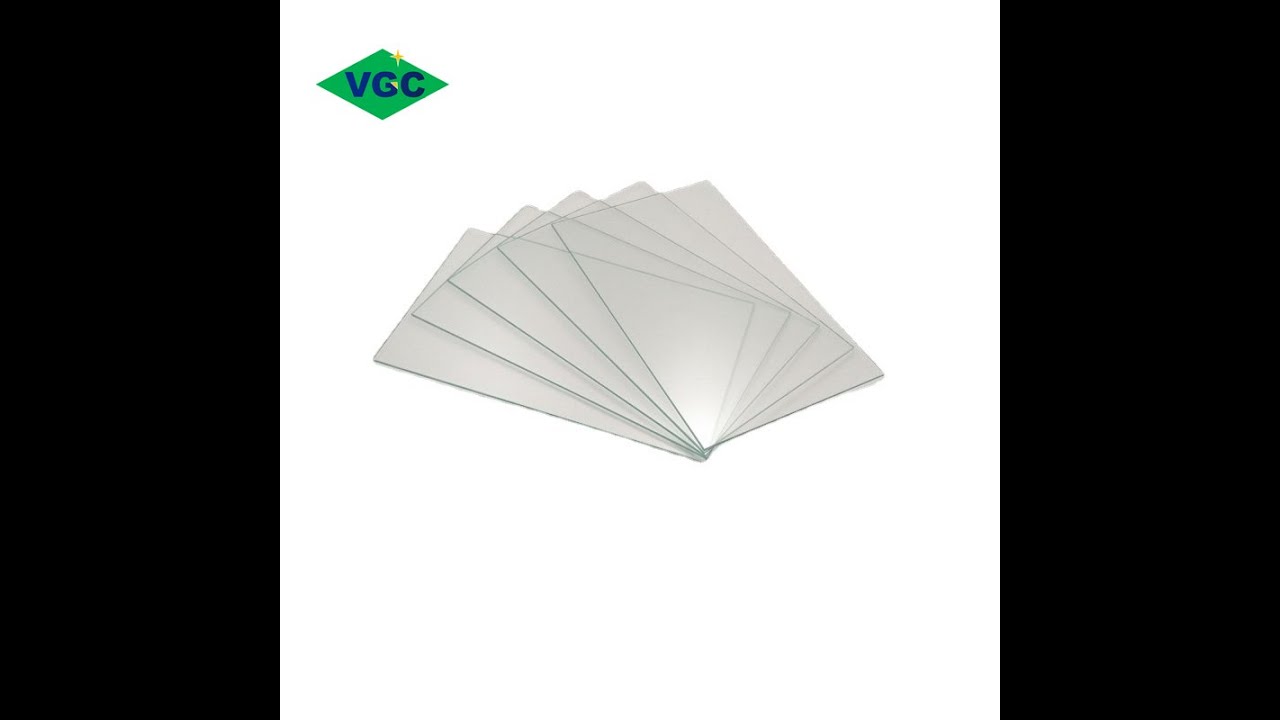

VGC 1MM 1.6MM, 2.5MM 3.2MM 4MM TEMPERED SOLAR PANEL COVER GLASS is mainly made of Clear Float Glass, LOW IRON clear glass,Low-Iron Pattern Glass.
CLEAR FLOAT GLASS is the substrate of solar back glass, it is further processed (edge grinding, hole drilling and tempering) . Compared with conventional back sheet (TPT), back glass has an excellent durability performance. By using advanced equipment, we can provide back glass with highest process precision and big capacity.
LOW IRON FLOAT GLASS is an ultra-transparent subway glass with a light transmittance of over 91%. It has crystal clear and elegant characteristics. It is called the"crystal prince"of the glass family. The ultra-white glass has good machine ability and superiority. Physical, mechanical and optical properties.
Maximum wide: 3660mm/ Thickness: 2.0-19.0mm
LOW IRON PATTERN GLASS is formed with a diamond pattern on one face and a smooth pattern on another, and then is further treated by tempering process. It is mainly used for the cover of photovoitaic modules or flat solar water collectors and also used as greenhouse Glass.
Solar low iron pattern glass has its unique recipe and special pattern, which ensures highest solar transmission by greatly reducing light reflection and absorbtion, and therefore increases photoelectric conversion efficiency or solar-thermal conversion efficiency.
Thickness: 2MM,2.5MM,3MM,3.2MM, 3.5MM and 4.0MM mainly Size:2250*3500mm(annealed)/1219*1930mm(tempered)
ANTI-REFLECTIVE COATED SOLAR GLASS
The ultra-white rolled photovoltaic glass for solar photovoltaic modules is a kind of low-iron glass with ultra-white cloth pattern (textile) embossed on the glass surface. The light transmittance after tempering and coating can reach more than 93.7%. Mainly used in solar cell module packaging, it is an indispensable part of solar photovoltaic modules.
SPECIFICATIONS-Photovoltaic Glass
Back/ Base/Bottom/Front Solar Glass
TYPES:Customized Tempered Glass, Extra Clear Pattern Glass, AR Coated Glass
Thickness:1mm 1.1mm, 1.6mm,1.8mm,2mm, 2.5mm 3.2mm 4mm
Max. Size:2440*3660mm
Min. Size:100*100mm
Edges:Simple grinding edges, polished edges, customized edges
Application:Cover of photovoitaic modules or flat solar water collectors and also used as greenhouse Glass.
Quality-Control
1. The staff of VIRTUE GLASS are well trained, paying high attention to each procedure each piece of products with our increasing efforts.
2. Every process in production has quality control, Accurate size and meet the glass standards, glass particle size were promise. Using professional testing tools, which were certified by certification authority. The test data of each order is recorded.
3. Incoming Quality Control---In Process Quality Control Section----Process Quality Control------Final Quality Control--Out-going Quality Control
4.our products are well feedback by domestic and overseas markets.especially in Europe , America, south America and Middle east markets.
