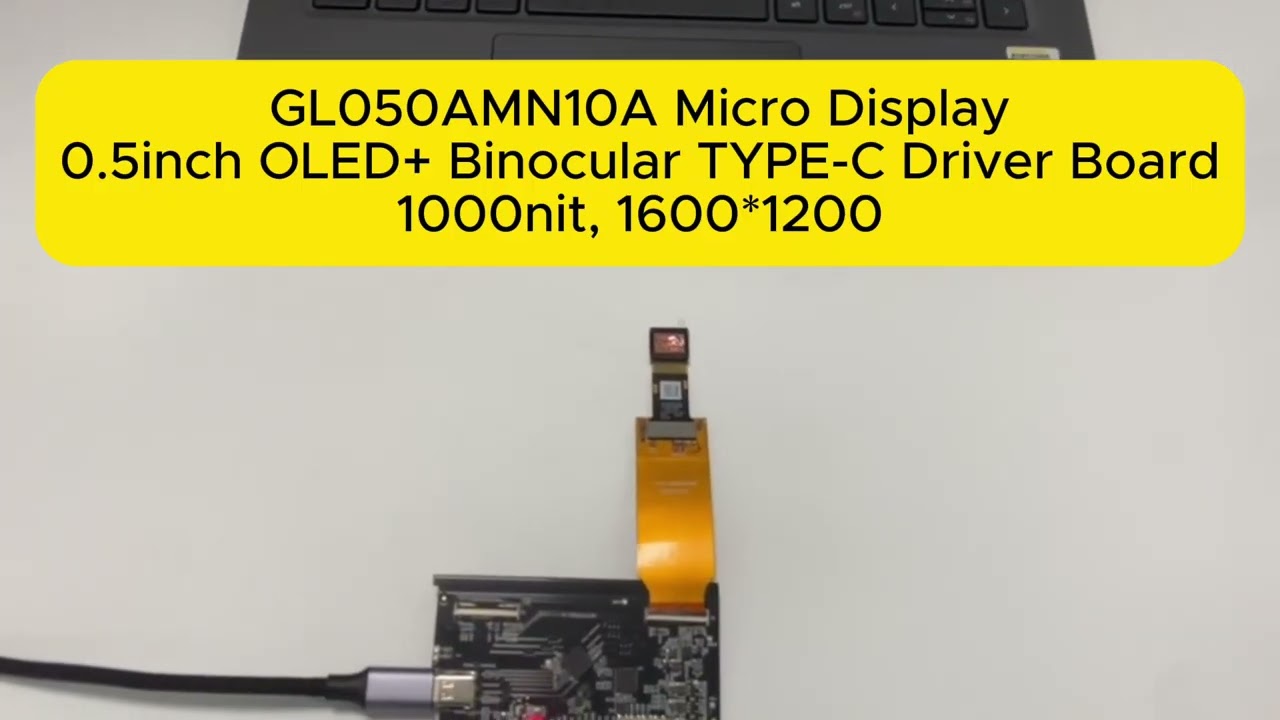

Скачать или смотреть 0.5inch Micro OLED Display 1600*1200 Color OLED Panel With TYPE-C Dual AMOLED Board For View Finders

Please contact [email protected] for the datasheet.
https://lcdscreenmfg.com/product/0-5i...
https://microoleddisplays.com/product...

MicroOLED displays offer high PPI (pixel density), high integration, and small size. This ensures they are easily portable, have good shock resistance, and have ultra-low power consumption. MicroOLED displays are mainly used in immersive and see-through applications such as augmented reality and virtual reality devices, telescopes, microscopes, and sights.

Product Description:
GL050AMN10A This display is a 0.5 inch diagonal, 1600(RGB) × 1200 dots active-matrix color OLED panel module based on single- crystal silicon transistors. This panel integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution. Applications: View finders, Head mounted displays, etc.

Product Features:
• 1600x1200 Real RGB Resolution
• Frame rate: 60Hz to 120Hz
• Normal operation supports full color mode: 16.7M colors (24-bit 8(R):8(G):8(B)) or 1.07B colors (30-bit 10(R):10(G):10(B))
• Interface
-- MIPI + I2C
-- MIPI DPHY v1.1 with 1 port (4 lanes, 1.0Gbps/Lane)
-- MIPI DSI v1.02 r11 Video mode
-- Support VESA-DSC v1.1 in-chip decoder (3:1 & 3.75:1 compression ratio)
-- Support scaling up x1.33 (1200x900 to 1600x1200) and x2 (800x600 to 1600x1200)
• Scan direction selection, up or down and right or left
• Orbit supported
• Wide range Brightness adjustment
• Temperature compensation

Product Application:
#virtualreality
#ar
#vr
#Headmounted displays
#viewfinder
#neareyeDisplays
#nightvisions
#fpv #fpvdrone
#gimbal
#thermalImages
